I am looking to replace a couple casement window latch/locks. There are no markings or numbers.
I can send a couple photos.
Casement Window Latch/Lock
Contractor from Vermont
Jun 10, 2024 8:26 am
9 Replies
Contractor from Vermont
Jun 10, 2024 8:37 am
Added 2 photos of the lock/handle mechanism. They are plastic with a steel arm that locks to the sash. Do you need a photo of the arm and dimensions of screw pattern?
2 user uploaded images
Emily from SWISCO
Jun 12, 2024 1:06 pm
Hi there! I'm afraid the lock is too obscured by the window. Can you remove one and show us a few photos? That should help us determine if we have a comparable match.
Contractor from Vermont
Jun 12, 2024 2:41 pm
You can't see the handle? Or do you need to see the latch/arm when it's engaged??
Emily from SWISCO
Jun 12, 2024 2:46 pm
I can see the handle itself, yes. I would need to see the latching part that locks the window to narrow down your options.
Contractor from Vermont
Jun 14, 2024 8:30 am

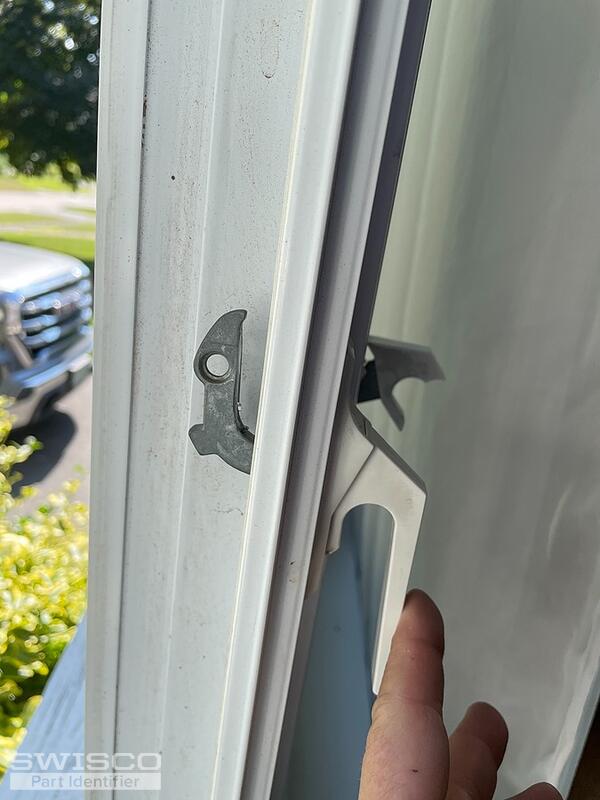

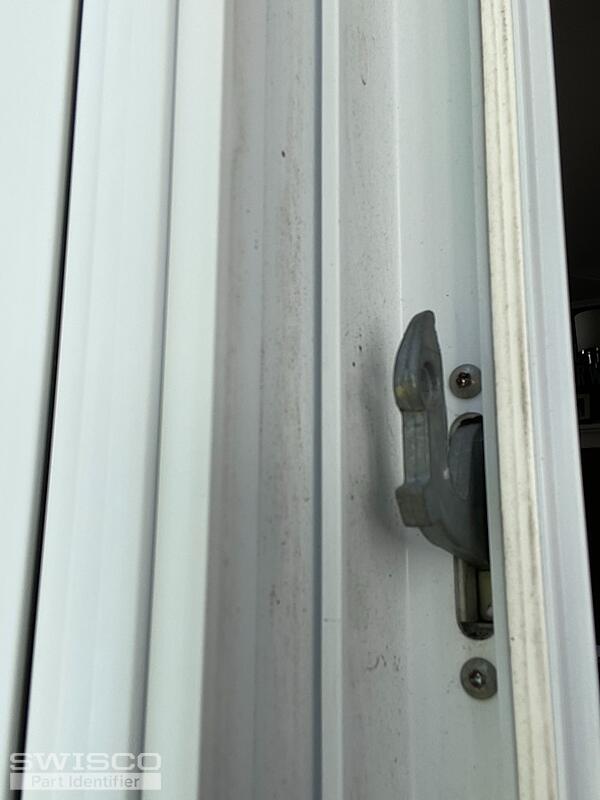

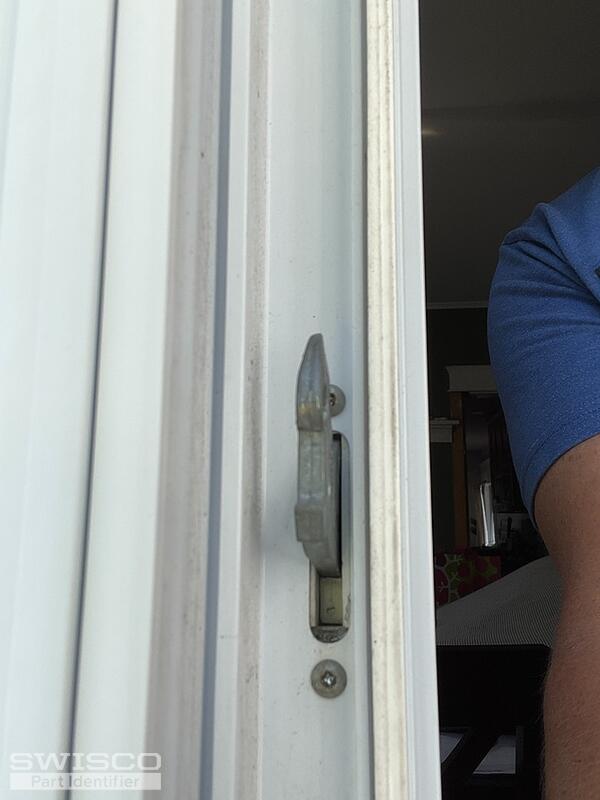

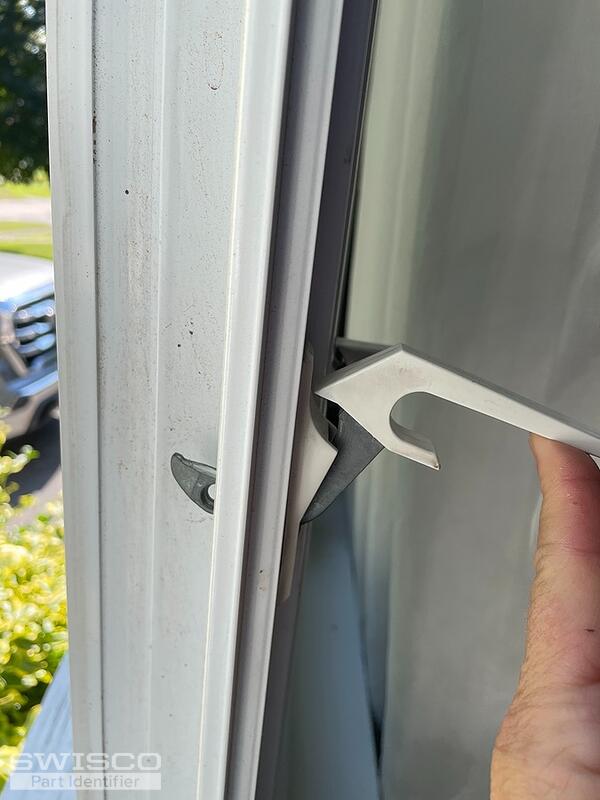

New photos attached.
5 user uploaded images
Contractor from Vermont
Jun 14, 2024 8:30 am
Screws are 2-1/2" center to center.
Emily from SWISCO
Jun 14, 2024 8:52 am
Thank you! This reminds me of the 38-036 which also measures 2-1/2" on the installation hole centers. Take a look and see what you think.
Alternate view of 38-036
Contractor from Vermont
Jun 14, 2024 9:05 am
That's the one that I was thinking would work.
