Casement Window Parts

Handy Person from California

Oct 28, 2019 2:13 pm

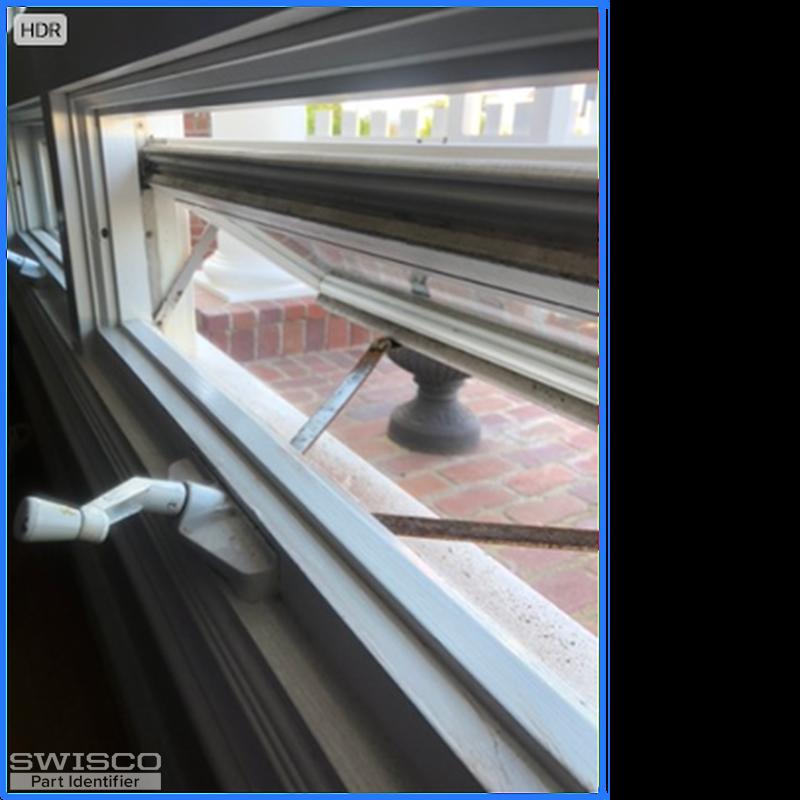

I am looking for the casement hardware for these windows (I believe it is K and K hardware). Do you carry this piece? I couldn't read any numbers due to rust.
Thanks

3 user uploaded images

4 Replies

Bob from SWISCO

Nov 1, 2019 10:03 am

Thanks for writing in. This looks like an awning window operator. I'm pretty confident we can replace this for you, but I need a clearer picture of the operator, either out of the window or with the window open, so I can clearly see the body as well as the link arms. From there we'll do our best to find a replacement.

Handy Person from California

Nov 4, 2019 3:15 pm

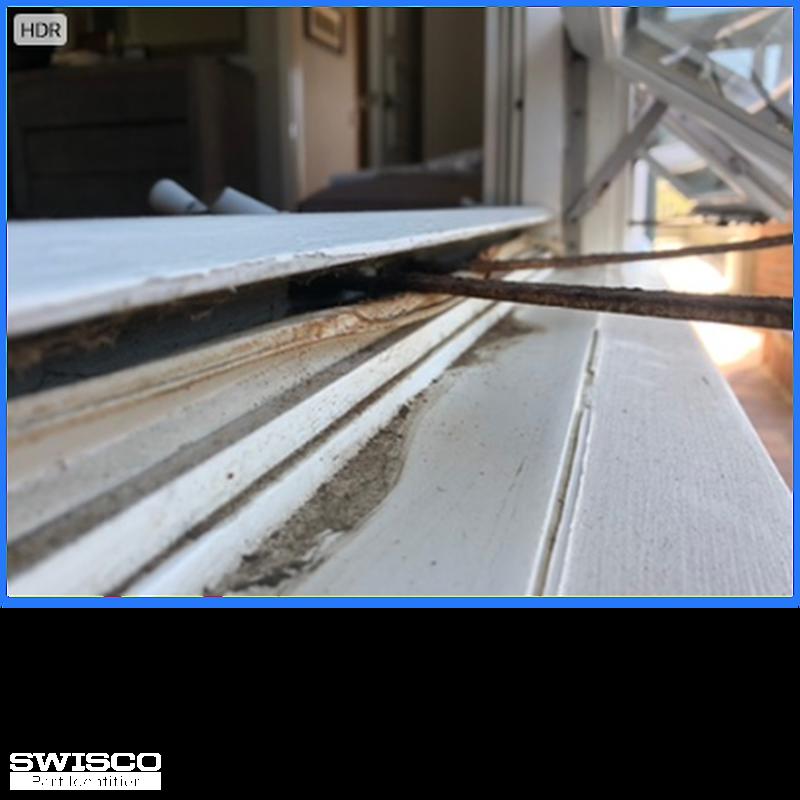

Do these pictures help?
The arms are about 11" each and the crank seems to be integrated with the cover (the cover does not come off the crank).

2 user uploaded images

Tom from SWISCO

Nov 5, 2019 10:15 am

Hello! Start by looking at our 39-348. These are designed to connect to a shoe stud like our 36-078; I can't tell for sure if that's what you have on your window, but I think it's a strong possibility. Let me know what you think.
