Casement Window Parts Needed

Question

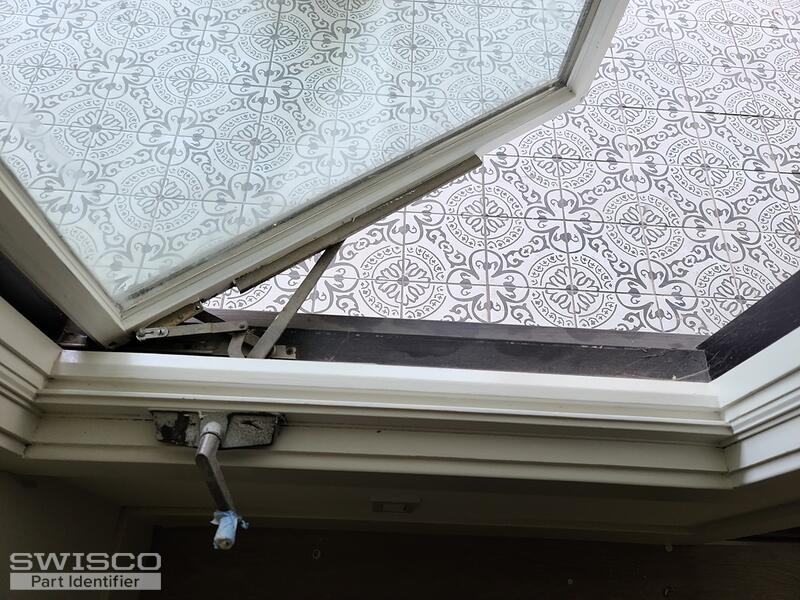

I need casement window parts identified (operators/tracks/hinges). I need to know how to tell the difference between left and right-handed operators.

Casey · Accepted Answer

Hello,

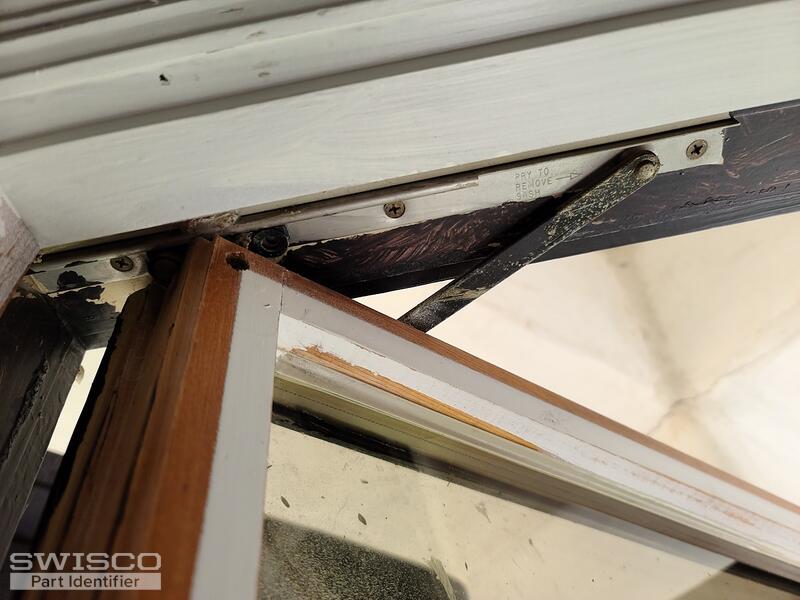

Your hinges look like a match to our 36-048. As for the operators, you can start by comparing the dimensions of the 39-031 and 39-032 Entrygard operators to yours, paying close attention to the shorter link arm. You'll notice that if you remove the cover, the gears are either on the left or right side of the handle, which is how you'll choose the correct-handed operator for each window. Thank you!
