Home Owner from Michigan

May 6, 2023 4:46 pm

Hello, We have numerous casement windows that the crank handles are numbered 45054. The base is missing the male part to put the handle into. I have a picture of the base mechanism, but cannot attach it here.
I do not see a number on the base, but it says Truth on the right side and the gears are on the left side. Any ideas of what we should order?
Thank you!

6 Replies

Emily from SWISCO

May 8, 2023 2:34 pm

Hello there!

I'm afraid I'm not sure what you're describing. I would need to see photos of the part in question in order to help. If you're having trouble uploading to the part identifier, you can email your photos to help@swisco.com with reference number D288097.

Home Owner from Michigan

May 9, 2023 7:48 am

Hello,

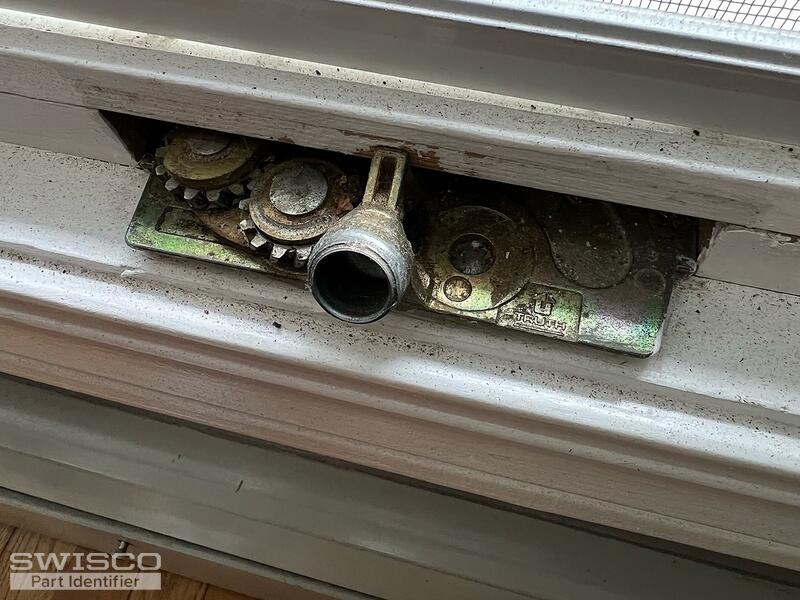

Here is the photo for my question I sent in on the website, reference number D288097. I am wondering what part I need to order so we can open the window?

Thank you,
Molly

1 user uploaded image

Emily from SWISCO

May 9, 2023 8:01 am

Thank you for the photo, Molly. We may have a match for this operator but I'll need more information so that I can identify it. Can you show us a photo of your operator with the window open so that the arms that move the sash are fully visible?

Home Owner from Michigan

May 29, 2023 9:04 am

The part with the window open is L30841.
The other window is R30841.
The third window is 30841L.

Thank you for your assistance.

Emily from SWISCO

May 30, 2023 8:18 am

The codes you've given have been associated with the 39-031 and 39-032 operators in the past but this is by no means a guarantee. I recommend you review the specifications for these parts to see how they compare with yours. Let us know if you notice any discrepancies and we can work from there!

Dimensions for 39-031

Dimensions for 39-032
