Casement Window hinge and crank replacement

Question

We are needing to replace the hinge operator and crank for the window in the photo.  The actual window is the exact same window and operator but the crank is on the left side.  We can't open the window since it is broken, so I sent a photo of the identical window with a right side crank.  I've looked everywhere, but I can not find an operator that looks exactly like what we have.  Can you help?

Casey · Accepted Answer

Hello,

Your photos resemble the old style version of the 39-092 and 39-091 Roto operators. We also carry the 39-230 handle and the 39-224 folding handle. Unfortunately, the link arms are no longer available, so you would need to reuse the originals if possible. Take a look at these operators, along with the related videos.

Full view with measurements

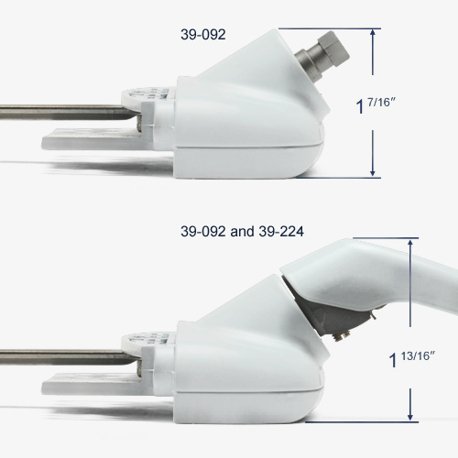

Side profile view with measurements

If you need new hinges as well, we do not carry exact replacements, but the 36-048 are often recommended to replace these Roto hinges. As long as the 10" long base matches yours and you replace the top and bottom hinges, you should be good to go. Thanks for posting!

Detail of 36-048
