Hi,

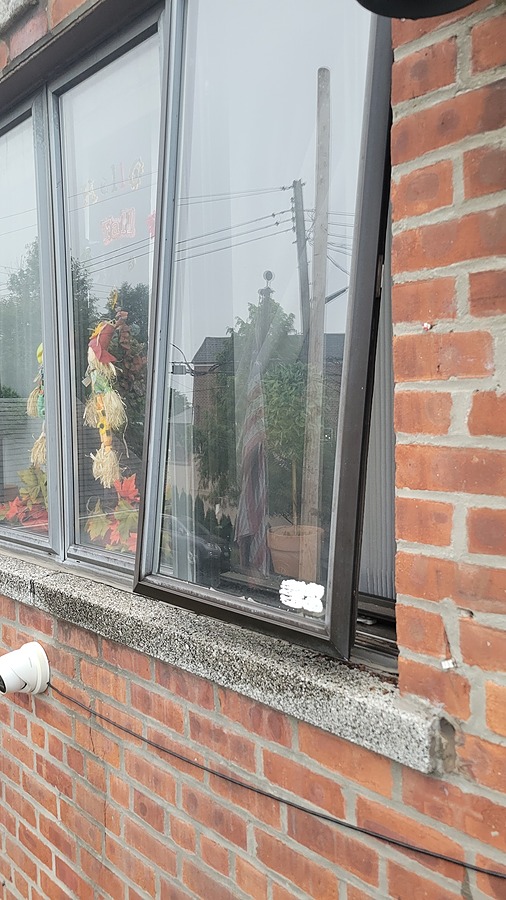

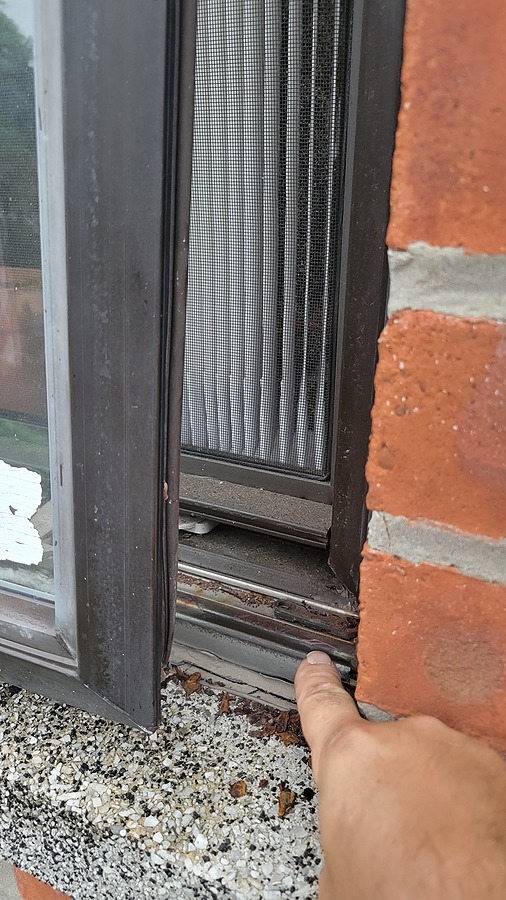

I attached two photos of a bracket that needs to be replaced due to worn/corrosion. I am not sure what you call it. This bracket holds up the casement window when you open it. The photo shows a closeup of the window when its open and it is not sitting on the bracket. The window is hanging on thin air. Can you give me a part number?
Thanks
Chris
Casement Window parts
Home Owner from NY
Sep 20, 2026 5:15 pm
5 user uploaded images
2 Replies
Jasmine from SWISCO
Sep 23, 2026 12:44 pm
Hi Chris,
The bracket you are inquiring about is part of the casement window hinge. These aren't sold separately from the hinges, so you'll need to replace the entire set (both the top and bottom hinges).
I believe our 36-004-10 10" Stainless Steel 2 Bar Hinge Set will work for the repair. To confirm, you'll need to carefully look over the specifications and compare them. Please let me know if the length of your track is not 10".
There is a tutorial tagged below this thread with instructions on how to replace the set.
DImensions for 36-004-10
