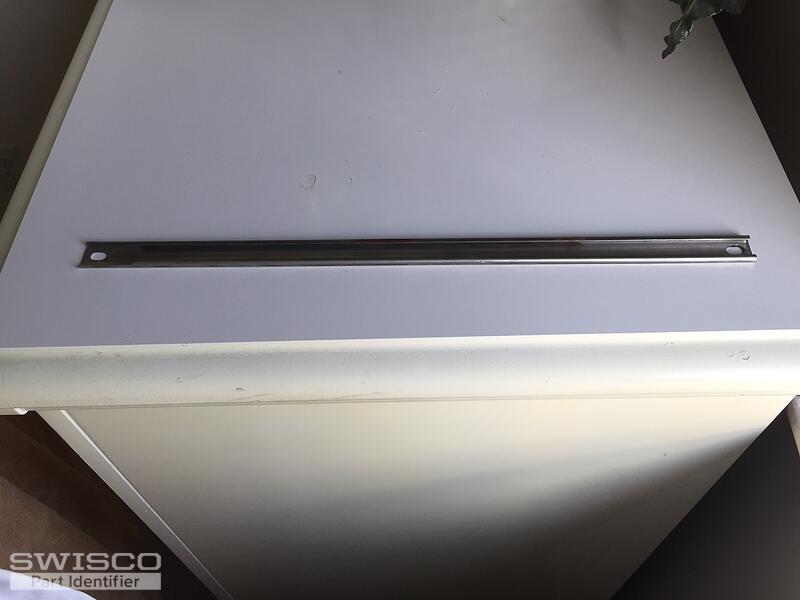

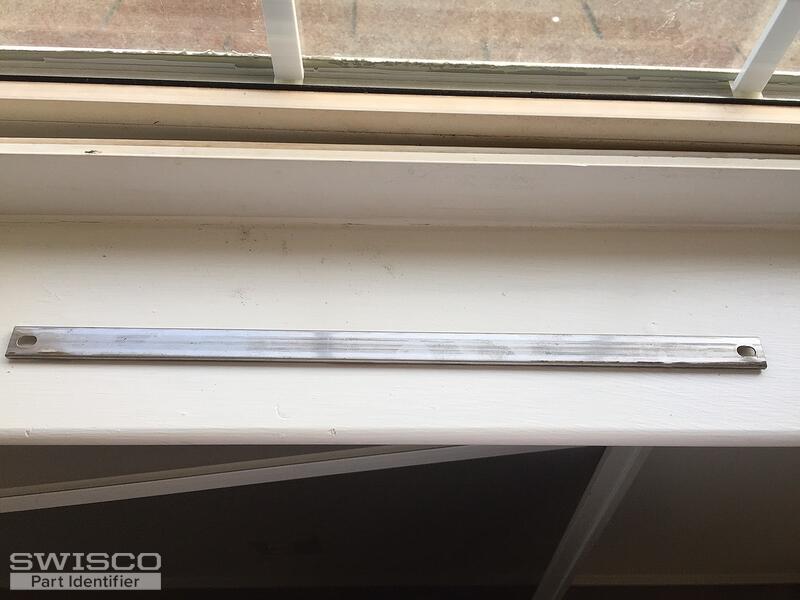

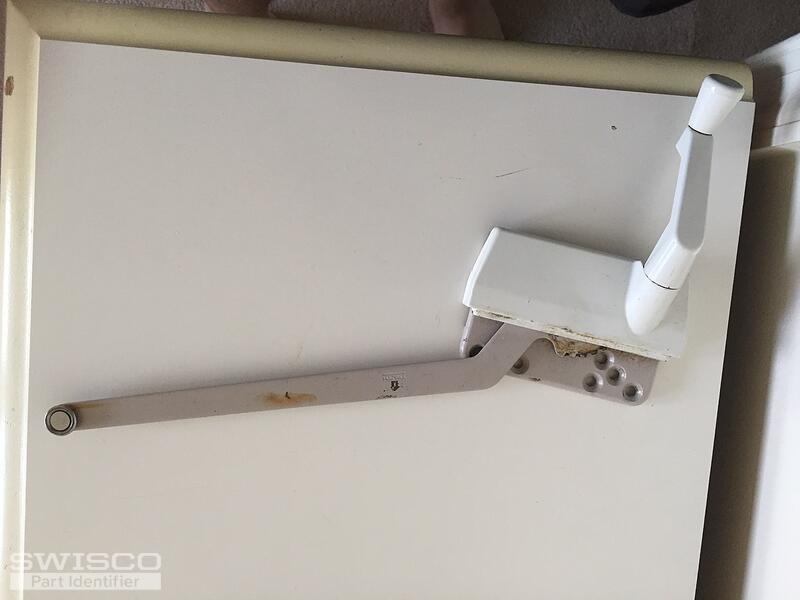

Length of arm is 9 1/2 inches. Length of track is 13 3/4 inches.
Casey from SWISCO responded:
October 5, 2018
Hello,

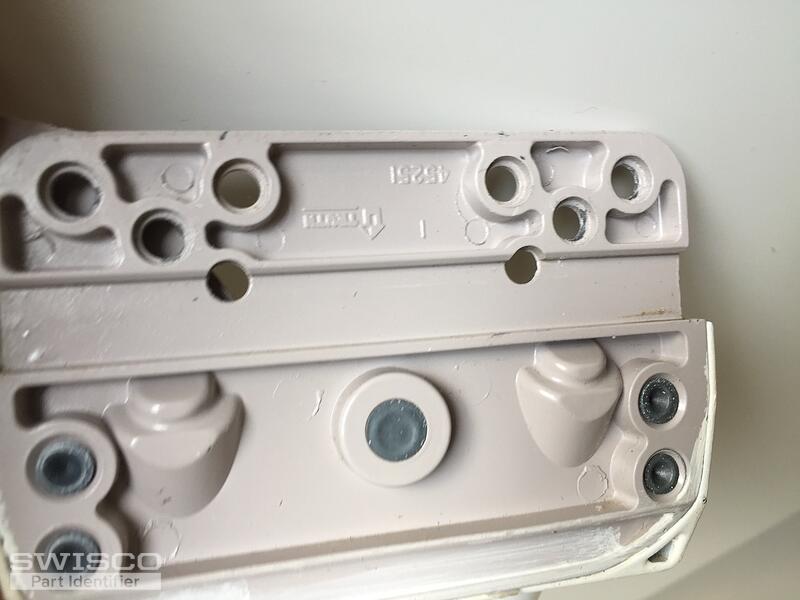

Your pictures look like our 39-366 operator and 39-504 channel guide. Take a look at the dimensions on our product pages and let us know if you need anything else. Thank you!
