Casement of my window

Quick Learner from Brooklyn
I need replace that casement is not working properly
3 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

The arm of your operator resembles the 39-430 but the base and mounting plate are a different style, which would most likely prevent you from installing it. Your operator design looks like a cross between a Truth operator body with a Roto arm and clip.

That being said, take a look at the 39-450 Encore Single Arm Operator along with the 39-528 Casement Track and the 39-529 Truth Hardware Track Slider. The opposite-handed version of this operator is the 39-451.

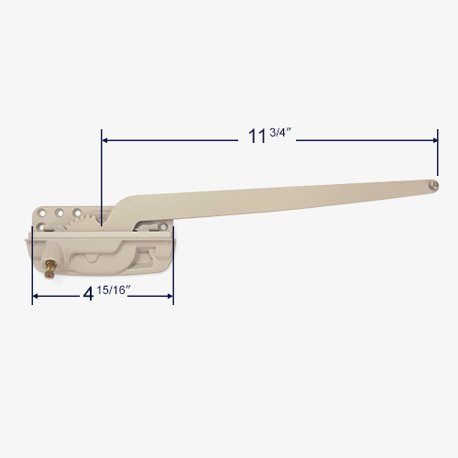

Detail of 39-450
Detail of 39-450

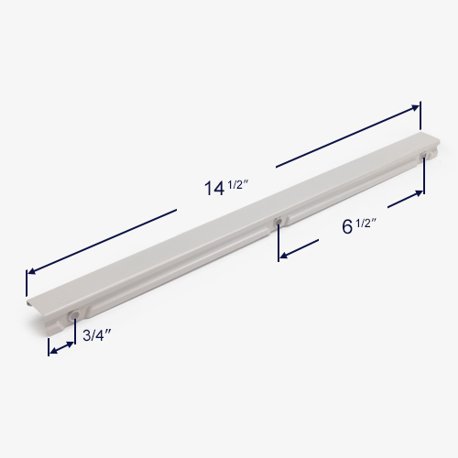

Alternate view of 39-528
Alternate view of 39-528

Alternate image for 39-529
Alternate image for 39-529

Alternate view with measurements
Alternate view with measurements

The compatible handle and cover sets are the 39-376 folding set but we also offer the 39-452 nonfolding option. We can't make any guarantees but review the specifications of these parts to see if they could be adapted to work for your application. Thanks for posting.
