Casement operator

A quick learner from Crystal Lake says:
October 9, 2017

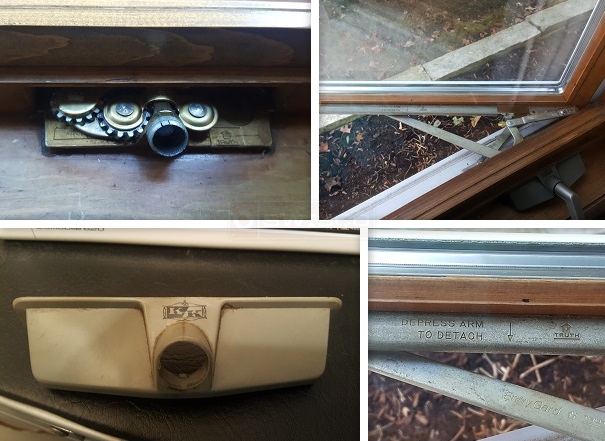

When we purchased out home one of the great features was the windows. All are Casement. Two of the window operators broke within a month of each other. I am not sure how to measure up the replacements. I have a number listing on the part that is the gear and it reads 3070. I would need a left and a right sides operators. The cover that was on the operator is older with the K K insignia on it. Also I have a window that the seal is broken. If you could please instruct on how to select the right operator please do
Truth entryguard operator
Profile picture of Tom
Tom from SWISCO responded:
October 13, 2017
First off, I made a list with many of the parts you need on the right. Make sure the operator matches yours in size, and see which parts you need to replace. As for the weatherseal, we need to see the cross section of the seal. Cut a piece off and show us this angle:
Example illustration of a cross section.
Example illustration of a cross section.
EntryGard Dual Arm Operator
EntryGard Dual Arm Operator
39-031
$29.70
EntryGard Dual Arm Operator
EntryGard Dual Arm Operator
39-032
$29.70
Truth Hardware Operator Cover
Truth Hardware Operator Cover
39-107
$3.30
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
