Casement operators

A home owner from House in Kelowna BC says:
May 3, 2023

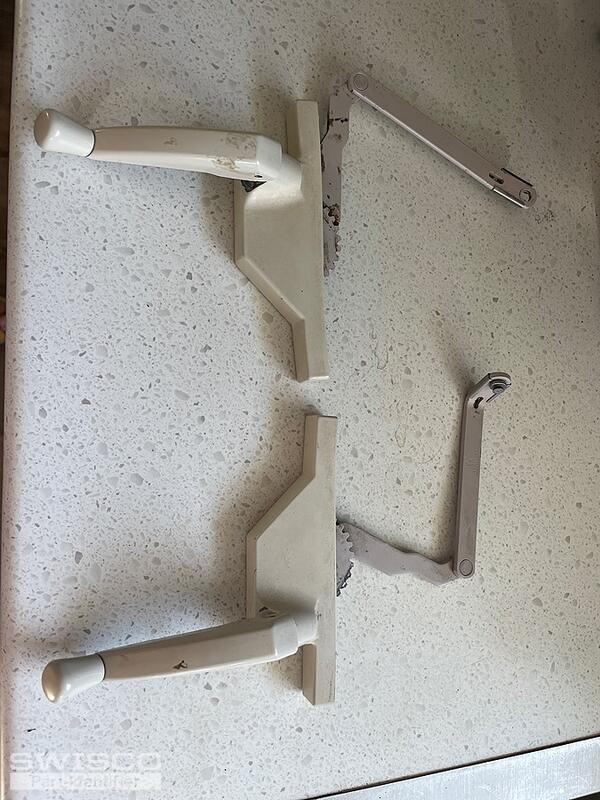

30614 30893
30615 30894
I need one each , thank you
Thumbnail of the uploaded file named image.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:
May 4, 2023

Thanks for writing in! Your casement window operators look very similar to our 39-187 and its opposite handed version, part 39-188. Carefully review the dimensions below and compare them to your existing operators to determine if these are the right fit. They are available in beige.

Dimensions for 39-187
Dimensions for 39-187

These operators are compatible with the 39-114L crank handle.
A home owner from House in Kelowna BC says:
July 17, 2023

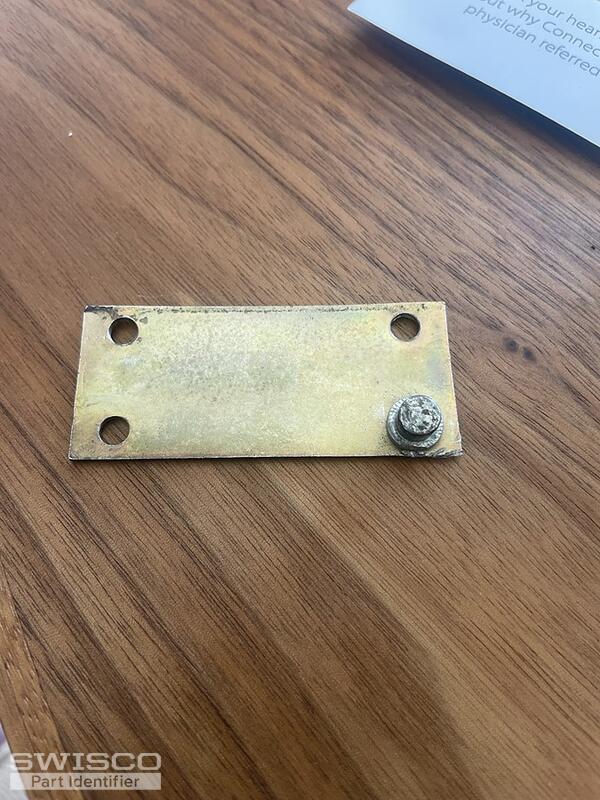

The window cranks I ordered are the correct ones, thanks for the help, however we now need the plates, left and right...window cranks 30614 30893 & 30615 30894
measurement of plate is Width 2.7 cm and length is 6.2 cm

Thumbnail of the uploaded file named window plate.jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:
July 18, 2023

I'm glad to hear that the casement operators you ordered were the ones you needed. The compatible stud brackets are the 39-514 and the opposite handed version part 39-513. Take a look over the dimensions to determine if this is the replacement you'll need.

Dimensions for 39-514
Dimensions for 39-514
Sash Dyad Crank, 5"
Sash Dyad Crank, 5"
39-187
$37.10
Sash Dyad Crank, 5"
Sash Dyad Crank, 5"
39-188
$37.10
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Stud Bracket
Stud Bracket
39-514
$4.35
Stud Bracket
Stud Bracket
39-513
$4.35
