Casement parts

A quick learner from Pa/nj says:
I have a neighbor who has silver line windows you will see the model number and the tag and the photo I sent looking for new crank assemblies the old ones appear to be blown out
Thumbnail of the uploaded file named IMG_20210921_155439280_HDR.jpg
Thumbnail of the uploaded file named IMG_20210921_155519442.jpg
Thumbnail of the uploaded file named IMG_20210924_233254517.jpg
Profile picture of Bob
Bob from SWISCO responded:

This looks a lot like our 39-226, which has a 5/16" pro hex drive. Please compare and see if you think this matches up. Note however if the entire operator has worn down, the only reliable way to match a replacement is to show us the actual assembly, including the link arm(s). We'll do our best to find what you need from there.

A quick learner from Pa/nj says:
Here is the other photos u requested of the link arms and you already have the inside assembly picture I'm in a bit of a hurry to get with winter coming ty for everything you can do if you have something let's get it ordered as soon as you can

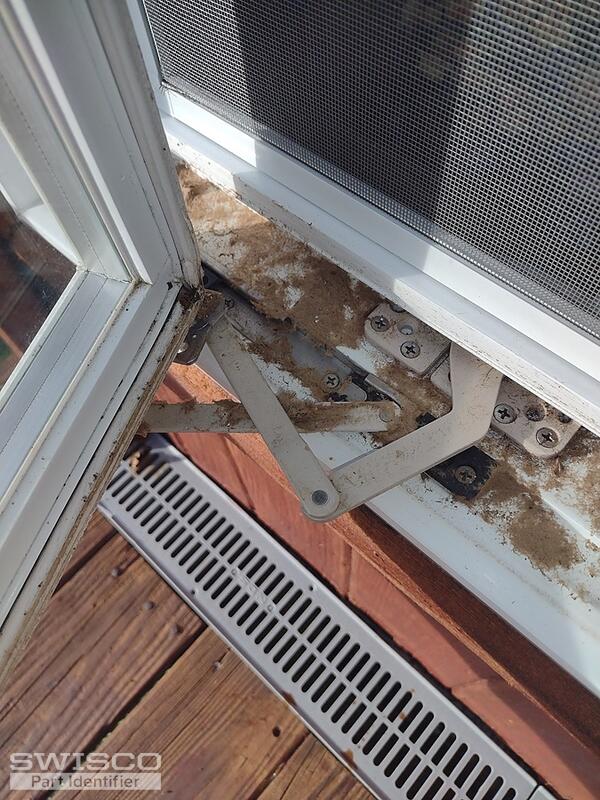

Thumbnail of the uploaded file named IMG_20211014_164930698.jpg

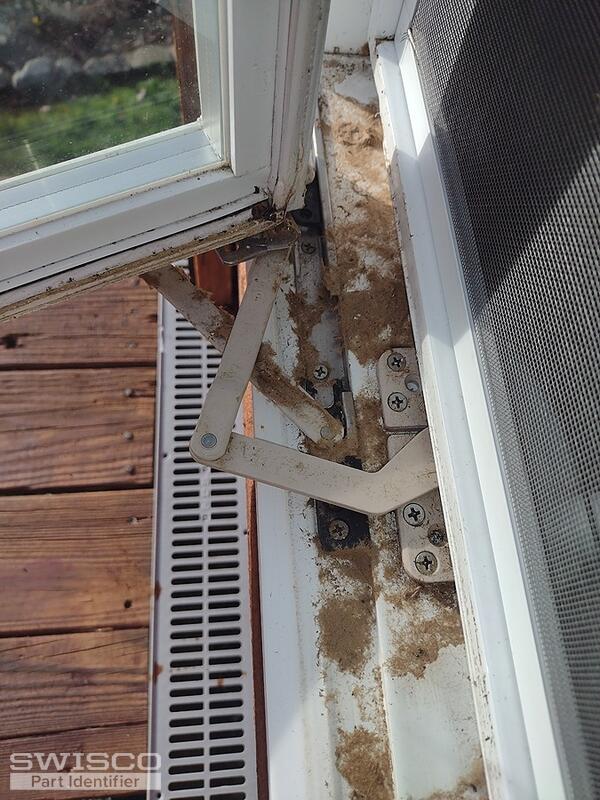

Thumbnail of the uploaded file named IMG_20211014_164936626.jpg
Profile picture of Bob
Bob from SWISCO responded:

This appear to be our 39-329 and 39-330 ROTO operators. Please compare to confirm. For a handle that works with these operators, see the 39-232

A quick learner from Pa/nj says:

So does picture show a left or right hand system

Profile picture of Bob
Bob from SWISCO responded:

The LH 39-329 has the spline and handle offset to the left-hand side of the operator body. That matches what is in your first batch of photos. Therefore I believe you need the 39-329
