Casement window

Quick Learner from Minneapolis
Oct 11, 2023 12:43 pm

Apologies for lack of proper verbiage:

-Lock slider mechanism has a couple plastic pieces broken off, needing replacement.

-Window crank works fine

-10" Slider on the bottom labeled 'A' is completely rusted and needs replacement

-Possible pin needed to reattach crank operator to window

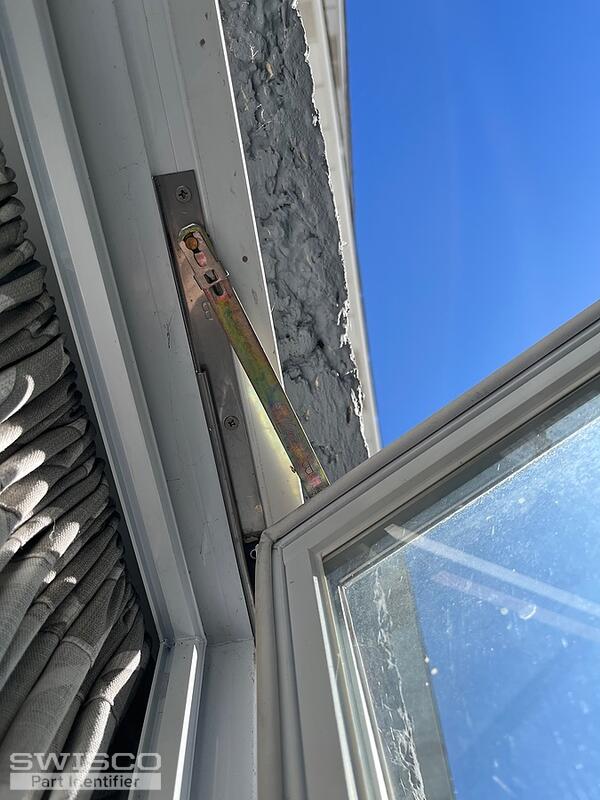

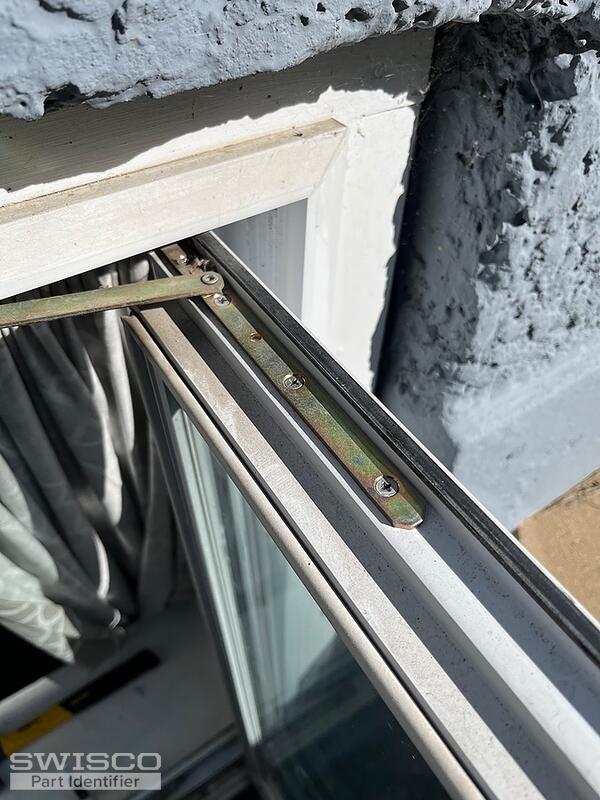

IMG_1873 IMG_1872 IMG_1871 IMG_1869 IMG_1868
5 user uploaded images
1 Replies
+ Add a Comment
Emily
Emily from SWISCO
Oct 11, 2023 3:18 pm
SWISCO
EXPERT

Thanks for reaching out to us! It sounds like you need a new hinge and stud bracket. I recommend you have a look at the 36-048 as well as the 39-513 and 39-514. Look over the specifications for these parts and see what you think. Note that we recommend replacing the top and bottom hinges at the same time.

+ Add a Comment
Products and resources found in this discussion
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
Stud Bracket
Stud Bracket
39-513
$4.35
Stud Bracket
Stud Bracket
39-514
$4.35
Connecting a casement window operator to stud bracket
Connecting a casement window operator to stud bracket
VIDEO
WATCH >
How to Replace a 2-Bar Hinge Set on a Casement Window
How to Replace a 2-Bar Hinge Set on a Casement Window
VIDEO
WATCH >
