Casement window bottom track needed

Question

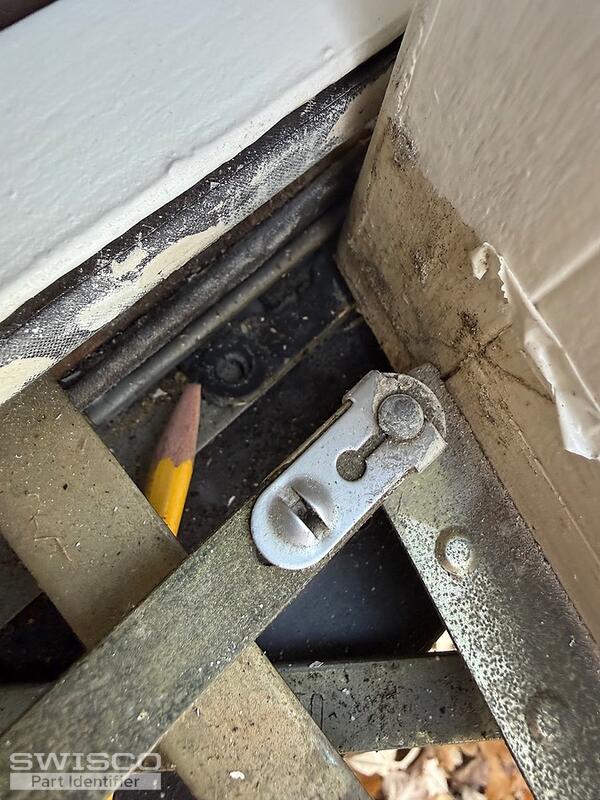

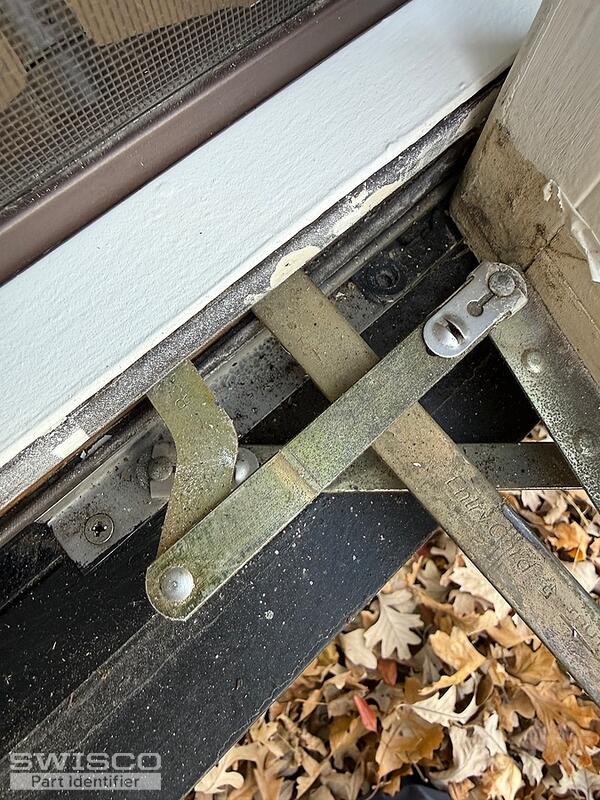

I have a casement window that has no track on the bottom nor the part that attaches to the window that would ride in the track and keep the window close to the opening while it slides back-and-forth as the window opens or closes. In general, the window parts are truth/EMCO and a number of parts I purchased from you have fit these windows. Please help me identify all the parts I need to purchase. Thank you

Casey · Accepted Answer

Hello,

It sounds like you need new hinges. Take a look at the 36-048 set. These should work as long as the 10" base that attaches to the sill matches yours.

Detail of 36-048

Your operator resembles the 39-031 and 39-032 EntryGard operators. Take a look and confirm the measurements below match yours. If so, see the 39-505 side-mounted track, as well as the 39-516 and 39-517 for the shorter link arms. We also offer the 39-107FK handle and cover kit for both operators. Thanks for posting!

Dimensions for 39-032
