Casement window crank

Start a new Discussion

Home Owner from Miami Florida

Mar 28, 2018 11:23 am

I am looking to replace 3 casement window cranks. They all open from left side.

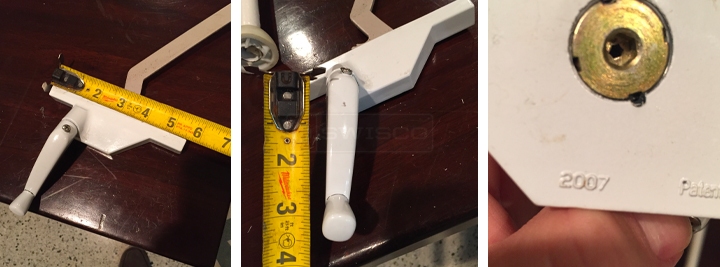

User submitted photos of a window operator.

8 Replies

Tom from SWISCO

Mar 30, 2018 2:56 pm

I'm pretty sure we can replace this. However, there are a couple different possibilities. Before we recommend anything, can you show me a picture of the end of the arm? There should be a bearing or wheel at the end. It could be a few different styles, so seeing it will confirm for me what you need. Can you also tell me roughly how long the arm is? Thank you!

Quick Learner from Miami, FL

Mar 31, 2018 12:52 pm

Lets try..

Tom from SWISCO

Apr 2, 2018 12:21 pm

I'm sorry, I don't understand. Were you able to get me those photos? Once you've taken them, you can upload them right here for us to see.

Quick Learner

Apr 2, 2018 1:51 pm

lets see if this helps . see attached

1 user uploaded image

Tom from SWISCO

Apr 3, 2018 2:12 pm

Perfect! See our 39-139 operator, this looks like a good match. The only difference is that you have reverse mounted installation screws. With that in mind, you will also need our 33-205 threaded nut to reverse install the installation screws. I've installed these with the help of a bench vise; you just press them into the holes at the front of the operator base.

Quick Learner

Apr 3, 2018 2:27 pm

Excellent. Thank you so much. I will order 3 sets. What's your return policy? (In case it doesn't fit)

Also, do I need new screws or use the ones I already have?

Tom from SWISCO

Apr 4, 2018 12:06 pm

Awesome, thank you! We appreciate your business. You can see our return policy here.

You should be able to reuse your old screws with no problem.
