Casement window crank barrel, cover & handle

Home Owner from 06107

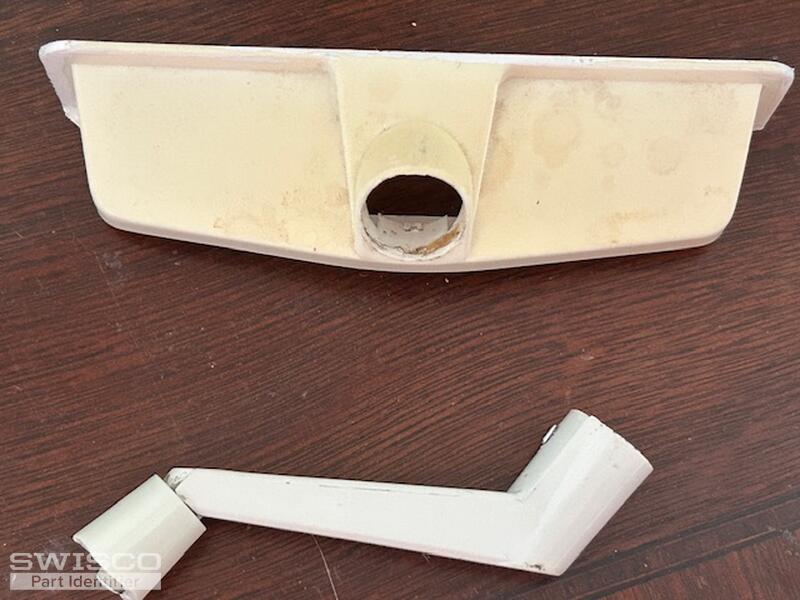

My window is missing the piece that connects the handle to the cogs/gears on the opener. I have the old cover but it is badly discolored. I also have the old handle but it is damaged. I was able to slide a piece of half inch dowel into the barrel opening up the gear cogs.

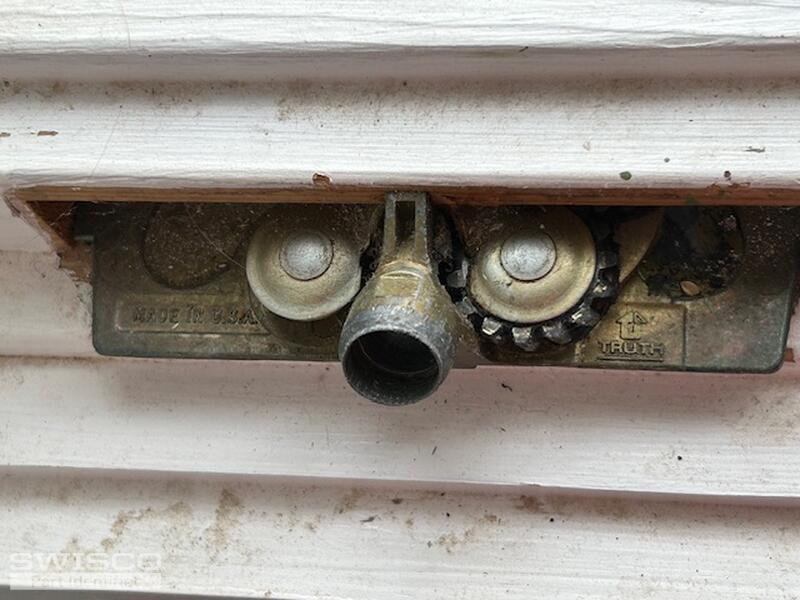

The hardware has the word "truth" stamped on it, as well as "Entry Guard."

The window opening is approx. 21" x 41 ".

I need to replace the part that connects the handle to the cogs, and I would also like to replace the handle and plastic cover if possible.

Many thanks, Terry

5 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there Terry.

Thanks for reaching out to us. You'll need a new operator since the worm gear came out with the handle. Based on these photos, I wonder if this could be the 39-032 or 39-156. Review the specifications and see which one matches up best with your old assembly.

For a new handle and cover, see the 39-114L and 39-107 which are sold separately.

Dimensions for 39-032
Dimensions for 39-032

Dimensions for 39-156
Dimensions for 39-156

Home Owner from 06107

Thanks for your reply, Emily. I ordered the 39-032 plus a handle and cover. I think removing the cap molding will be tricky and that I'll have to use a prybar from the outside. Fingers crossed I won't screw it up. I'll look forward to receiving the parts.

Thank you again, Terry

Emily
Emily from SWISCO
SWISCO
Expert

I'm happy to help, Terry! We also have a tutorial video that will go over how to remove the wooden sill. I'll post that below.

Good luck with the repair!
