Casement window crank mechanism parts for condo

A landlord from Dana Point, CA says:

March 4, 2019

Trying to find replacement parts for this crank mechanism. The main problem is that the arms drop out of the track.

Thumbnail of the uploaded file named IMG_0700.jpg

Thumbnail of the uploaded file named IMG_0701.jpg

Thumbnail of the uploaded file named IMG_0702.jpg

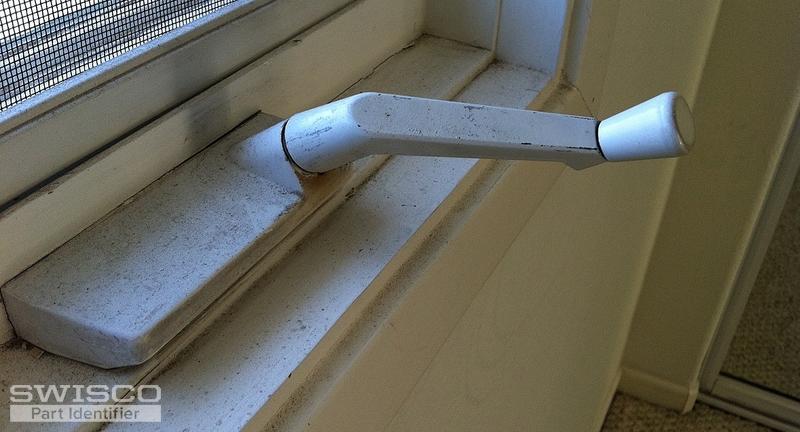

Thumbnail of the uploaded file named IMG_0824 (1).jpg

Dave Sr. from SWISCO responded:

March 7, 2019

Greetings -

In the past, when I had trouble with the operator bearing staying in the track, I would just reinstall the track lower on the sash. Another easier option is to bend the casement arm up a little. Just bend it a little touch at a time until you get the bearing where you want it. Also, lubricate the track with some silicone spray.

11-3/8" EntryGard Track, 4 Hole

39-505

$3.70

11-3/8" Casement Operator Track, 3 Hole

39-533

$2.95

Casement Window Operator, 13-1/2" Arm

39-013

$20.70

Casement Window Operator, 13-1/2" Arm

39-014

$20.70

Ellipse Style Single Arm Operator, 9-1/2"

39-027E

$20.70

Ellipse Style Single Arm Operator, 9-1/2"

39-028E

$20.70
