Casement window crank and mechanism

Start a new Discussion

Handy Person from Queens New York

Apr 23, 2026 11:25 am

This is an old Marvin Window casement window. Is the part available or a part that can be substituted

3 user uploaded images

4 Replies

Jasmine from SWISCO

Apr 28, 2026 10:02 am

Hey there,

Thanks for reaching out! Your window operator has become stripped. That said, you'll need to replace the entire operator to repair the window.

I'm happy to recommend a replacement but I'll need to see a photo of the arm(s) and how the operator connects to the bottom of the swinging window sash.

Please let me know if you have any additional questions.

Quick Learner from Queens New York

May 5, 2026 11:55 am

Good morning Jasmine,

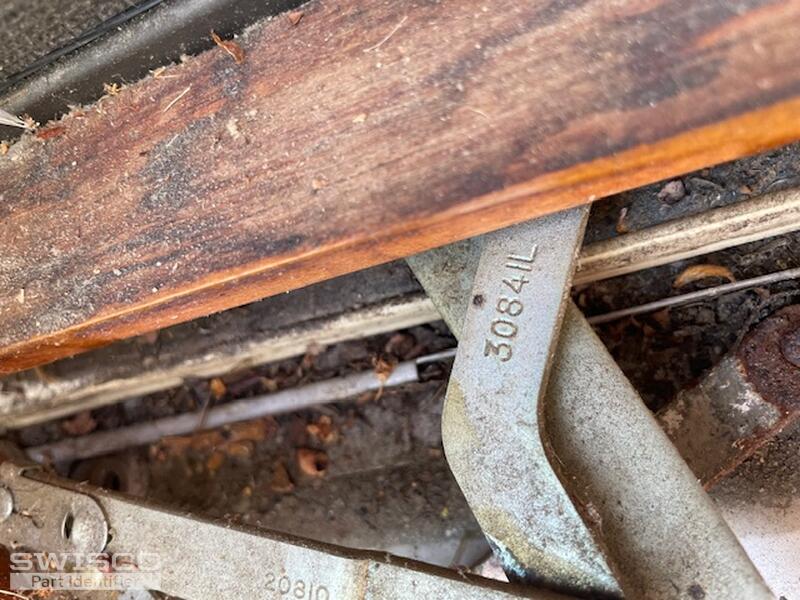

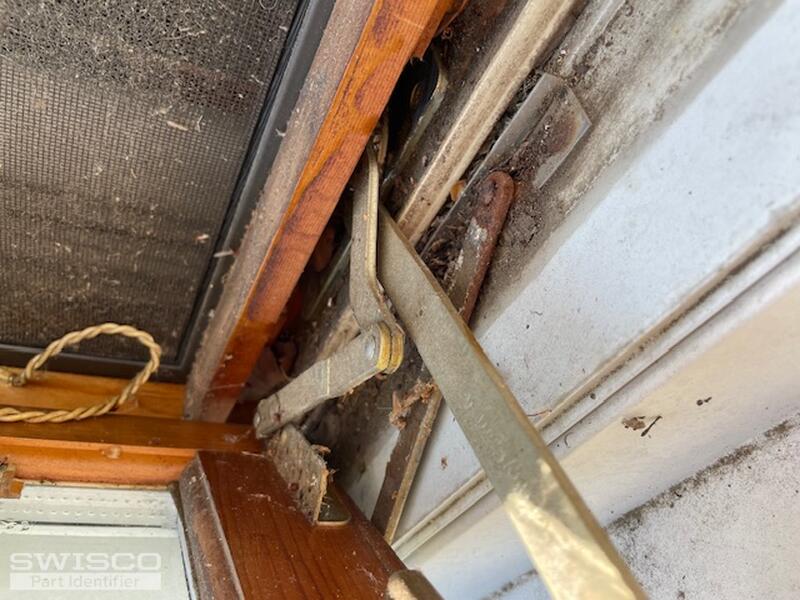

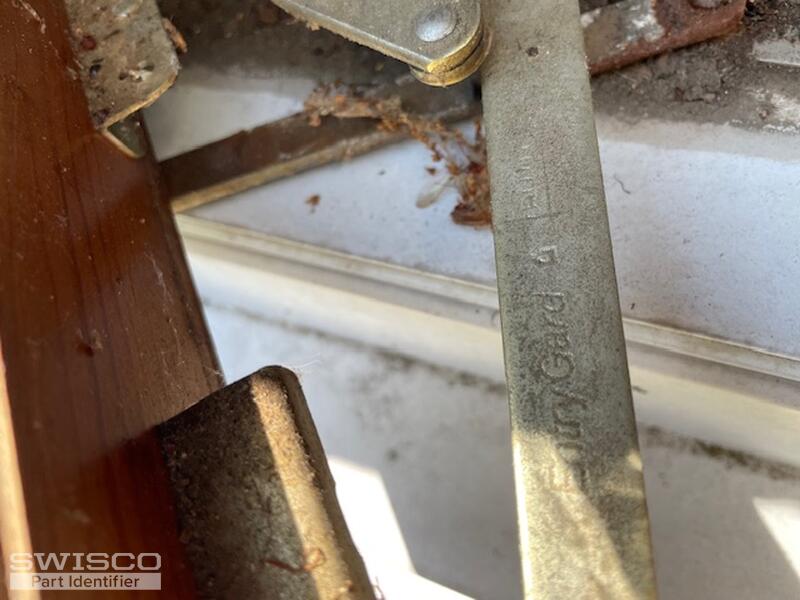

Here are the photos that I hope will help.
Thanks
Gary

3 user uploaded images

Jasmine from SWISCO

May 5, 2026 1:24 pm

Hi Gary,

Your window operator is a match for the 39-031 EntryGard Dual Arm Operator. I'm confident this should be the one you need but be sure to look over the dimensions and compare them.

The compatible hardware and accessories can be found below, along with the opposite version of the operator.

Dimensions for 39-031
