Casement window crankcase

Question

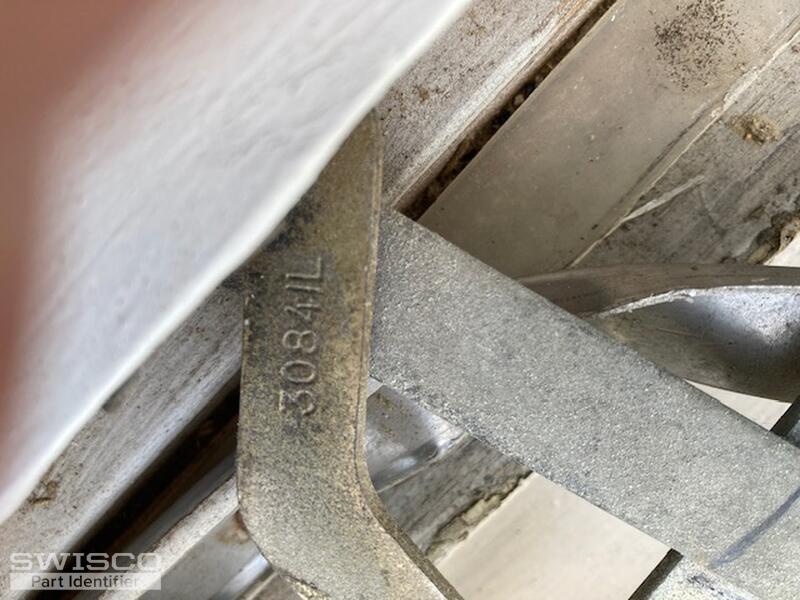

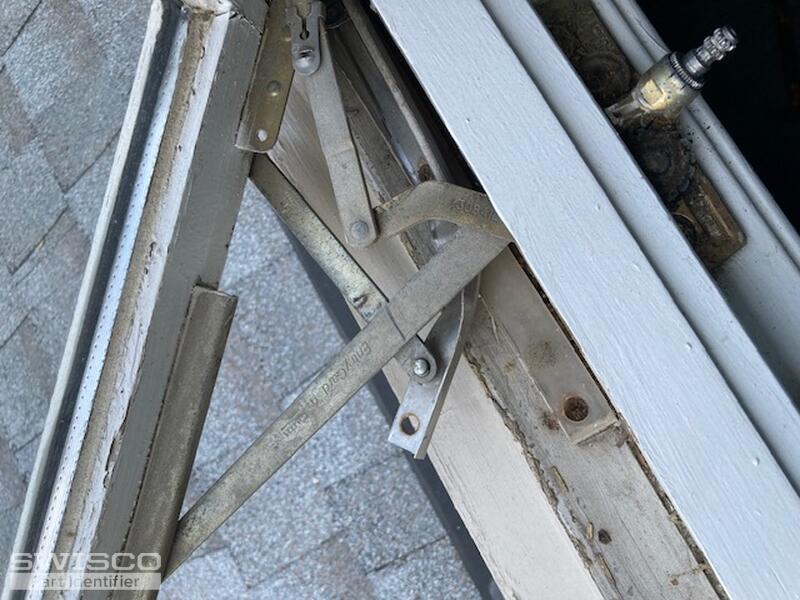

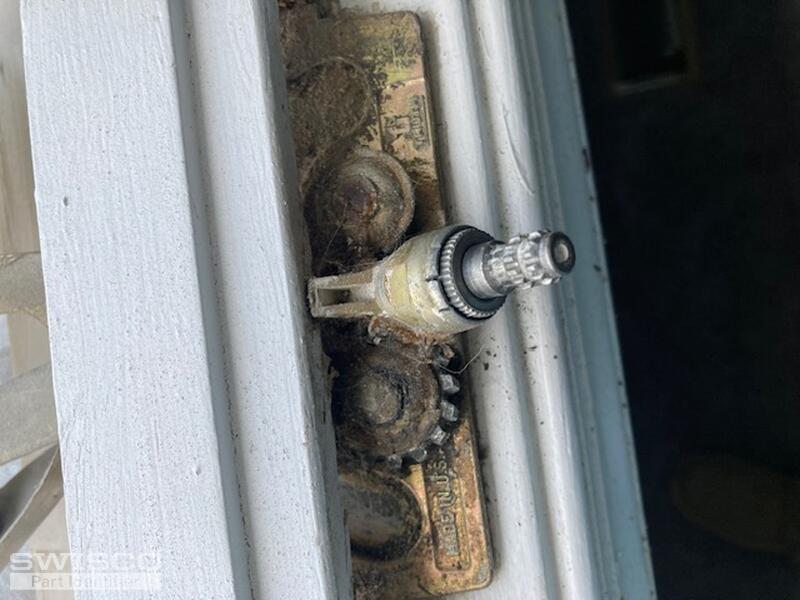

I have attached pictures of the casement window crankcase that needs to be replaced. It is an Entry Gard Truth 3084IL which I believe corresponds with Swisco part 39-031 and 39-032. I could not obtain an exact measurement for the long arm but it appears to be 10" and the short arm is 4 7/16". Will you be able to confirm this, please?

Casey · Accepted Answer

I agree that as long as the dimensions below match your assembly, the operator shown in your photos appears to match the 39-031 EntryGard operator. The 39-032 would be the opposite-handed version. We also offer the 39-107FK handle and cover kit used by both operators. Thank you!

Dimensions for 39-031
