Casement window hardware replacement

Question

I need to replace the entire hardware on this old window. It opens on the left but the hinges are on the right (looking out the window). The handles keep getting stripped. I can only find a marking on the handle cover plate it says 4 LH; and then another under one of the arms that looks like a WL.

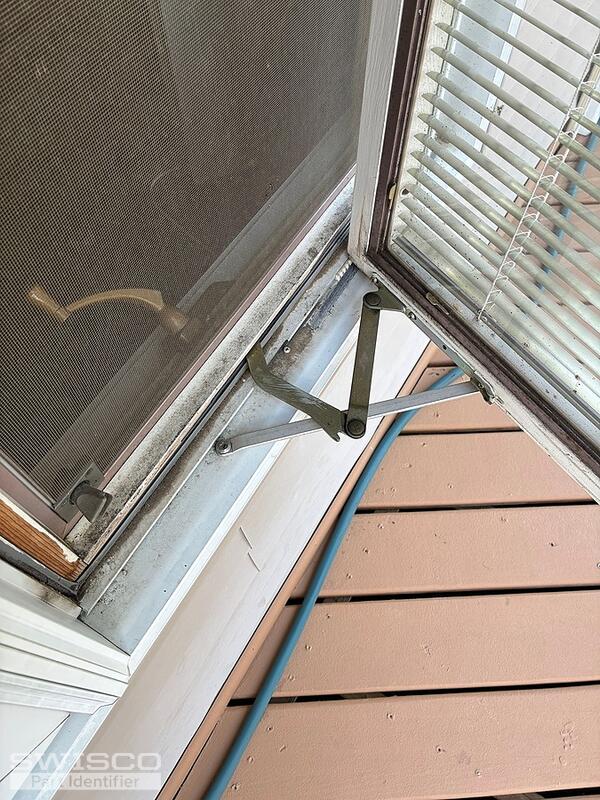

I have attached a picture (from the outside of the window, looking in) of the hardware that I actually need. The broken window is the exact same style and same hardware (except opposite hand). The broken window opens on the left but the hinges are on the rights. It's a casement window. 12". The hardware arm has cracked and broken off, but due to age, I will replace all of the hardware.

Jasmine · Accepted Answer

Thanks for posting! Your window operator reminds me of the 39-176 Sash Crank Operator. To confirm that this is the correct match, take a look over the specifications below. The compatible handle is the 39-109B.

Dimensions for 39-176

The window hinge can likely be replaced with the 39-396 LH 12-1/8" Hinge Arm Assembly. Although, to determine if this is the correct match. You'll need to double check the length.

The other lengths have been tagged below for your review as well.

Dimensions for 39-396
