Casement window hinge

Quick Learner from Grayslake, IL

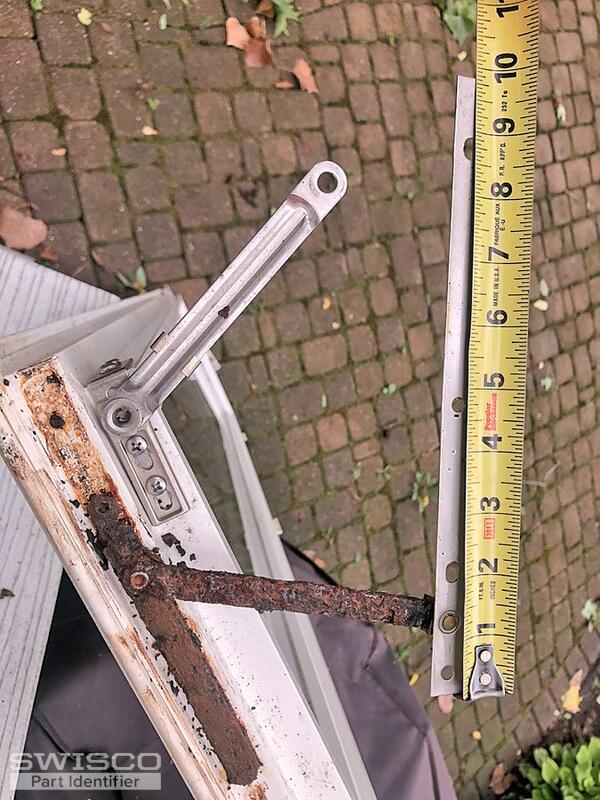

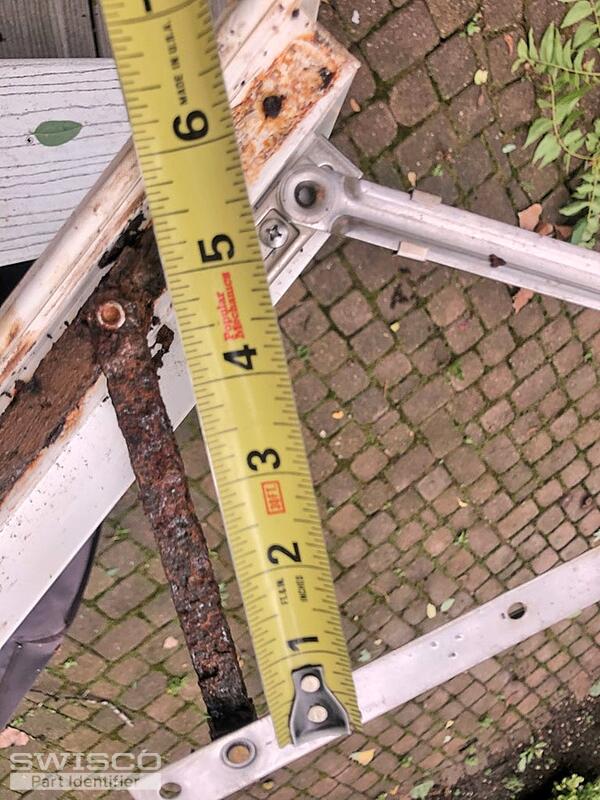

No identification found on vinyl casement window. May need up to 10 hinges.
Was unable to remove hinge from to window at this time for better picture.
5 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for posting! Looks like your window uses older Roto brand parts. We don't sell that exact hinge, but I believe our 36-048 can be used just as well. The trick is that you have to replace the top and bottom hinges at the same time, but that should be fine since the 36-048 comes as a pair anyway. Look it over and see what you think!

Quick Learner from Toronto
Hello Tom,
The previous guy sent a picture of the crank. Not the hinge. To find any kind of hinges is not a problem. I have the same issue with the opening mechanism (crank). Could you please help me to recognize it and help me to buy?
Thank you and happy holidays
Tom
Tom from SWISCO
SWISCO
Expert

The operator itself is an old Roto model that's no longer made. We do sell the modern equivalent, under our 39-091 and 39-092, but these are also discontinued and most of the related components aren't available anymore. The only related component we still  have is the handle, which is our 39-224, but the link arm is totally obsolete and not possible for us to supply. As such, you must reuse the original.
