Casement window hinge needed

Question

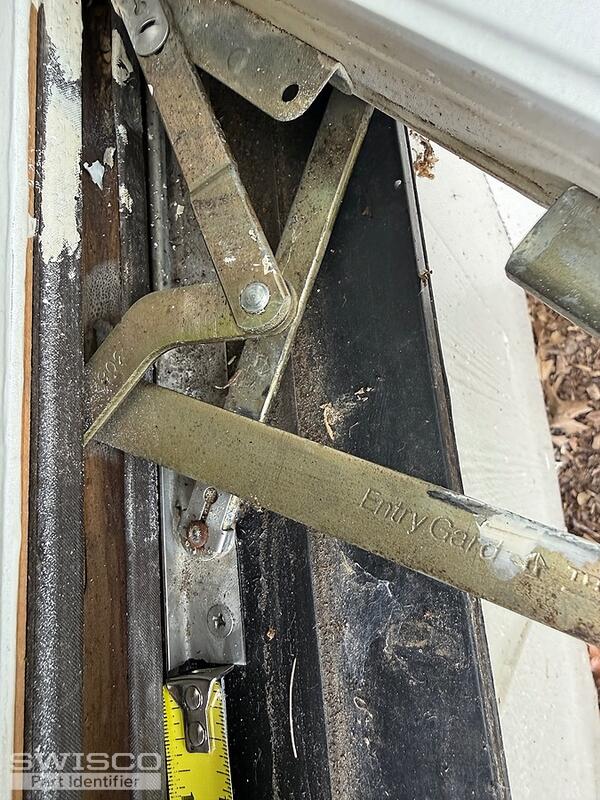

I have casement windows in my house and one of them is missing a portion of the lower hinge assembly, including the 10 inch long metal plate that screws to the windowsill, the mechanism that connects the bottom corner of the window that is supposed to pivot to that bar, and the arm that attaches to that bar and the bottom of the window to move it in and out. The picture I've attached is of another window that has all those parts so you can help me identify which product I need to repair the window with missing hardware. Thank you

Jasmine · Accepted Answer

Thanks for your post! I believe you'll need either the 36-004-10 (stainless steel) or the 36-048 to replace your hinges. Both of these sets have a 10" track but you'll need to compare their specifications to determine which of them is the best fit for the repair.

You'll need to replace both the top and bottom attachments at the same time to ensure the hinges are a match. These sets can be used for right and left handed applications.

DImensions for 36-004-10

Detail of 36-048
