Casement window locking system.

Quick Learner

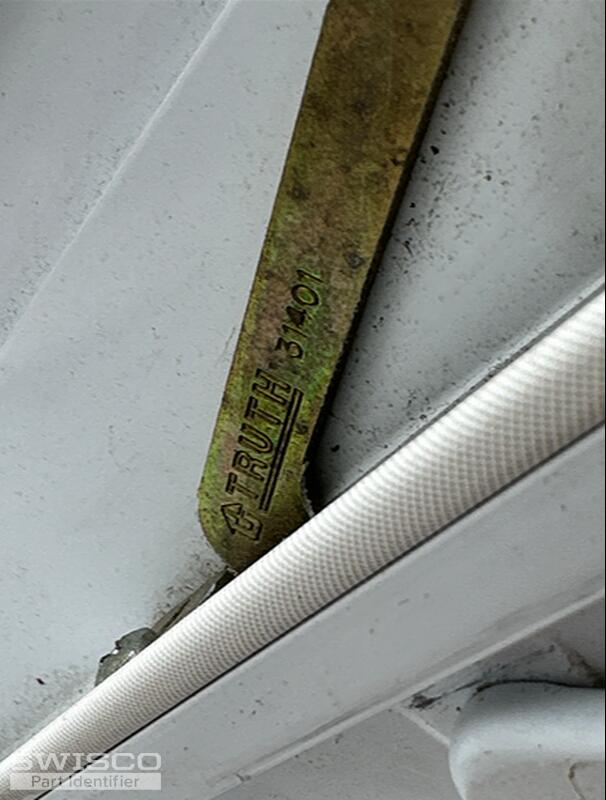

The one I need is missing. I took a picture of the marking on the good window. The one missing is on the right window ( cranks out to the right.
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for posting! The photos of your casement locks include both the 38-091 LH and 38-092 RH Multi-Point Sash Locks. To confirm that these are the correct replacement, take a look over the diagram below and compare the dimensions.

You'll also need to take note of the position of the arm, in comparison with your existing locks, to determine which one will replace the missing lock.

Dimensions for 38-091
Dimensions for 38-091

Alternate view of 38-091
Alternate view of 38-091
