Casement window operator

A quick learner from Port Ewen, NY says:

March 11, 2023

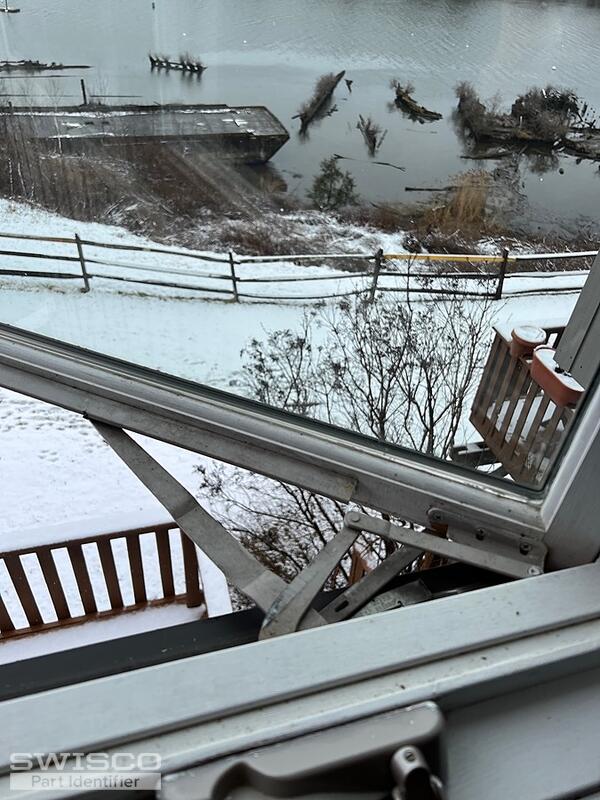

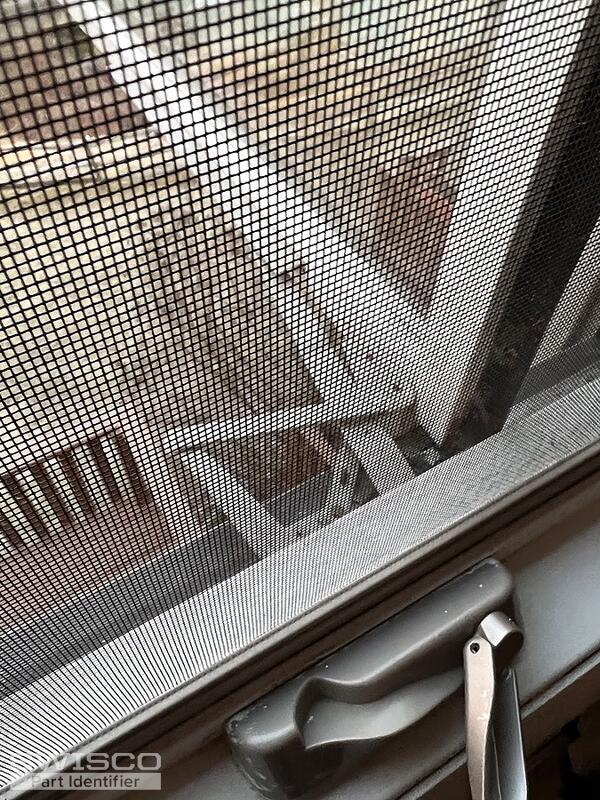

Unable to determine window manufacturer. I need the Operator for window (34x44) opening left. This is a picture of operator on adjacent right window. Unclear which operator I should purchase. Any help would be appreciated. Thank you.

Thumbnail of the uploaded file named A6B9D169-3B5F-4E7E-98BA-FD77E4E047D0.jpeg

Thumbnail of the uploaded file named 98ED175C-A2AD-41CF-BE3C-7FFC0C44FC3B.jpeg

Jasmine from SWISCO responded:

March 13, 2023

Hey there! Your operator reminds me of our 39-220B, it's opposite side is part 39-221B. Take a look at the dimensions and compare them to your existing hardware to confirm that it is the right fit. I am confident this is the operator you'll need.

Detail of 39-220B

The bracket being used to connect the operator to the window with the 39-220B is our part 39-545 (its opposite is 39-546). The compatible cover is part 39-375 (its opposite is 39-376). The cover and handle kit comes in an assortment of different colors.

Dimensions for 39-545

Encore Dyad Sill Mount Operator, LH

39-220B

$24.95

Truth Snap-Stud Bracket

39-545

$3.22

Encore Truth Folding Handle with Cover

39-375

$11.97
