Casement window operator repair

Home Owner from Canistota SD

Feb 17, 2025 3:04 pm

I need replacement parts for 3 Anderson windows. 2 are the first image. Don't know whether 4 1/2 or 8 3/8 arm need 3 cranks also.

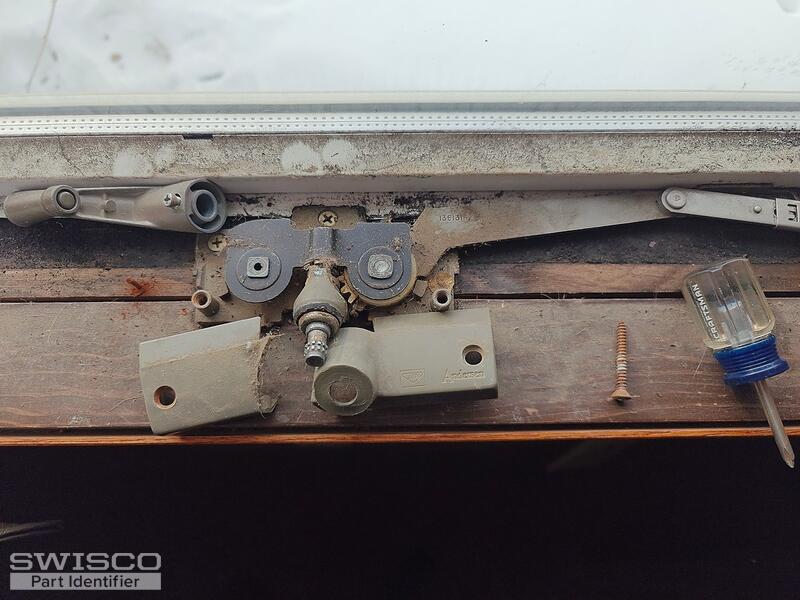

3 user uploaded images

4 Replies

Lauren from SWISCO

Feb 18, 2025 8:14 am

Hello, thank you for posting,

To further review, we will need to see pictures of the crank operator where we can see the base and arm. The window will need to be opened to expose the arm. From there we can get a clearer idea of the overall style to determine a possible replacement option. Thank you!

Home Owner from Canistota SD

Feb 18, 2025 4:20 pm

Are these better?

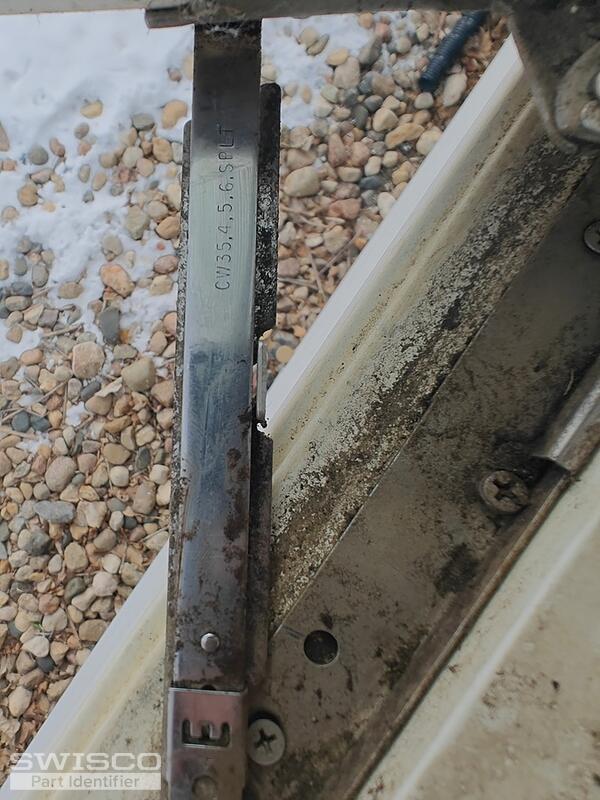

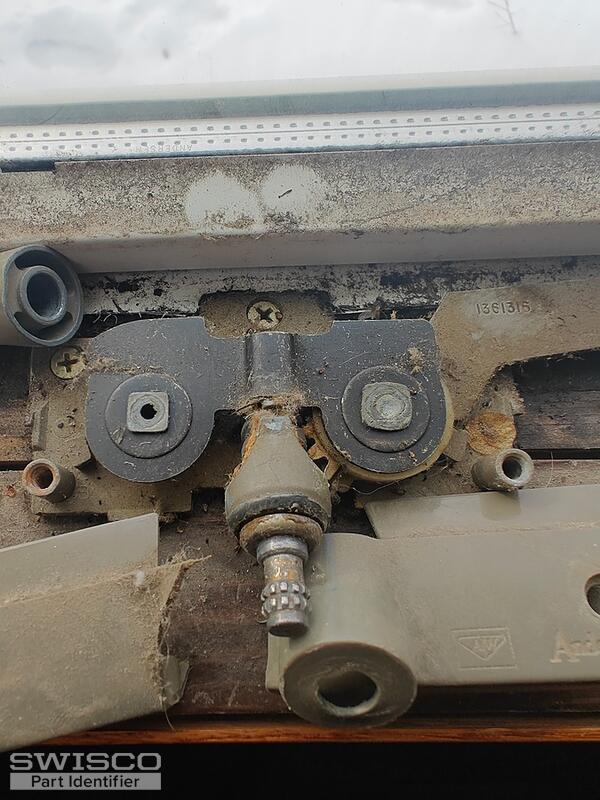

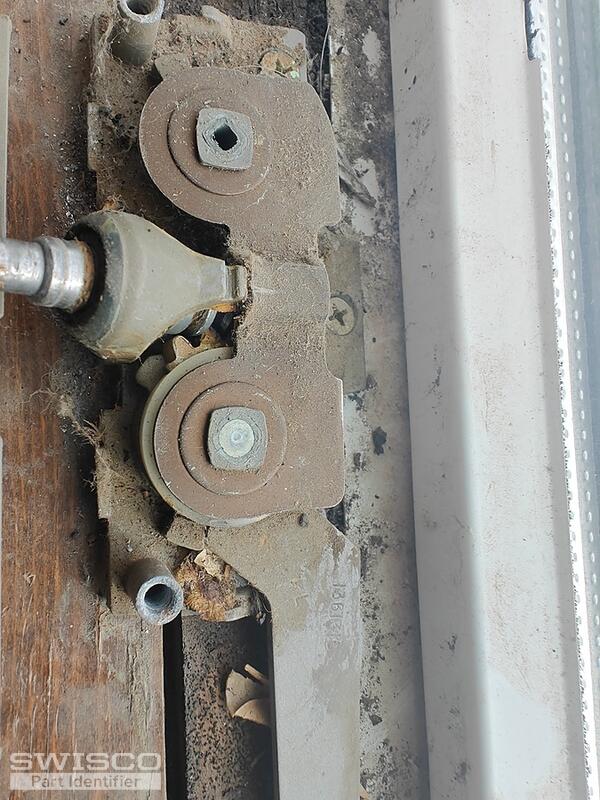

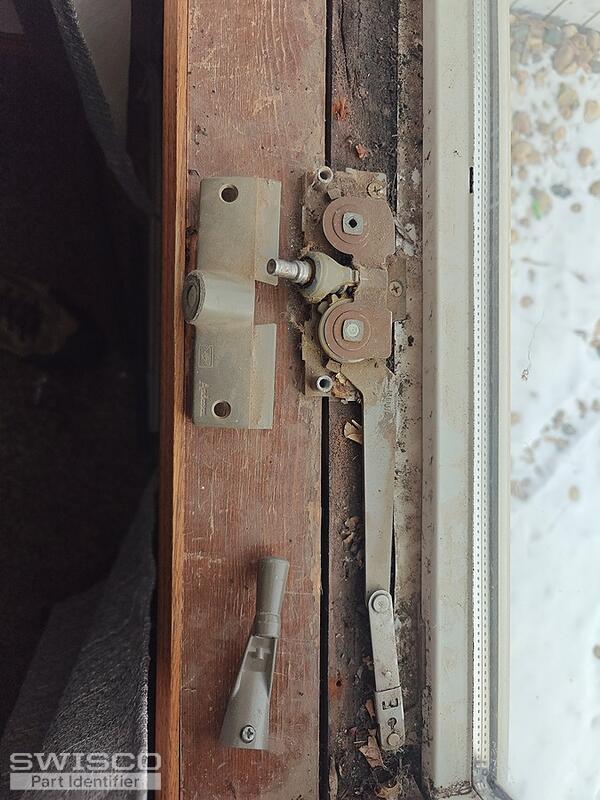

5 user uploaded images

Lauren from SWISCO

Feb 19, 2025 8:28 am

Thank you for the additional images,

Please review the style of the 39-146 and 39-147 operators. Compare the overall dimensions and orientation to confirm a good fit! These operators are compatible with the 39-286 handle along with the 39-160 and 39-161 rail brackets if needed.

Let us know if you have any additional questions!
