Casement window part
Handy Person from Brandon, MS
Sep 26, 2014 8:04 pm

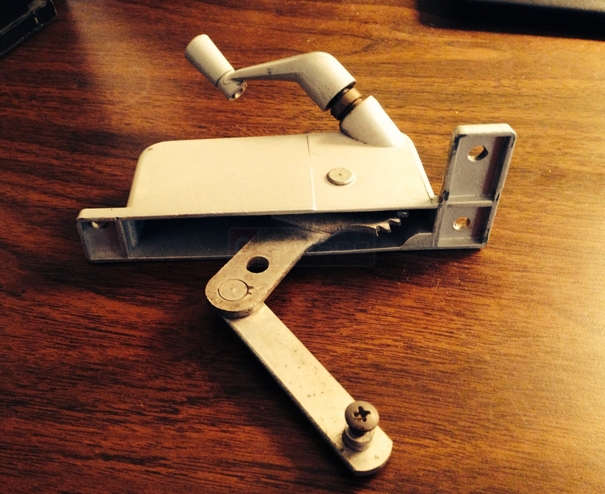

What part number is needed to replace this window crank? See Attached.
This is a vertical mounted assembly with two mounting screws at the base and one at the top. Casing is 6" top to bottom. 2 1/2" center to center on end extension arm. 2 1/2" from center of geared pivot point to center point at end of arm.
This is a vertical mounted assembly with two mounting screws at the base and one at the top. Casing is 6" top to bottom. 2 1/2" center to center on end extension arm. 2 1/2" from center of geared pivot point to center point at end of arm.
2 Replies
Dave Sr. from SWISCO
Sep 30, 2014 12:47 pm
I think you should start by looking at our 39-025. Make sure to carefully compare the dimensions we show to your own hardware to ensure that they match.
