Casement window repair parts

A quick learner from Basu Neupane says:

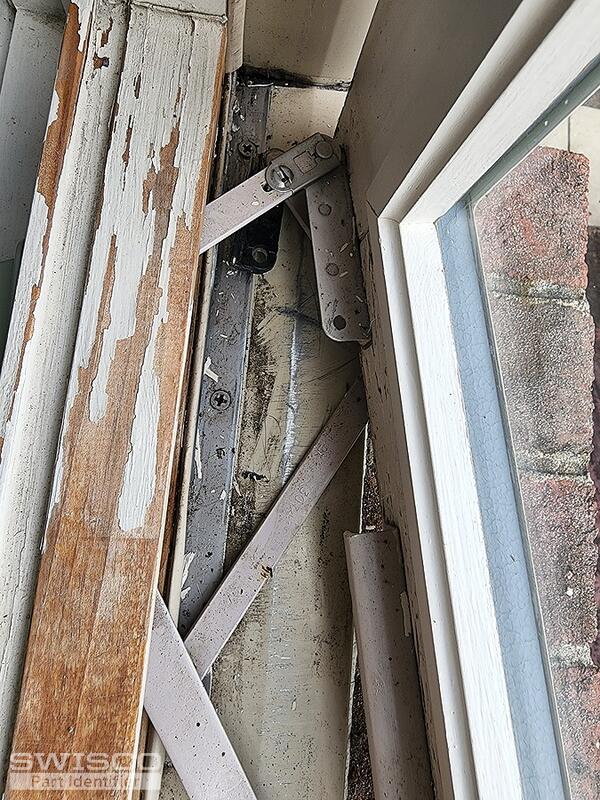

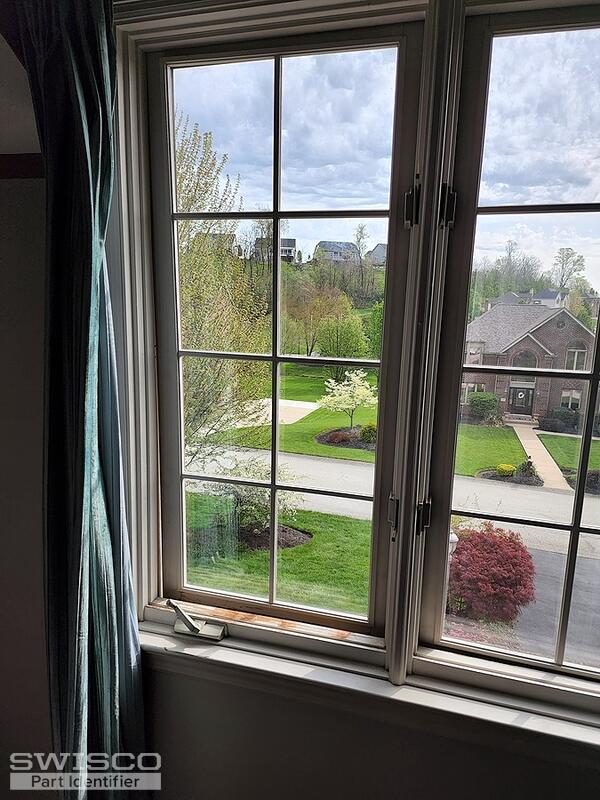

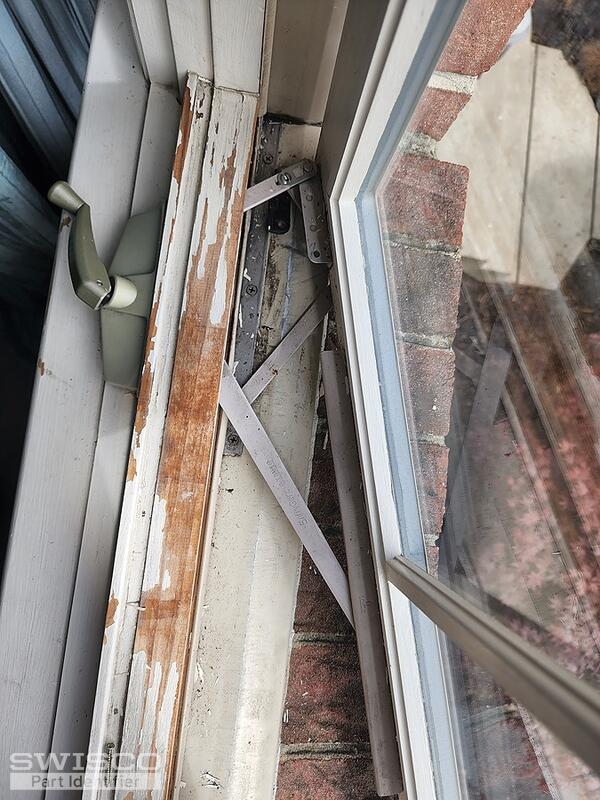

This window was made with Truth sign on parts and the latches and hinges look to be replaced.
Thumbnail of the uploaded file named 20220502_115309.jpg
Thumbnail of the uploaded file named 20220503_095137.jpg
Thumbnail of the uploaded file named 20220502_115331.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello! Your hinge looks similar to our 36-048. This should work for you even if it's not exactly identical, you just need to make sure to replace the top and bottom at the same time.

You also mentioned needing new latches, but I don't see those in your photos. If you submit a photo of the latch then I can make a recommendation.

A quick learner from Basu Neupane says:
Thumbnail of the uploaded file named 20211115_140001.jpg
Profile picture of Tom
Tom from SWISCO responded:

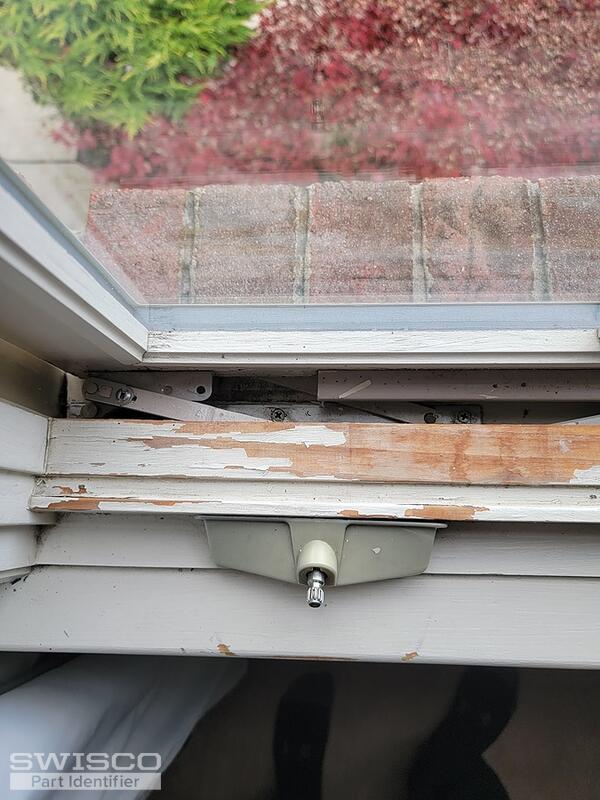

Okay, so it looks like you're referring to the operator.

If that's the case then there are many, many possible replacement options. It's a little tough to make yours out while it's still installed but it looks like a dual-arm operator, so start by looking at our 39-032 to see how well this matches up with yours. We also sell the 39-031 for the opposite side.

Dimensions for 39-032
Dimensions for 39-032
