Home Owner from Midlothian, VA

Sep 12, 2022 11:05 am

I can open the window but there's not enough tension to close the window. The house was built in 1989. I can see WRIGHT on the arm operator.

2 user uploaded images

6 Replies

Casey from SWISCO

Sep 15, 2022 2:00 pm

Hello,

We'd be happy to help but we would need to see your operator assembly with the window open so that the arms that move the sash are fully visible to compare to our inventory. Thank you!

Home Owner from Midlothian, VA

Sep 16, 2022 8:10 am

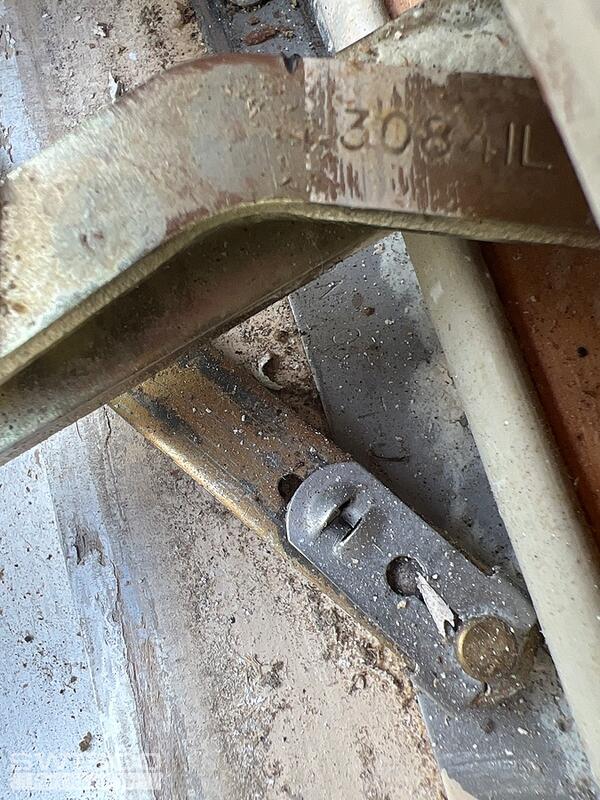

Markings include
20755
Entry guard truth
6289
3084IL

Thank you

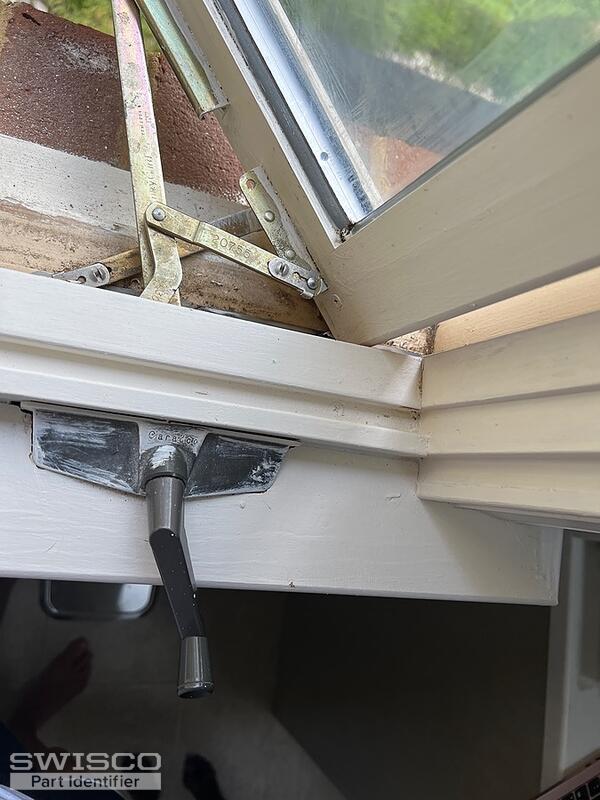

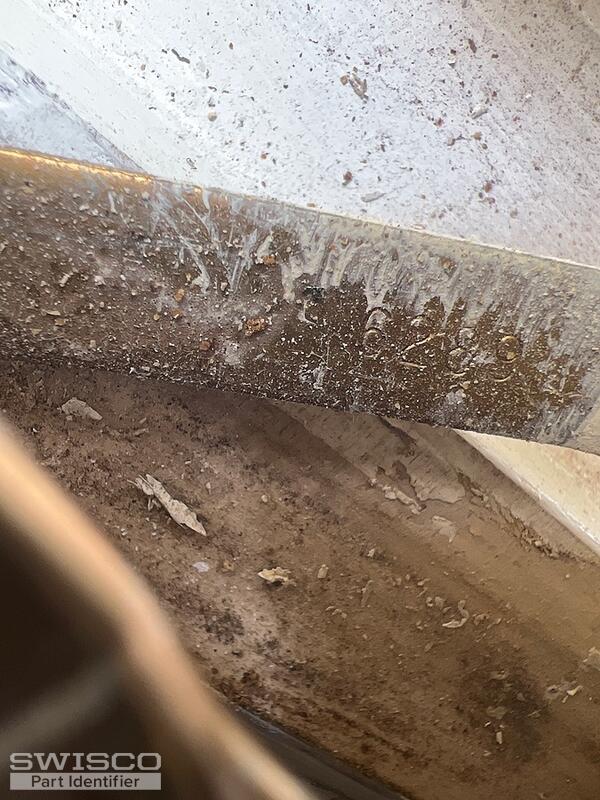

5 user uploaded images

Casey from SWISCO

Sep 16, 2022 8:23 am

Thanks for getting back to us. Your photos resemble the 39-031 and 39-032 EntryGard operators but you'll need to compare the dimensions shown on our product page, paying close attention to the length of the shorter link arm, to confirm they match your assembly.

Home Owner from Midlothian, VA

Sep 16, 2022 8:57 am

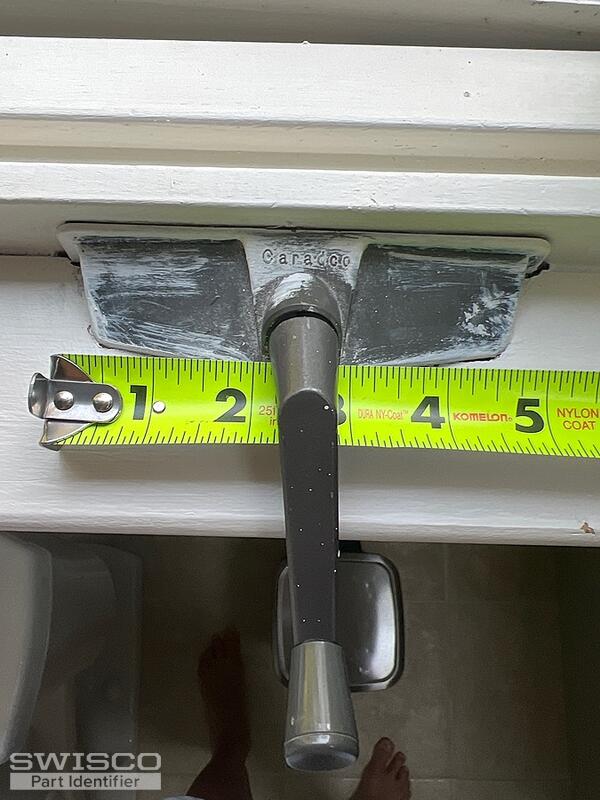

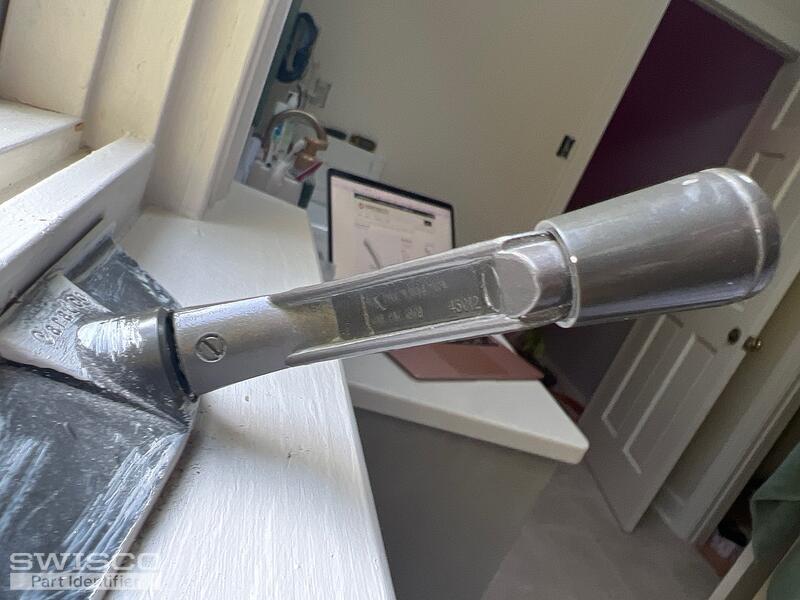

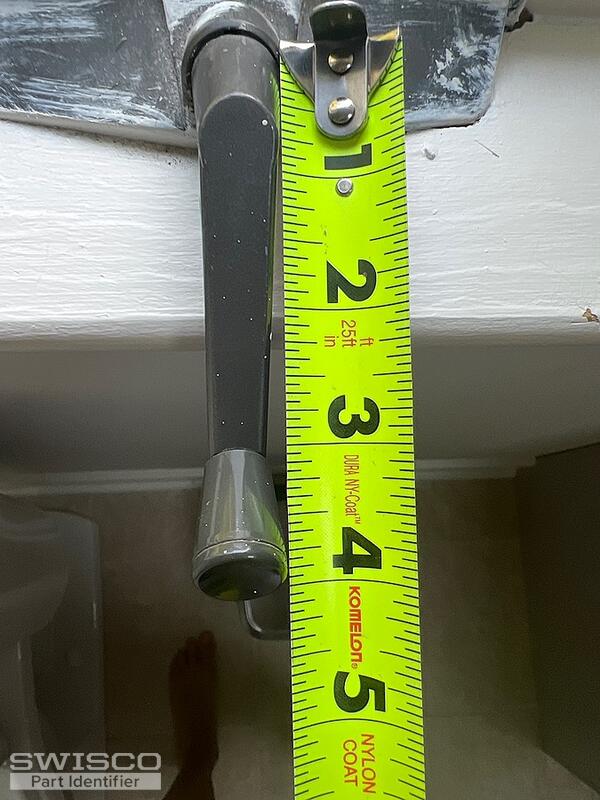

Thank you. If I were to replace the crank handle and operator cover which Product numbers would those be?

4 user uploaded images

Casey from SWISCO

Sep 16, 2022 9:08 am

Sure, take a look at the 39-107 cover, as well as the 39-114L or 39-205 folding handle.
