Casement window won't close

A quick learner from California says:
March 20, 2023
We could not figure out who makes our window or what we need to do to fix it. The crank opens the windows just fine but they won't close.

A Swisco rep showed us the 39-253LB and the 39-253RB and we ordered them.

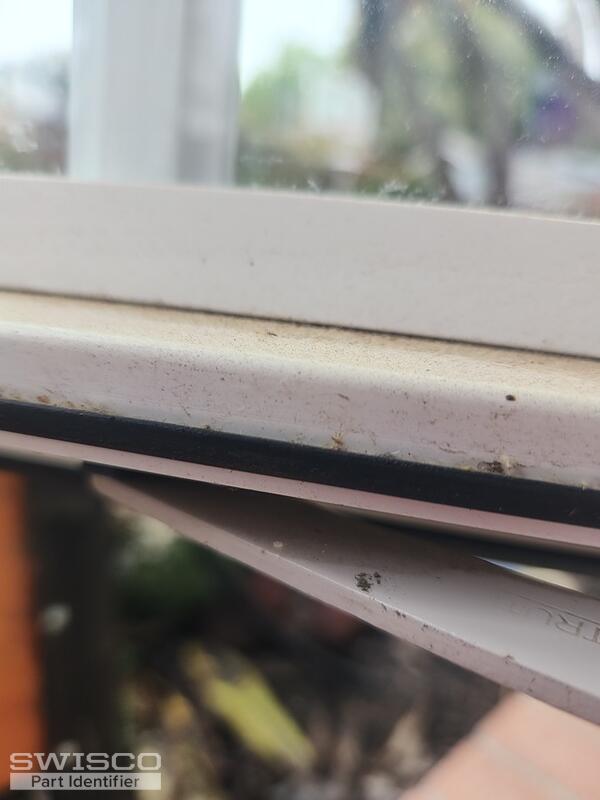

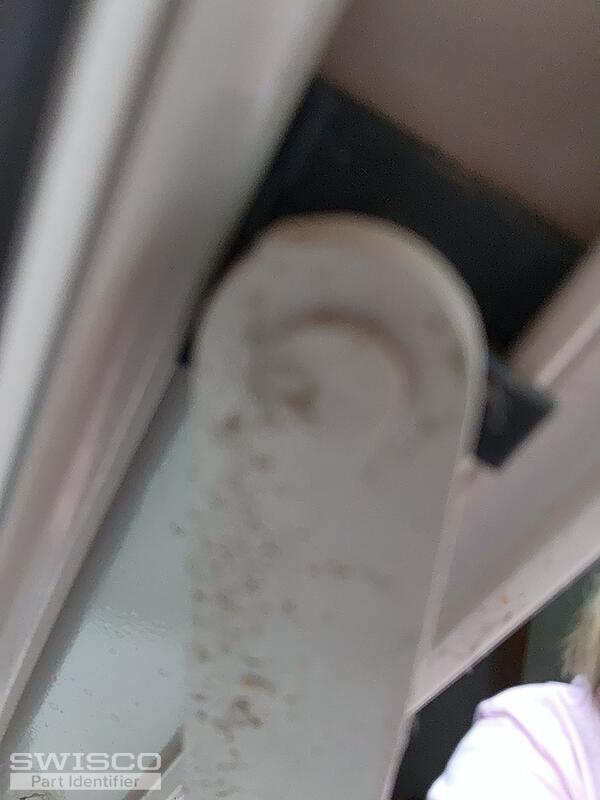

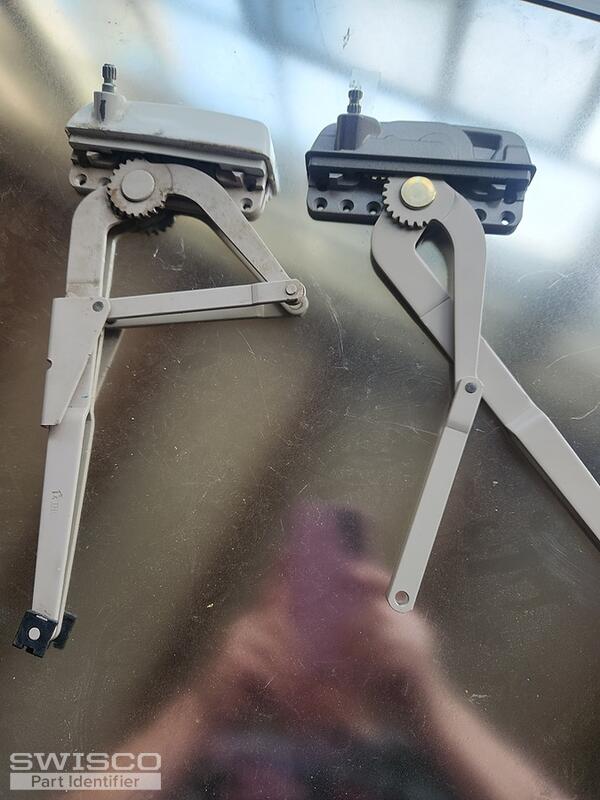

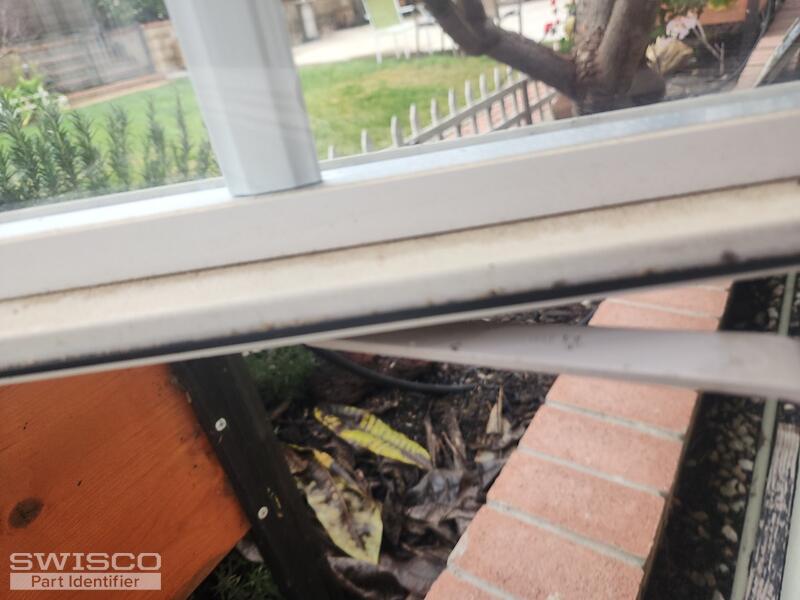

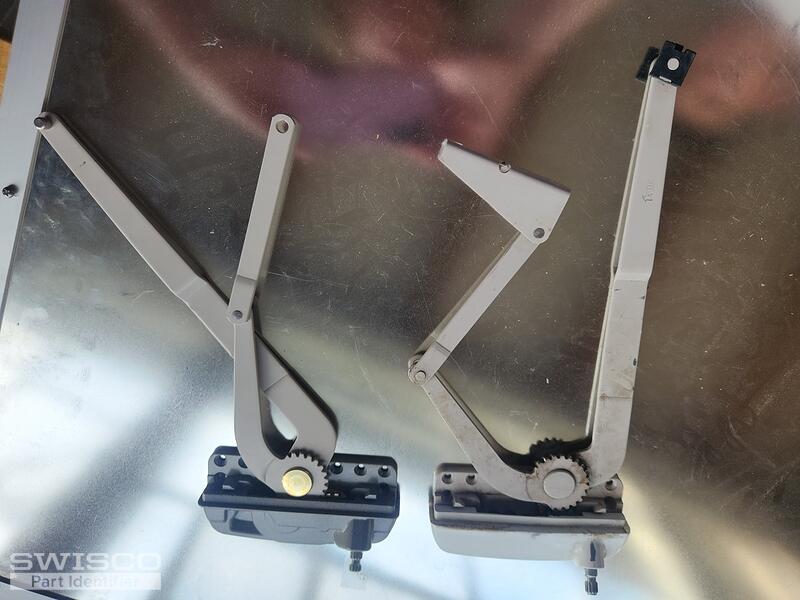

The ones you suggested I order don't work. Attached are pics. The white one is ours, the grey yours. Notice ours has something at the end of each "arm".
Do you have anything we can use?
Thumbnail of the uploaded file named 20230227_085807_resized.jpg
Thumbnail of the uploaded file named 20230227_085649_resized.jpg
Thumbnail of the uploaded file named 20230227_085640_resized.jpg
Thumbnail of the uploaded file named 20230317_172825.jpg
Thumbnail of the uploaded file named 20230317_172816.jpg
Profile picture of Casey
Casey from SWISCO responded:
March 21, 2023

Hello,

The Encore operators that you purchased use the 39-529 track slider at the end of the long arm, which is sold separately. Take a look and let us know if you need anything else. Thanks for posting!

Alternate image for 39-529
Alternate image for 39-529

Alternate view with measurements
Alternate view with measurements
Encore Dual Arm Operator, Sill Mount
Encore Dual Arm Operator, Sill Mount
39-253LB
$30.70
Encore Dual Arm Operator, Sill Mount
Encore Dual Arm Operator, Sill Mount
39-253RB
$30.70
Truth Hardware Track Slider
Truth Hardware Track Slider
39-529
$1.20
