Casement windows,

Home Owner from windham maine

Existing casement windows that are about 13 years old. The brand name believe the window brand name could be Kohltech, which is via attached photo, this window is from a shed not the house, so this may not be same brand I need help with,

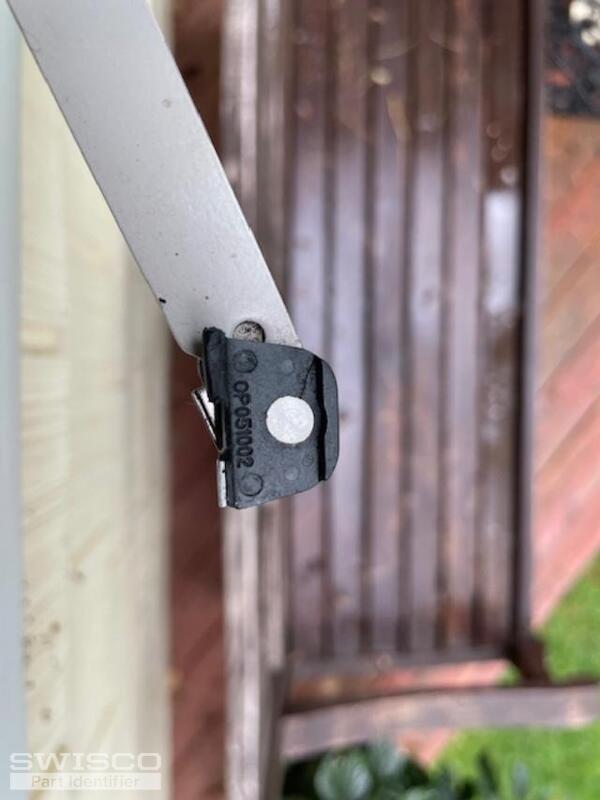

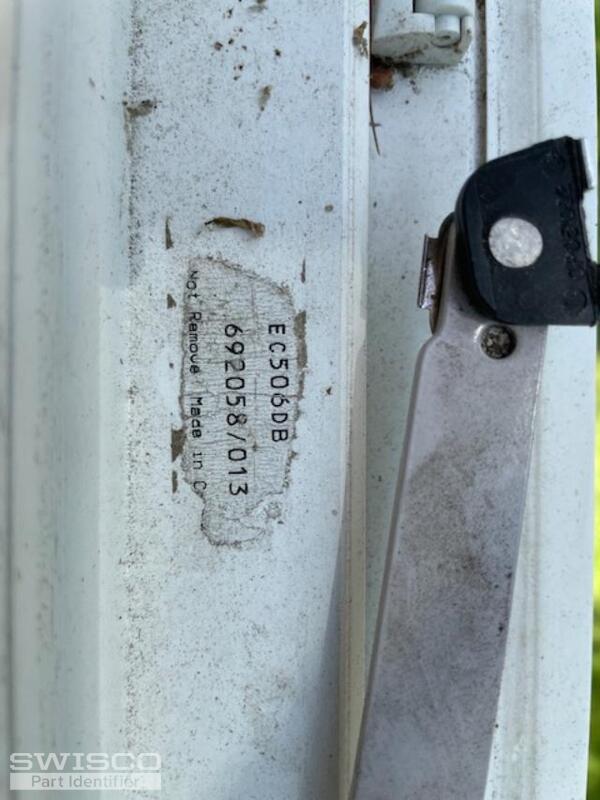

I have 3 casement that all broke the same way, the small black plastic piece that fits into the slide have broken and do not stay in the slide that cranks the window in and out. There is one photo with numbers which are the same on all 3 windows, two are right hand and one is left hand. The long arm measures 10.5"

I'm hoping the black tip is a part that can be purchased vs. the entire hardware system.

Any help would be greatly appreciated.

Dave

4 user uploaded images
4 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hi Dave, thank you for posting,

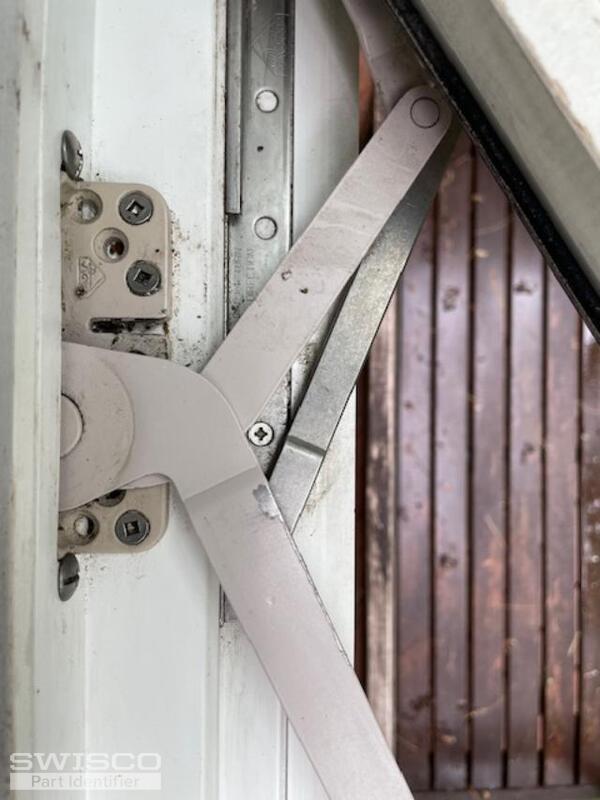

Would it be possible to see pictures of the base of the operator? I believe you may have a ROTO style like the 39-341 and 39-342 operators that use the 39-541 track slider, but additional pictures will confirm. Take a look and compare to see what you think!

Let me know what you think!

Alternate image for 39-541
Alternate image for 39-541

Home Owner from windham maine
Hi Lauren,

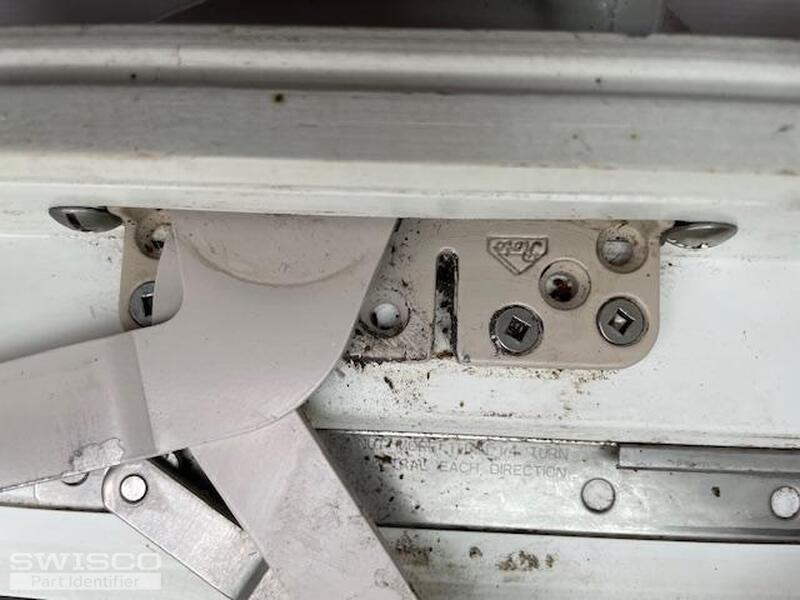

Thanks for the reply. Ive attached some additional photos, the base and a close up of the broken track slider. The measurements in the tracker slide diagram you attached are consistent with what I have as well. I remeasured the long arm of the operator, from the outside tip to the inside elbow is 9.5" Let me know if you need more measurements
I think you might have the correct operator and part needed. Please let me know.
Dave
3 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Hi Dave,

The length of the long arm as measured in the diagram below is 11-3/8" long. We do not have a 9-1/2" arm option. Please double check measurements to compare.

Alternate image for 39-341
Alternate image for 39-341

If you only need the track slider, the 39-541 should be a good fit if all dimensions match up. Let me know what you think!
