Casement windows hinges and operators

Question

Hi.

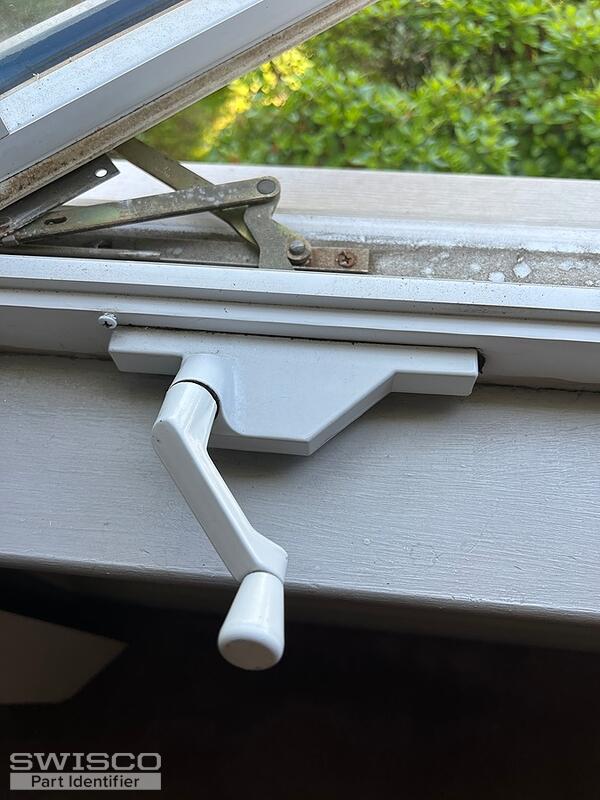

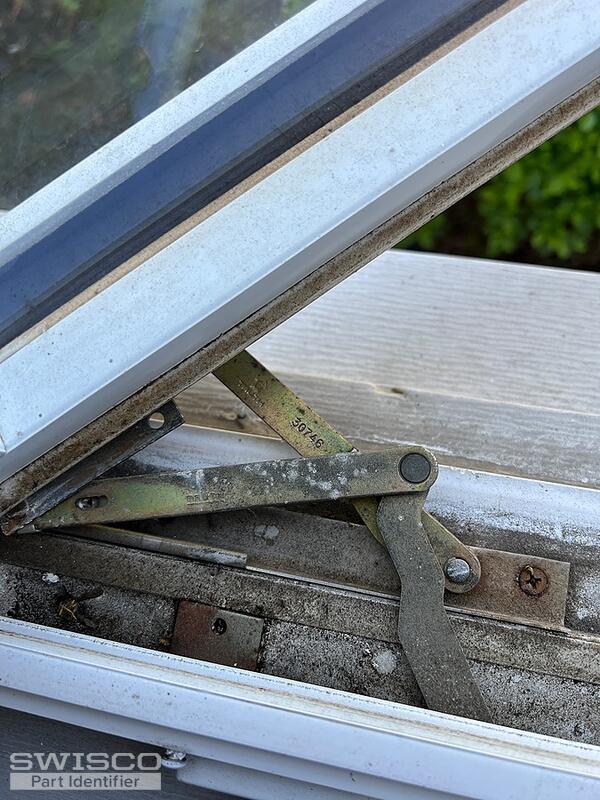

The first three photos are from a window in my living room. I have Truth 30746 reading on the elbow. I want to change both the hinges and the operator.
The last two photos are from a window in my bedroom. The reading on the base is Truth 30751. I want to do the same - replace hinges and operator.
Thank you for your help.

Emily · Accepted Answer

Hey there!

Thank you for reaching out to us. Take a look at the 39-188 and 39-187 operators, as well as the 36-048 hinge set. Review the specifications for these parts and see how they compare with yours. Note that we recommend replacing the top and bottom hinges at the same time.

Alternate measurement of arm

Dimensions for 39-187

Detail of 36-048

Additional dimensions for 36-048
