Casement windows not cranking

A quick learner from Highland Park IL says:
September 17, 2023

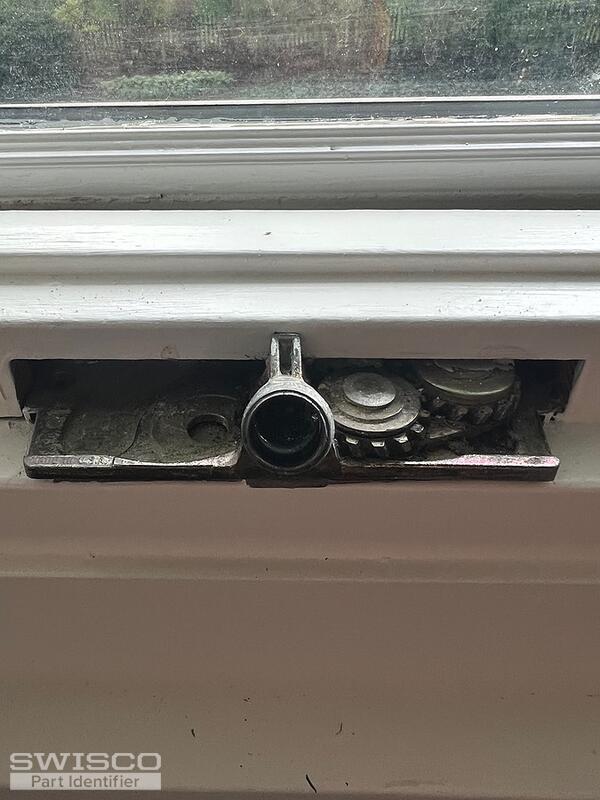

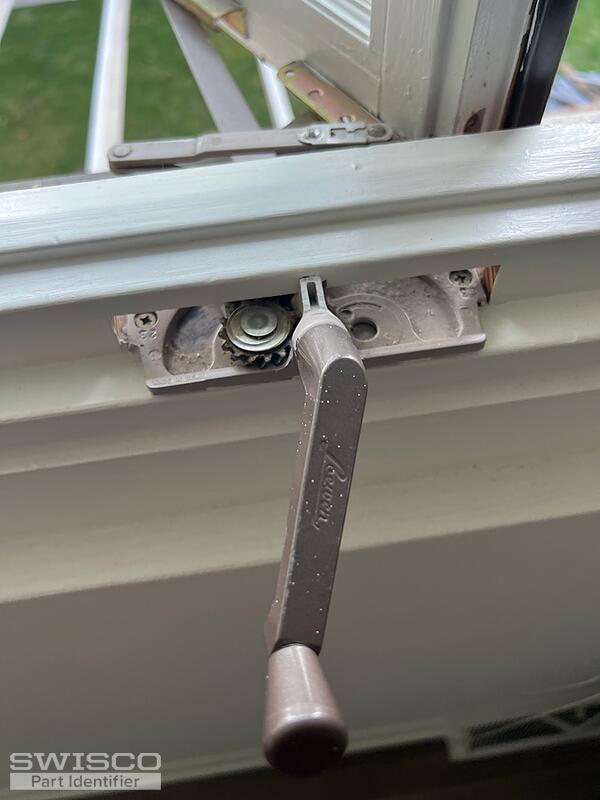

Trying to fix about 7-8 casement windows all with same issue . I can open them but can't close them.
Seems
Like the metal pin that goes inside middle
Of two small wheels is lose or broken and doesn't latch to crank and close the widows.

Let me know if
This can fixed somehow .
Thanks
Thumbnail of the uploaded file named IMG_0914.jpeg
Thumbnail of the uploaded file named IMG_0916.jpeg
Thumbnail of the uploaded file named IMG_0659.jpeg
Profile picture of Casey
Casey from SWISCO responded:
September 18, 2023

Hello,

It sounds like the gears of your operator may be stripped, meaning that the entire assembly would need to be replaced. We can help but we'll need to see a top-down photo with the window open so that the rest of the arms that move the sash are fully visible to compare to our inventory. Thank you!

A quick learner from Highland Park IL says:
September 18, 2023

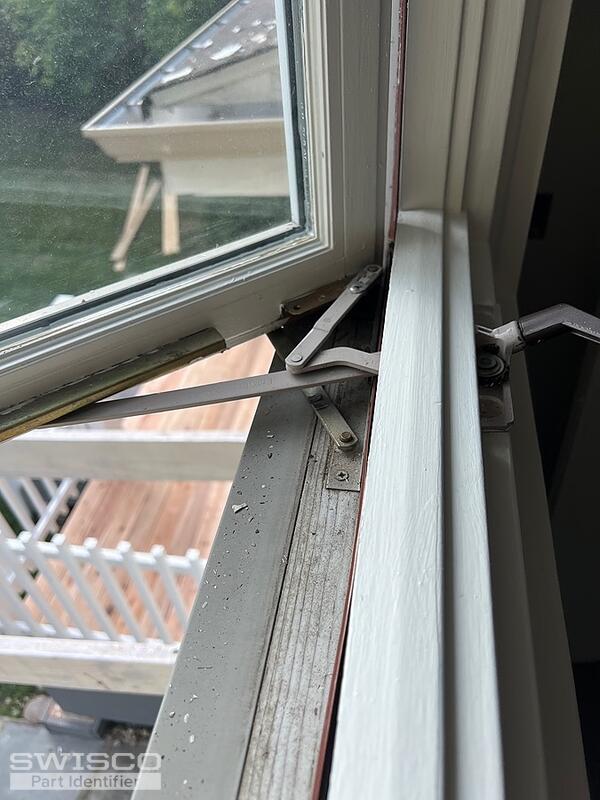

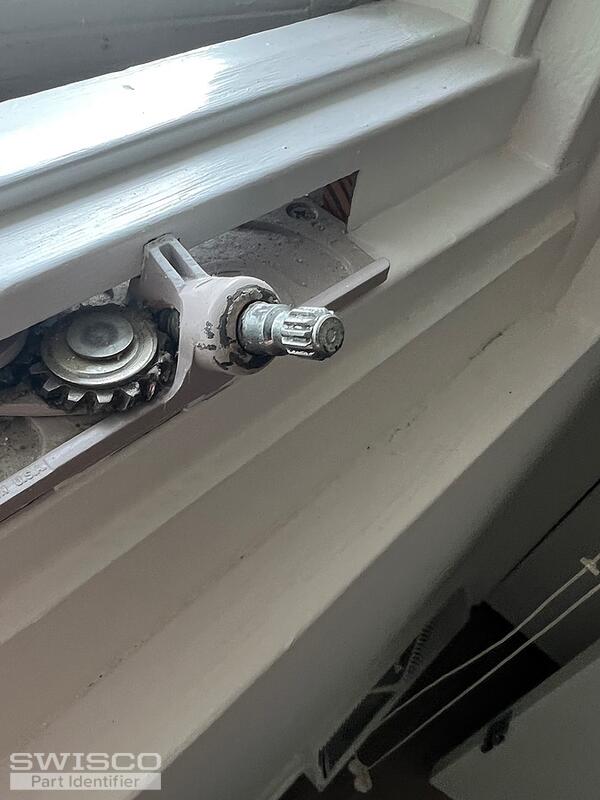

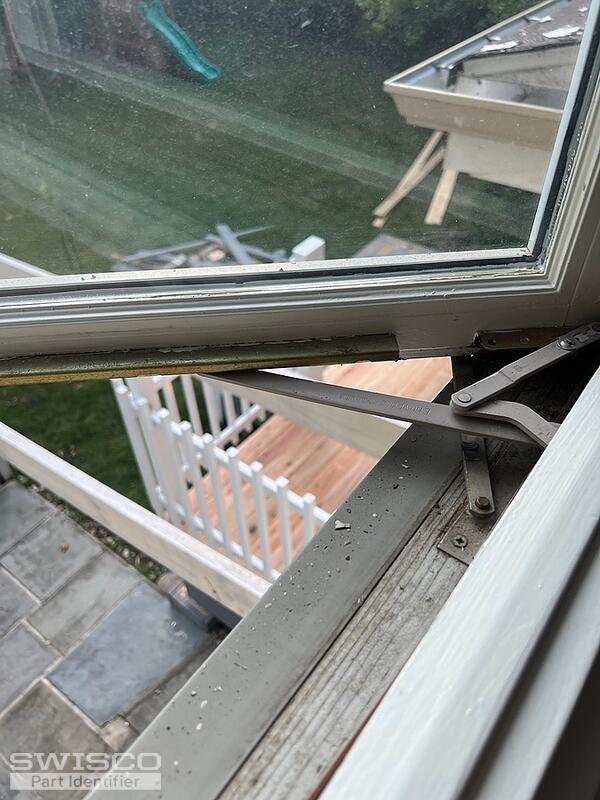

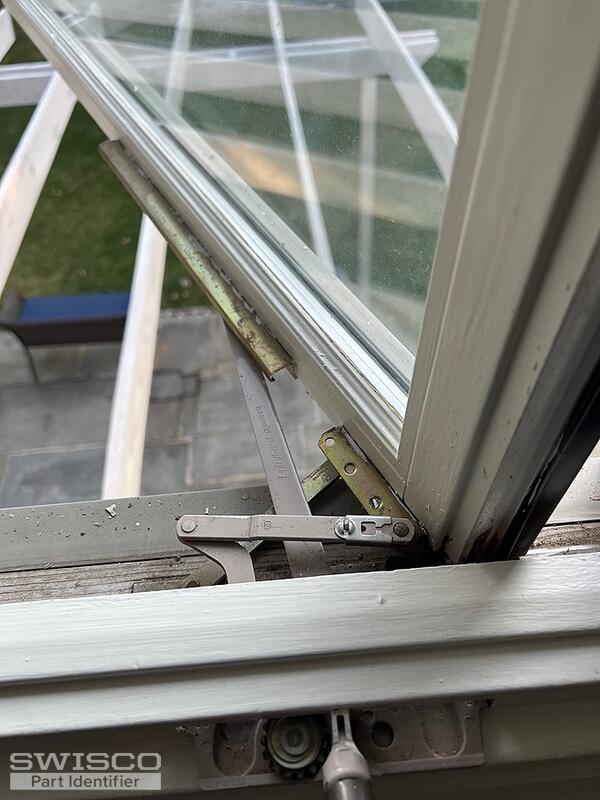

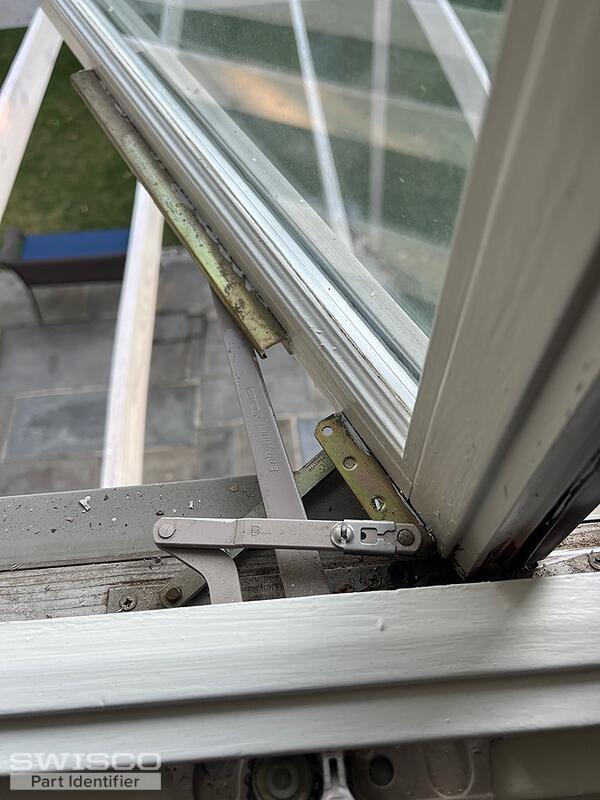

As you can see I'm also missing that PIN that go inside tue housing.
See full pictures
Thumbnail of the uploaded file named IMG_1031.jpeg
Thumbnail of the uploaded file named IMG_1030.jpeg
Thumbnail of the uploaded file named IMG_1029.jpeg
Thumbnail of the uploaded file named IMG_1026.jpeg
Thumbnail of the uploaded file named IMG_1027.jpeg
A quick learner from Highland Park IL says:
September 18, 2023

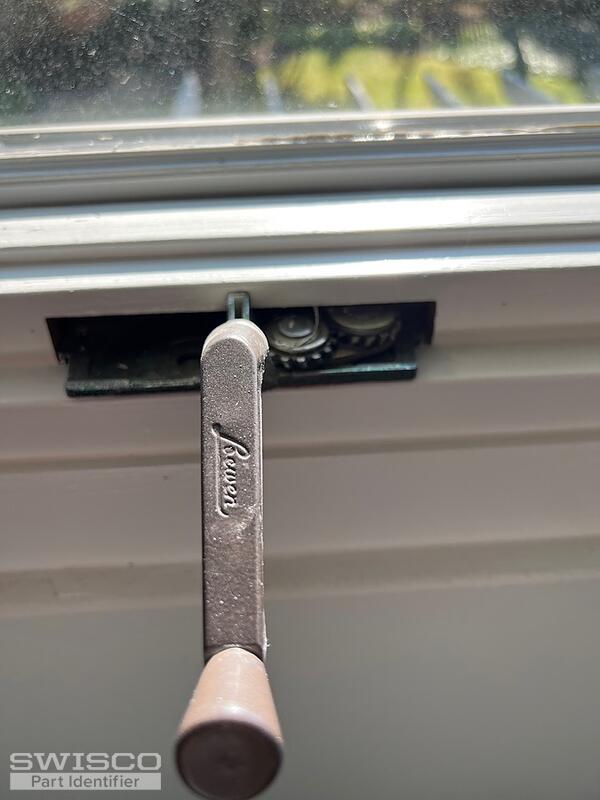

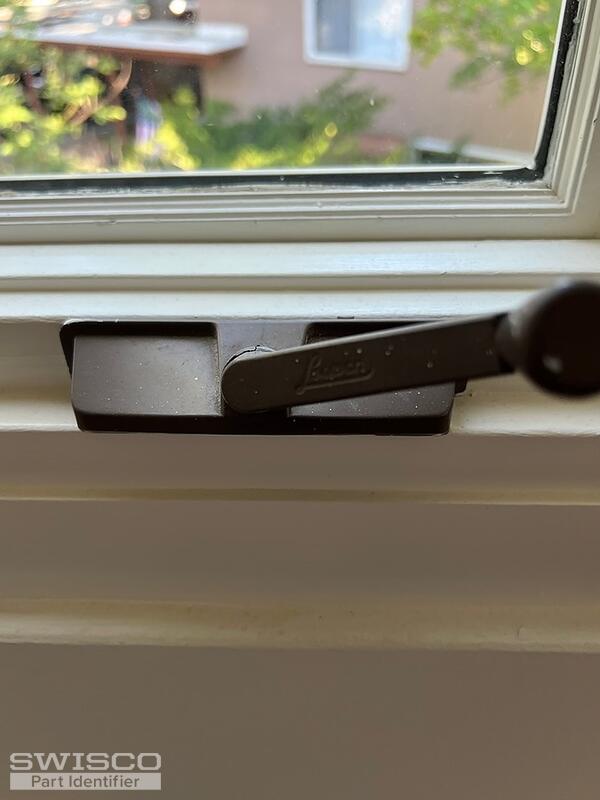

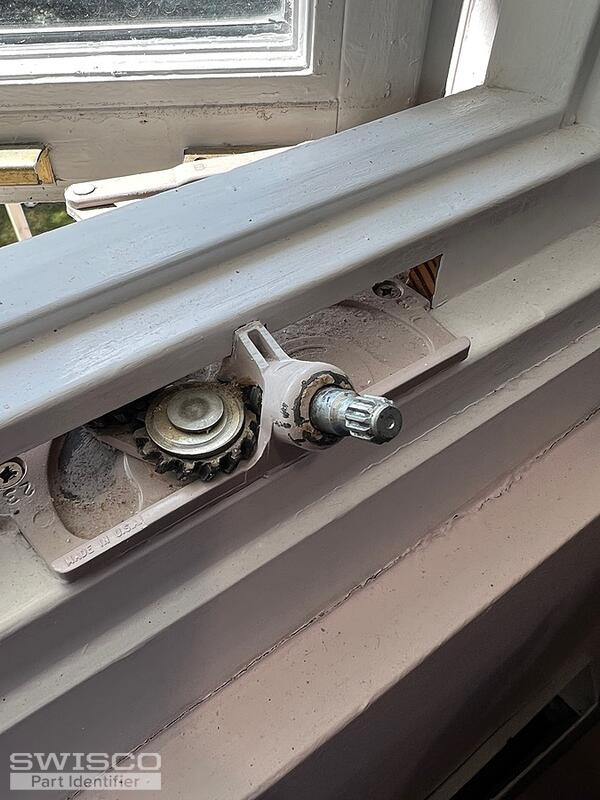

Couple
More pic where
I'm also missing the PIN in tue main housing so I can't open or close that window.
Thumbnail of the uploaded file named IMG_1025.jpeg
Thumbnail of the uploaded file named IMG_1026.jpeg
Thumbnail of the uploaded file named IMG_1028.jpeg
Profile picture of Casey
Casey from SWISCO responded:
September 19, 2023

Thanks for getting back to us. Your operator resembles the EntryGard 39-031 and 39-032 . Take a look and compare the dimensions below to your assembly, paying close attention to the length of the shorter link arm. These come with the spline that the handle attaches to, so you should be good to go. We also offer the 39-107FK handle and cover kit or the 39-107 cover and 39-205 handle separately.

Dimensions for 39-032
Dimensions for 39-032

EntryGard Dual Arm Operator
EntryGard Dual Arm Operator
39-031
$29.41
EntryGard Dual Arm Operator
EntryGard Dual Arm Operator
39-032
$29.41
Truth Hardware Operator Cover
Truth Hardware Operator Cover
39-107
$3.30
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Truth Folding Crank Handle, 11/32"
Truth Folding Crank Handle, 11/32"
39-205
$11.70
Truth Folding Handle And Cover Kit
Truth Folding Handle And Cover Kit
39-107FK
$15.45
