My problem is the slider and metal rail are bent. The actuator is stripped because of the poor slider. I do not know what brand the windows are. They were installed in 1987. Please identify the replacement parts so I can buy new ones.
Actuator arm 5 inches
Slide length 10 inches
Slide to Window arm 4.5 inches
Actuator arm to window 4.5 inches
Dimensions are hole to hole
I hope the pictures help identify the manufacture
Overall mechanism
Actuator knob

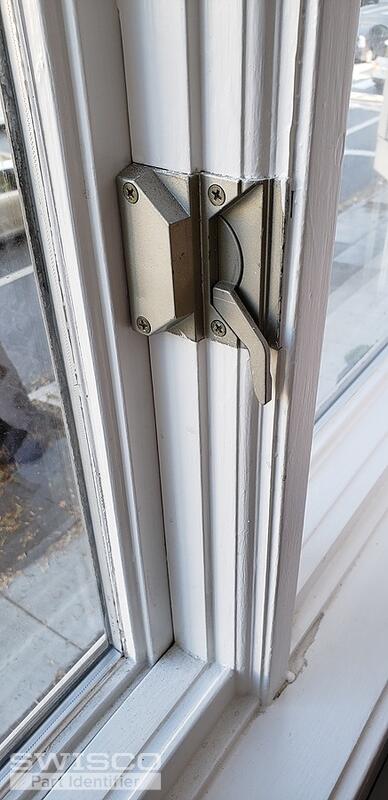

Latches
Casment slider
Home Owner from San Francisco, CA
Sep 28, 2022 10:41 pm
4 user uploaded images
4 Replies
Emily from SWISCO
Oct 4, 2022 11:11 am
Hello!
Thanks for reaching out to us! I'm afraid we don't know who manufactured your window but we can certainly help with the parts you show here. I recommend our 39-172 operator, 36-048 hinge set with a 10" base and the 38-097 & 38-098 sash locks. For the T handle, see our 39-102. These parts look like great matches for your hardware but compare our specifications with yours and let me know if you agree.
Home Owner from San Francisco, CA
Oct 7, 2022 9:12 pm
HI

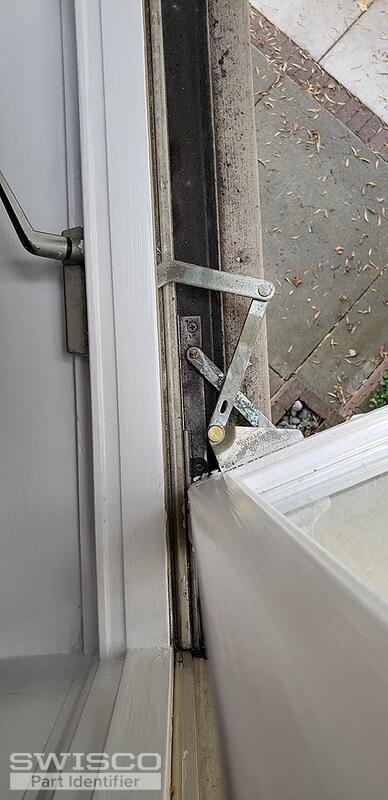

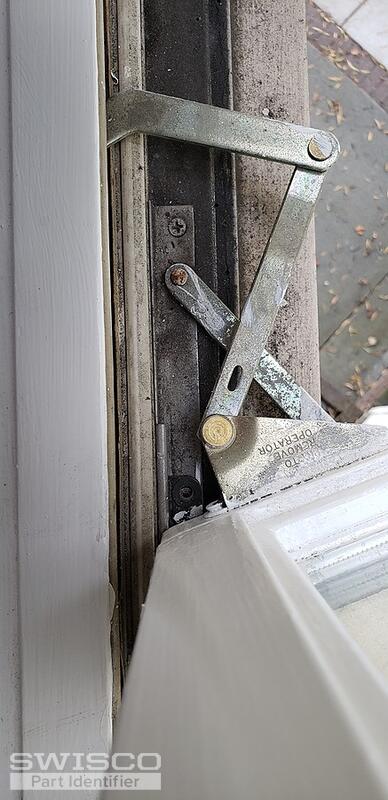

The 36-048 slider part is close. What actually slides on the track is the back of the window,
The 36-048 slider part is close. What actually slides on the track is the back of the window,
2 user uploaded images
Tom from SWISCO
Oct 10, 2022 9:09 am
Hey there, Emily isn't here today but I'll do my best to assist you from here on out.
Looking over your photos, I agree that our 36-048 will replace your hinge. The catch is that you have to replace the top and bottom at the same time so that the sash has a symmetrical operation.
