Certain Teed 3/4" coils

Question

Swisco,

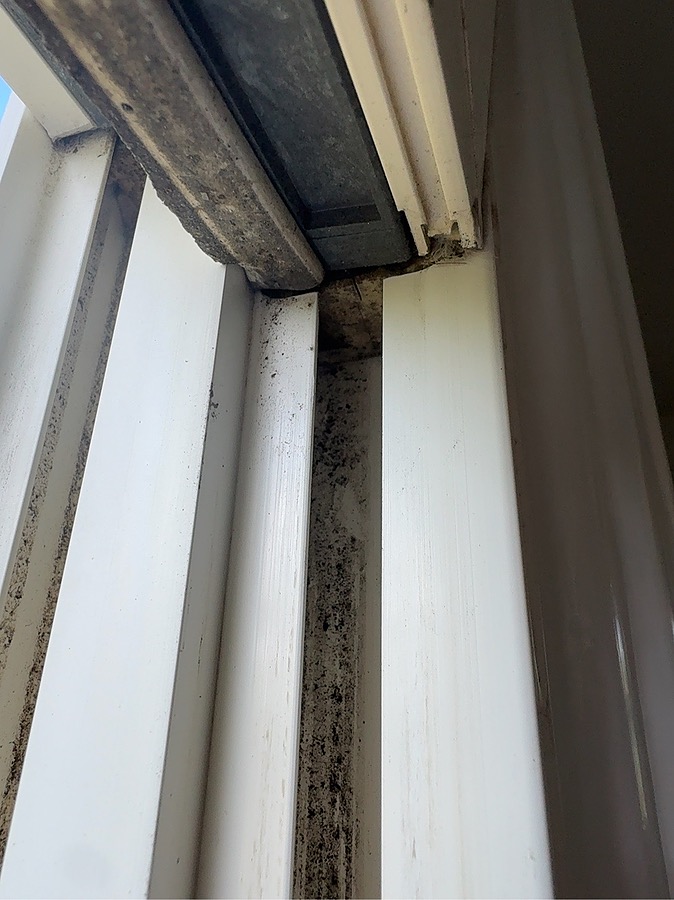

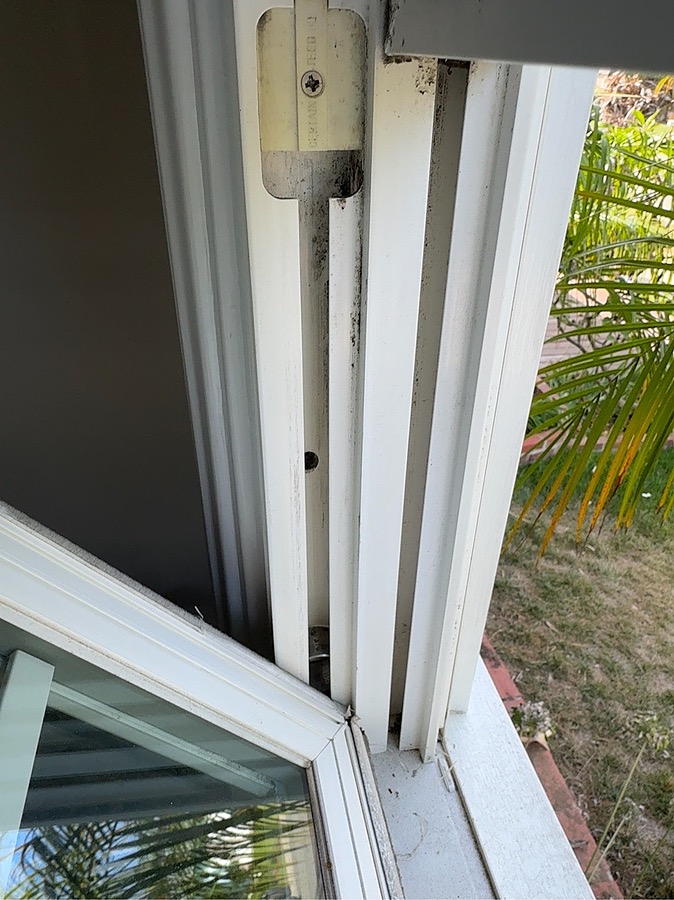

My double dash window uses these certain teed 3/4" coils. The window currently won't stay up regardless of coil adjustment settings. I'm thinking of ordering new coils to see if that fixes it.

Can you advise on a repair strategy and let me know what parts I need?
Thanks,
Garrett

Bob · Accepted Answer

Hello there. See the 15-192 Pivot Shoe by Certainteed. This works with Series 170 and Series 171 Coil balance springs. See the video below for details. The housing that protects and supports these springs is no longer made, so you'll need to reuse your old housing if possible.
