"Certaintee" window latch

Landlord from Doylestown, PA
white side labeled certaintee; control lever labeled open and close; movement underneath (unpainted part that 'catches' when moved has 9134 stamped on it and the body has 93 on top of 81 stamped inside a little circle; also has AS-PA stamped in body on underside

only need 1

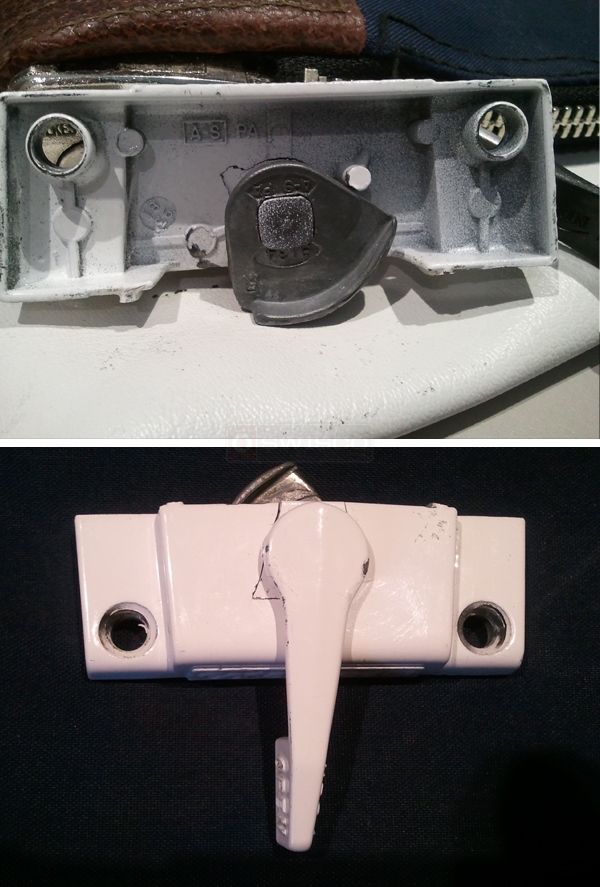

User submitted photos of a window latch.
16 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Thanks for posting. Before I can recommend an applicable replacement lock, could you first give me your dimensions? I would especially need to know the distance between the screw hole centers, as well as the screw hole offset, also measured by the hole center. Let me know!
Handy Person from Doylestown, PA
Tom,
the screwholes are 2 &1/8" apart on center; the center is offset from the front edge (where certainteed is stamped) by 1/4"

thanks,

Mike
Tom
Tom from SWISCO
SWISCO
Expert
Great, thanks, Mike. How about our 90-274? This looks like it might meet your requirements. The offset I needed was from the back edge, though. Sorry for the confusion. For the 90-274, that would be 11/16". How does that match yours?
Friend from Doylestown, PA
11/16" perfect. Then, I can just order on the web, correct? Or would a local distributor stock this ...either nearby to zips 18901 (Doylestown) or 18103 (Allentown area)?
Tom
Tom from SWISCO
SWISCO
Expert
Great! I'm glad it matches up. You can purchase directly from our site. Simply add the part to your cart and then click "Checkout." I'm not sure if there is a local distributor in your area who may carry our hardware.
Handy Person
ordered it.

thanks for your help...great system too
Handy Person from Doylestown, PA
Tom,

I bought two 90-274, but I think I need something different. The body with the latch does mount correctly. However the catch does not replace the existing catch and the body will not work with what it mounted. I can not mount the new catch on the window.

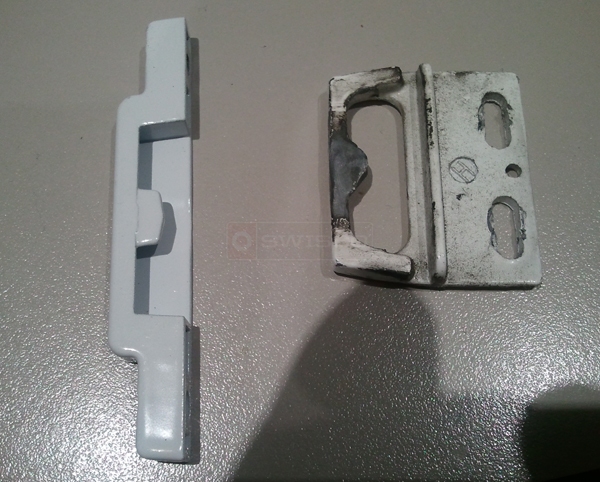

The existing catch is on the right in the attached picture. It is stamped on the back PA 95
66
The numbers are stamped in a circle.

Thanks,

Mike
User submitted a photo of keepers.
Tom
Tom from SWISCO
SWISCO
Expert
Ah, I see. That's too bad. But maybe we can find a face-mount keeper for you that works with our 90-274. What is the distance between mounting holes, center-to-center? That will help us find sometihng.
Handy Person from Doylestown, PA
As best as I can measure the holes, center to center, are 3/4".

The entire keeper is 1&1/4" wide; 1&1/2" high
Tom
Tom from SWISCO
SWISCO
Expert
Thank you for your continued patience. Unfortunately, we've been unable to locate a keeper that's exactly like yours. The closest possible match I can find is our 90-041. It can work with the 90-274, but its dimensions are a little different than yours. You may have to drill new holes. What do you think? Can you get it to work?
Casey
Casey from SWISCO
SWISCO
Expert
You may also want to consider our 90-237. This also works with the 90-274 lock.
Quick Learner from Doylestown, PA
how would i choose between the 90-041 and the 90-237?
Tom
Tom from SWISCO
SWISCO
Expert
It's hard to say. Either way, you will have to drill new holes in your sash, so you should take a look at how much space you have and see which would be a better fit. If either could work, then it's simply a matter of preference.

If you do decide to go with either of these locks, just make sure you're careful when you drill. You don't want to cause any damage to the glass.
Quick Learner from Doylestown, PA
the keeper I am replacing is 1.5" high; 1&3/8" wide

what are the dimensions of the 90-041?
Tom
Tom from SWISCO
SWISCO
Expert
Our 90-041 is approximately 1-5/8" high, and the width varies. At its widest, at the top part, it's 1-11/16". The very bottom of it is approximately 1-1/4".
