Certainteed Awning window 45.5"x19.5" window crank only works in one direction

Home Owner from San Diego
Jul 18, 2022 8:05 pm

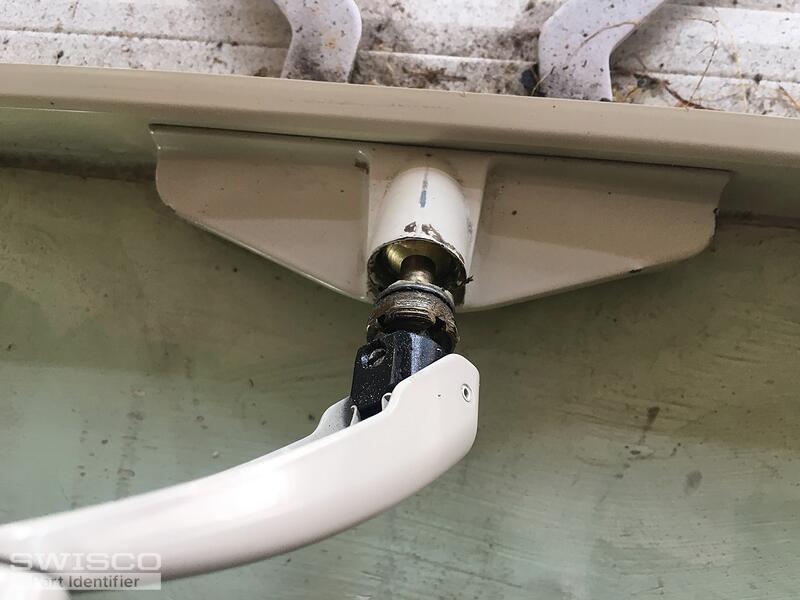

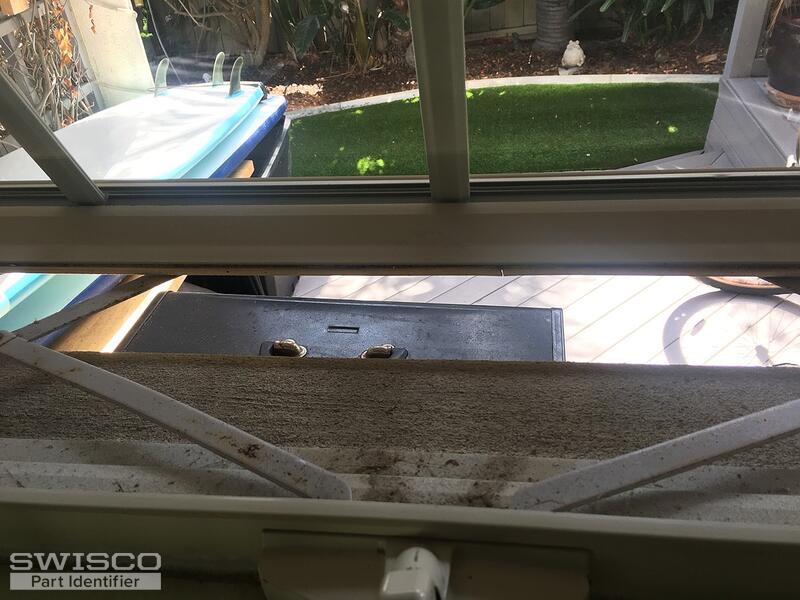

Hi. I have a video of this crank in action. It will open the window, but on reversing the direction of the crank, it just unscrews itself, and the window does not move. I can close the window by pushing from the outside while lightly turning the crank inside.
2 user uploaded images
2 Replies

Tom from SWISCO
Jul 25, 2022 10:40 am


Hello! It looks like the worm gear stripped out. You'll definitely need a new operator.
I believe our best match will be the 39-015. I feel confident that this is what you want, but look it over and see what you think.

Dimensions for 39-015
