Certainteed Bryn Mawr Pivot Pin

Home Owner from Concord CAlifornia
Jul 30, 2010 9:17 pm
Will the 26-175 pivot bar pair fit this Certainteed Bryn MaWR DOUBLE hung window? I broke one when it was not properly seated and the window fell breaking off the tab, which is offset. Right side as I am looking at the window.
5 Replies
Dave Sr.
Dave Sr. from SWISCO
Aug 2, 2010 7:54 am
SWISCO
EXPERT
I'm not familiar with the Bryn Mawr series window from Certainteed. However, the 26-175 is used by Certainteed. Have you matched the measurements online with your pivot bar?
Home Owner from Clayton, CA
Aug 2, 2010 5:18 pm
Certainteed Bryn Mawr is their double hung low E2 glass window. The measurments I see in you add match the one I have 2 7/16 long, 7/8 inch high. The location of the retainer pin is where I am unsure.
Dave Sr.
Dave Sr. from SWISCO
Aug 5, 2010 7:24 am
SWISCO
EXPERT

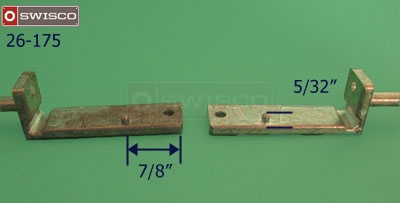

Profile view of the 26-175 pivot bar pair.
I hope these measurements help describe the part's size.
Contractor from lakeville mn
May 12, 2011 2:21 am
hi my name is randy berres i do dubble hung windows with those certain teen sash pivot bars i have been looking all over for those i need a left and a right so i would be very happy if you could tell me where i can get some from or if you can contact me at the e-mail address above i would be so greatfull thanks and god bless
Tom
Tom from SWISCO
May 12, 2011 8:46 am
SWISCO
EXPERT
You can purchase the 26-175 right online at SWISCO by following this link: Pivot-Bar-Pair-2-7_16-inch/pd/Tilt-Window-Replacement-Sash-Pivot-Bars/26-175

If you are looking for a different pivot bar, take some photos and submit them here for us to research.
