Certainteed Tilt Window

Quick Learner from Kill Devil Hills NC

Jul 10, 2019 11:16 am

Certainteed vinyl tilt window installed in 1998, no markings or numbers - need correct left and right pivot bar

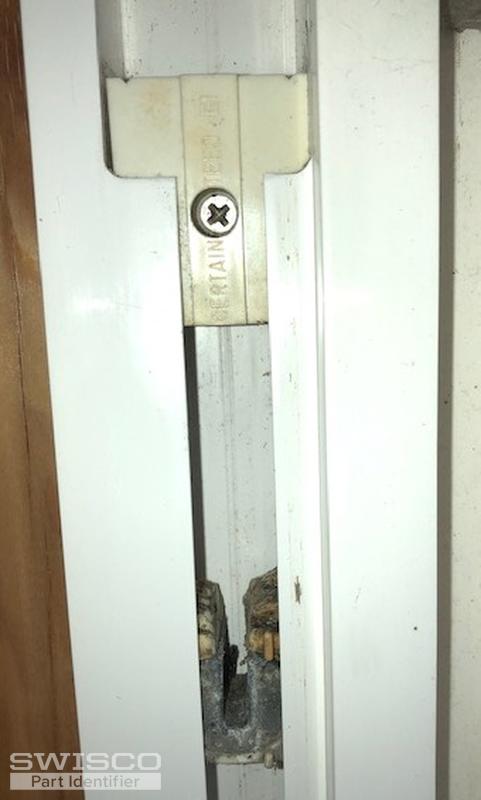

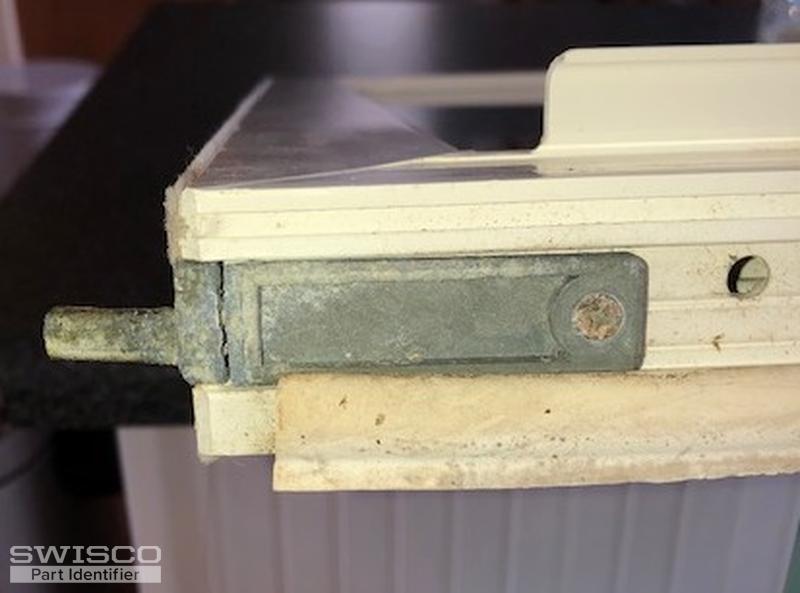

Ordered replacement pivot bars (order #1230689). They were not the correct ones. Everything was correct except the size of pin that goes into bracket in window track. Photo 0317 shows difference in size of pin. Photo 0320 has measurements of pin for broken one. Photo 0321 shows original pivot bar installed on window. Photo 0325 shows window track. Photo 0319 shows original pivot bar on right and replacement pivot bar Swisco sent on left.

Thank you, I hope you can help me find correct part.

Tim

5 user uploaded images

6 Replies

Bob from SWISCO

Jul 17, 2019 8:45 am

Hi Tim. Hm, this is a little odd to me. I know for a fact that the 26-175 is meant to replace this older pivot bar. It was designed by Certainteed for this very purpose. Can you go into a little more detail about why it didn't work? What about the pin prevented it from fitting into the cam? While the shape is different, the functionality should be the same.

Quick Learner from Kill Devil Hills NC

Jul 17, 2019 10:13 am

The pin as depicted in the photographs is too wide too fit in cam. If the new pin was vertical instead of horizontal it may work but I still believe once in cam it would not rotate into place because of width. I'm not sure the windows are 1998, the house was remodeled in 2015 and they could be from then. Sorry for confusion. Everything else about replacement part is correct except the pin itself.

Thank you for all your help

Bob from SWISCO

Jul 17, 2019 12:59 pm

Thanks for getting back to me. Let me clarify something: the pin of the pivot bar does not rotate within the cam. Rather, the whole cam rotates during the tilting of the window. Now, we have tested the 26-175 to replace this very pivot bar; it works. Indeed, we're even going to have a video about it within the next month that further illustrates this. To get to the point, I am confident this should work for you, and the cam will rotate just fine with this different-sized pin.

Quick Learner from Kill Devil Hills NC

Jul 17, 2019 2:12 pm

I'll try it but the inside of the cam does not look like it will spread or rotate. Thanks I will try and get back to you.

Tom from SWISCO

Jul 17, 2019 2:54 pm

Your pivot shoe cam should rotate. That's their entire function. When you take the sash out, the cam rotates to the vertical "U" position, like yours is now. This spreads the shoe in the track and locks it in place, allowing the shoe to remain stationary while still under pressure by the balances. Without being locked in place, it would shoot up the track and hit the springs the second you take the sash out.

This wouldn't be possible if the pivot bar was rotating inside the cam.

When you put the sash back in and tilt it in place, the cam rotates to the horizontal "C" position. This unlocks the shoe from the track and lets it move freely. The weight of the sash prevents it from shooting up to meet the springs. This is why balances are called balances; they literally counter-balance the weight of the sash.

Bob is quite right when he describes the function of your pivot shoe and how it interacts with the 26-175. If your cam doesn't rotate as you describe, then your pivot shoe is broken and will need to be replaced. No pivot bar is meant to rotate inside the cam.
