Certianteed pivot pins

Quick Learner from Pa
May 29, 2023 10:20 am

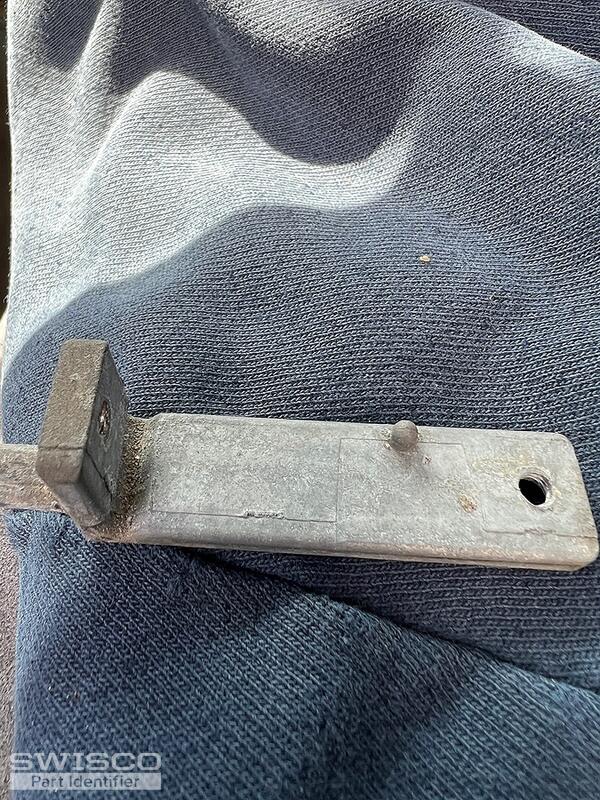

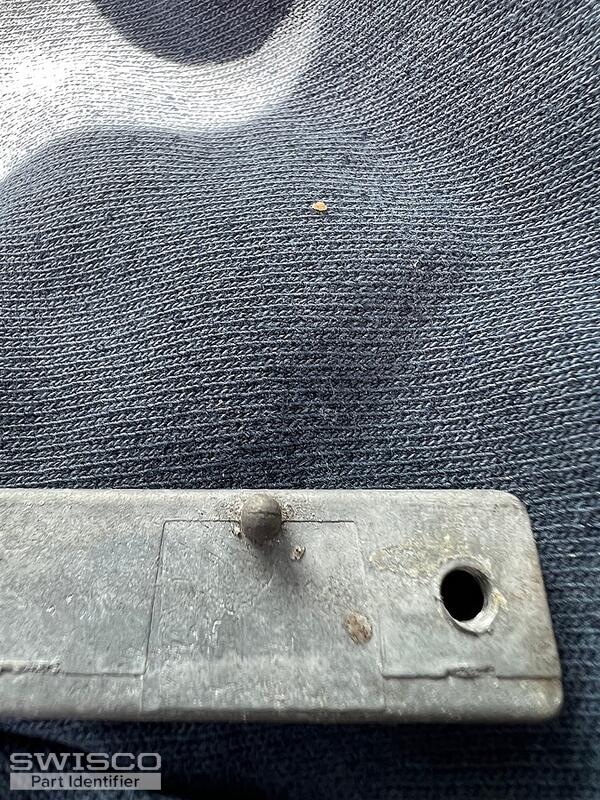

Are the 26-353 sash pivot brackets available in left-handed and right hand mine have locator pins or are the new ones without the pin

Thanks Dan

IMG_6894 IMG_6893
2 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
Jun 1, 2023 12:34 pm
SWISCO
EXPERT

Thanks for writing in! The 26-353 CertainTeed Sash Pivot Bars are not specified for right versus left. They do not have the locator pins shown on your existing hardware.

There is also the 26-175 CertainTeed Pivot Bar, pair. These are specified for the left and right side of the window and both do have locator pins.

Either of should work fine as a replacement for your existing pivot bars.

Side view of 26-353
Side view of 26-353

Detail of 26-175
Detail of 26-175
