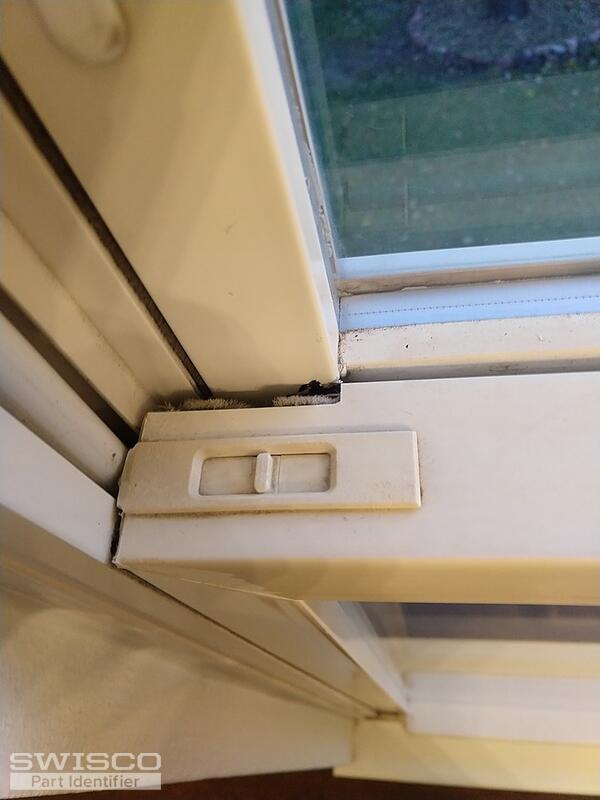

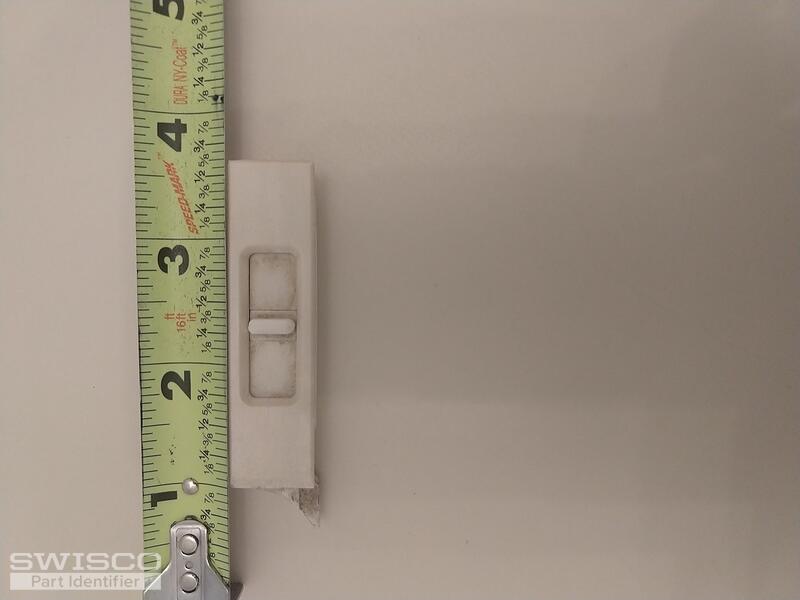

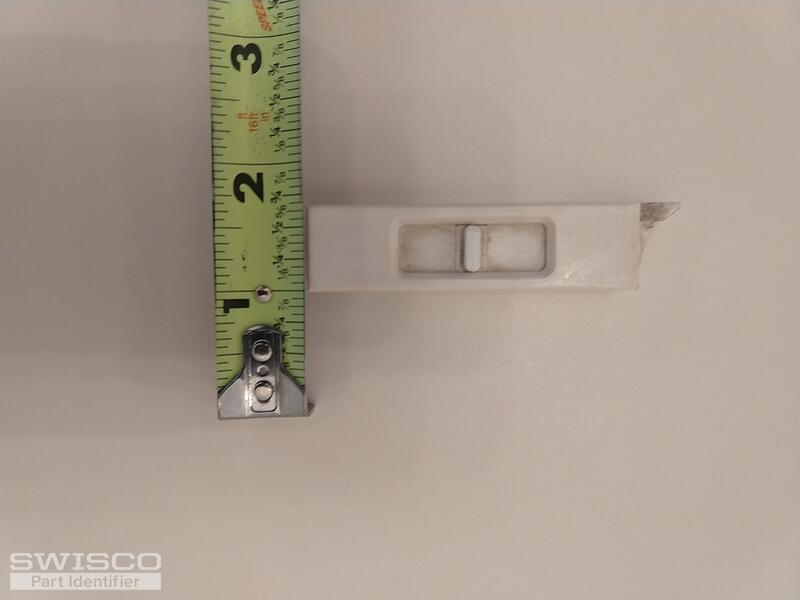

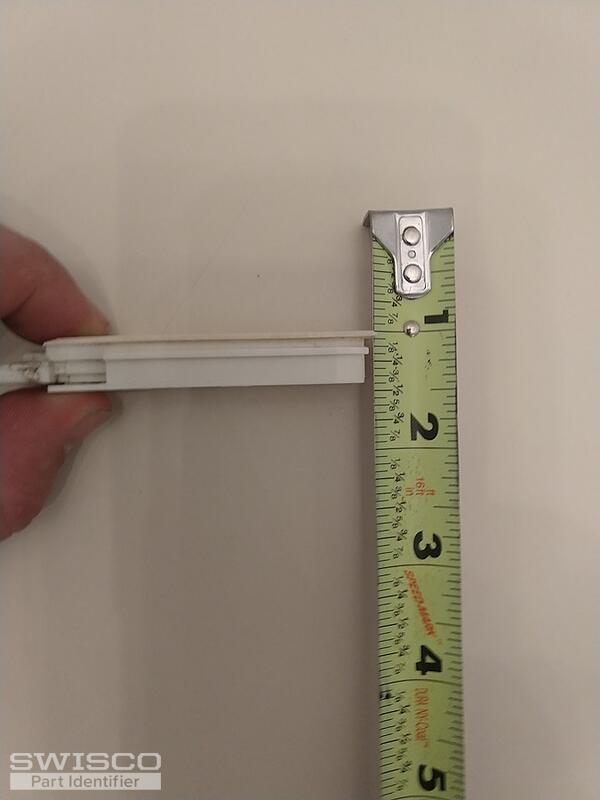

Looking for replacement tilt latches for some older Champion double hung windows. These plug into a slot in the window frame.

4 user uploaded images

4 Replies

Tom from SWISCO

Oct 27, 2022 11:43 am

Hello! This tilt latch appears to match our 26-243 and 26-244. Please look these products over and let me know if you agree!

Alternate view of 26-243

Profile view of 26-243

Quick Learner from Colorado

Oct 27, 2022 1:41 pm

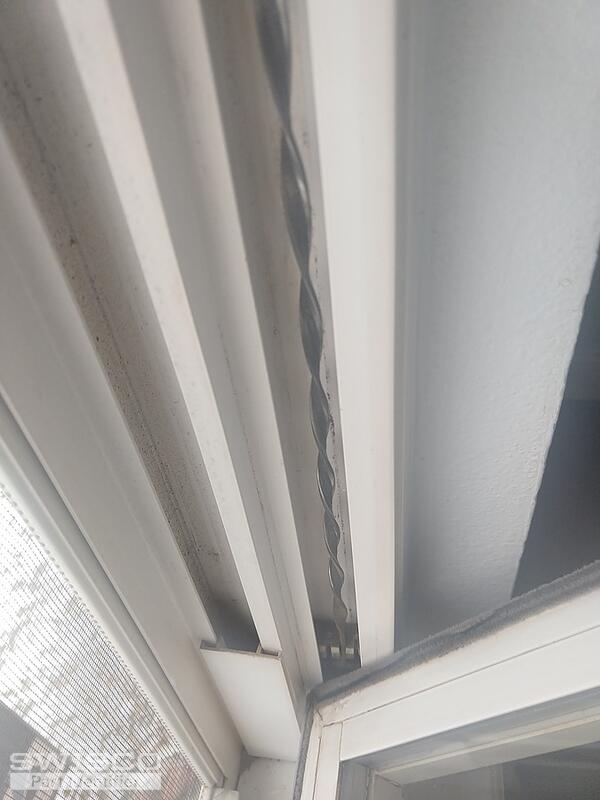

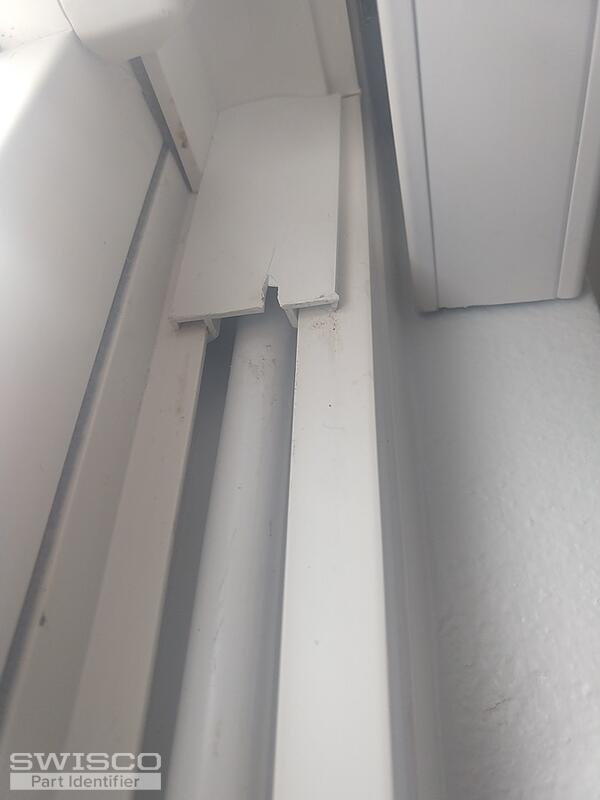

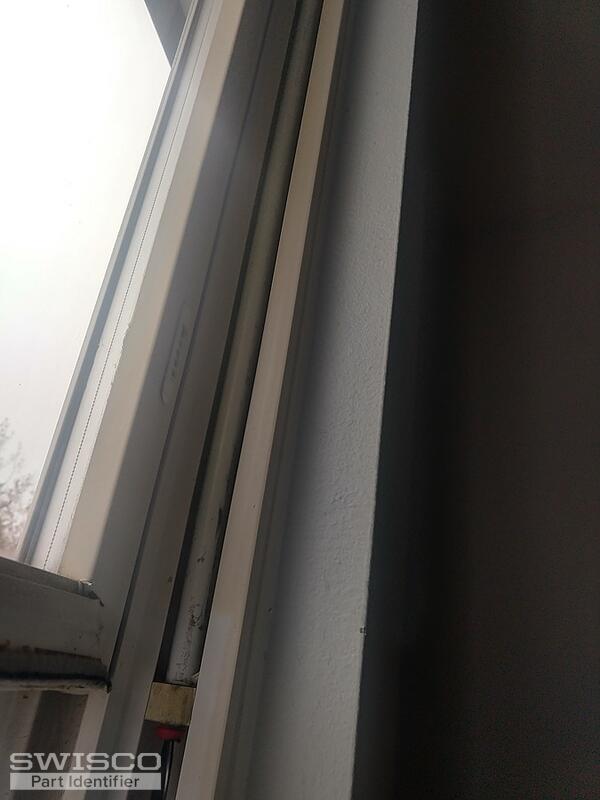

Thank you, I think those will work! Do you also have a p/n for the window balancer for same vintage of Champion double hung window? I've got a 58 3/4" tall window and the bottom panel won't stay up.

The metal tube is 28"long and 1/2" diameter.

3 user uploaded images

Tom from SWISCO

Oct 27, 2022 3:42 pm

Sure, that looks like a fairly typical spiral balance. They don't make residential models with a 1/2" diameter so I would triple check that to be sure. Odds are it's 9/16", which would make this the S600-28.
