Champion window with broken shoe
Quick Learner from New York
Sep 13, 2013 11:05 am

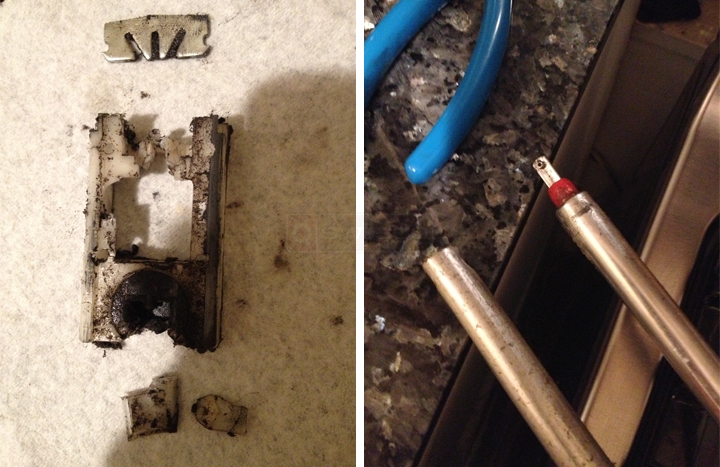

Hi! So glad to have found this site. I ordered a spiral balance charging tool from you, but after it arrived I discovered that the shoe at the bottom of the balance was completely destroyed. I managed to pull it out of its slot at the bottom of the jamb so I could take a picture of it. It measures approx 2 x 1.25 x .75 inches. The sash locks are embossed 'Champion', so I'm assuming these are Champion windows. They are aluminum replacement double hungs in a tenement building in NYC. Any chance you can identify this shoe?

4 Replies
Paul from SWISCO
Sep 18, 2013 3:14 pm
Can you confirm the thickness? .75" is very thick for a pivot shoe.
That said, I think Champion uses our 15-047 with this kind of spiral balance. Double check all your shoe dimensions and see if this might be a match.
That said, I think Champion uses our 15-047 with this kind of spiral balance. Double check all your shoe dimensions and see if this might be a match.
Quick Learner from New York
Sep 20, 2013 10:05 am
Paul,
Many thanks. I took a chance on the 15-047 last week, and it fits perfectly. I must have mis-measured the broken one.
I can't stress how much I appreciate the existence of this website. It's amazing to me that people here in NYC live with barely functioning windows for years, just for the lack of a couple of parts! Thanks to Swisco, I'm systematically tuning up all the windows in my apartment - with great results so far!
Best,
Jim
Many thanks. I took a chance on the 15-047 last week, and it fits perfectly. I must have mis-measured the broken one.
I can't stress how much I appreciate the existence of this website. It's amazing to me that people here in NYC live with barely functioning windows for years, just for the lack of a couple of parts! Thanks to Swisco, I'm systematically tuning up all the windows in my apartment - with great results so far!
Best,
Jim
Paul from SWISCO
Sep 20, 2013 10:37 am
Great news! Thanks for the kind words, Jim. I'm just happy we were able to get your windows working again.
