Chanel balamce parts/replace inquiry

Contractor from Little Rock, Arkansas
Chanel balance shoe has patent #6.598.264

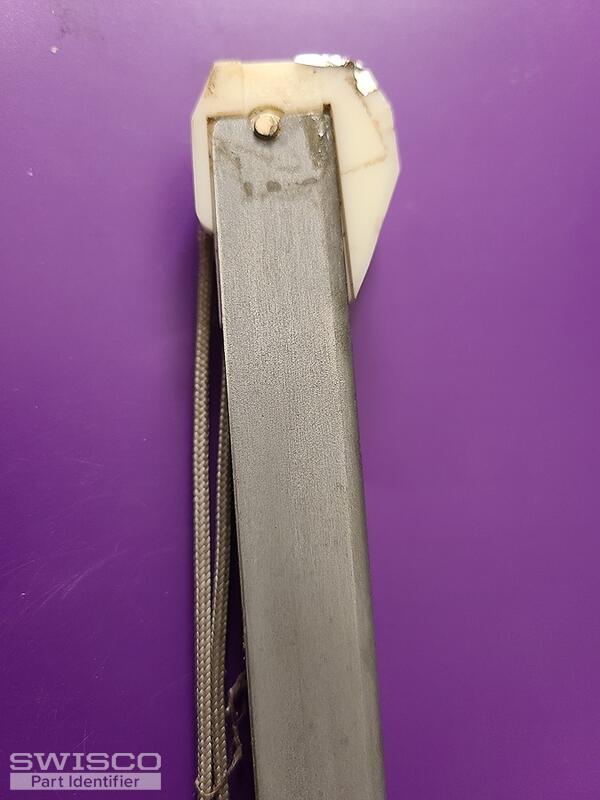

Chanel metal length only: 21 7/8
Stamped: 2130
Chanel width: 9/16

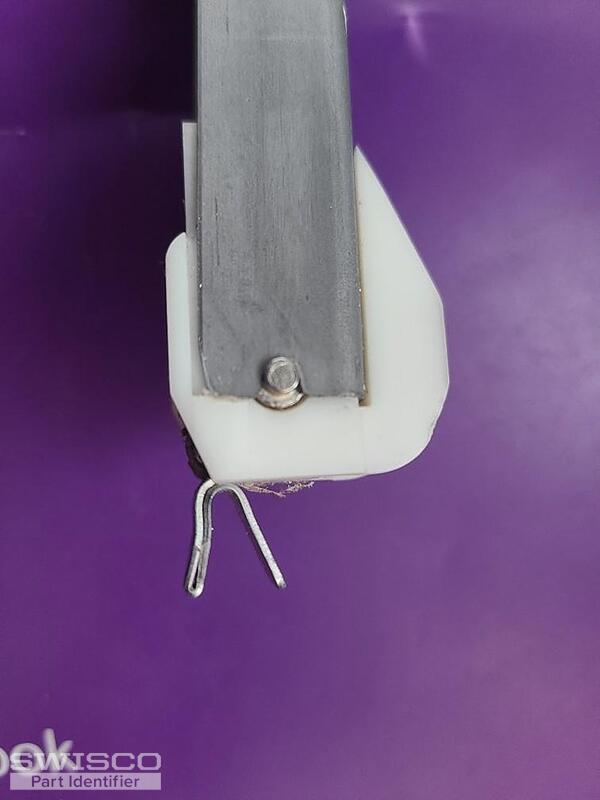

Hook is not with balance, missing/broken

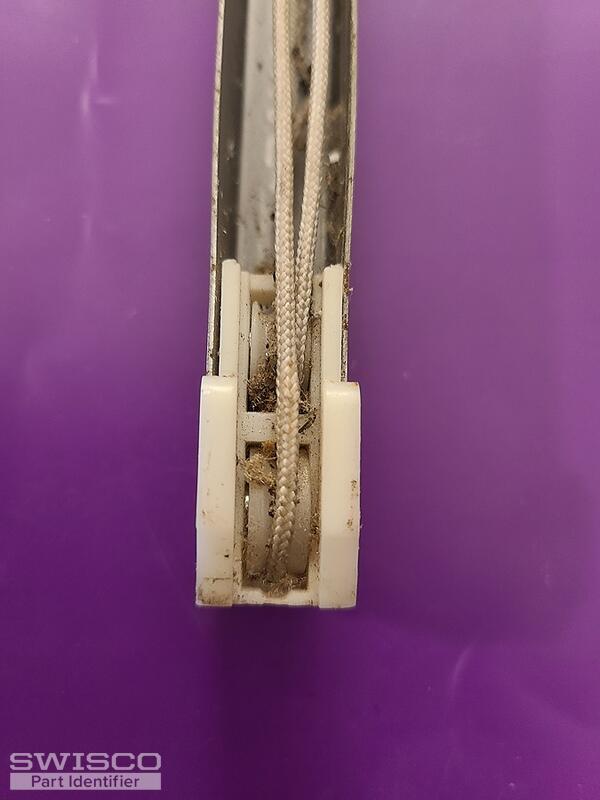

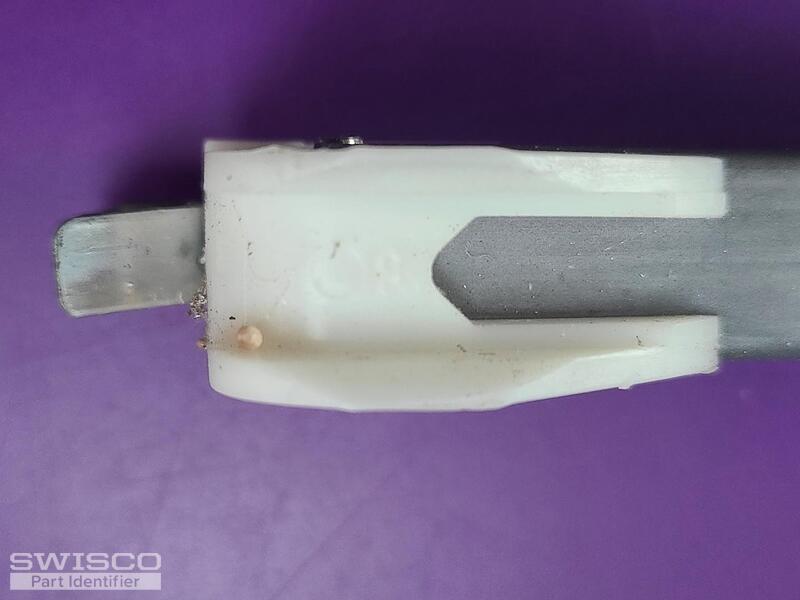

Chanel balance shoe: 1 3/8 in length,
Measured from pulley side
Manufacturer of window is unknown

Thanks in advance for any help that can be given!
5 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

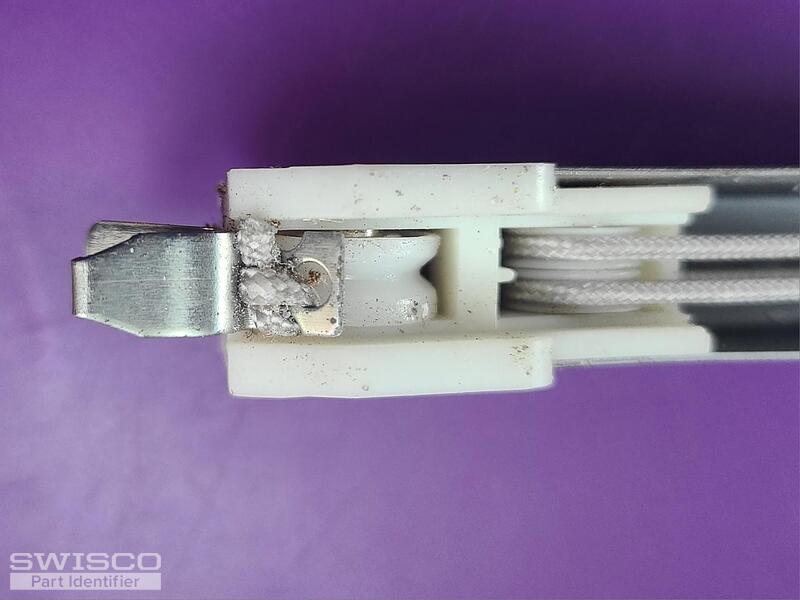

Thank you for reaching out to us. We can help supply this balance but it will have to be a custom order due to its configuration. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length of 21-7/8" which is what makes it custom. However, we won't be able to move forward without a photo of the metal hook at the end of the pulley cord. That's a very vital detail. We recommend checking the balance on the other side of the window for an intact hook.

Contractor from Little Rock, Arkansas
3 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Great, thank you! I have all the details I need so what I will do now is email you a purchase link and price quote for (2) balances that you can use to place an order on our website. Please note, there is a 5-6 business week lead time.
