Chanel balance

A quick learner from Florida says:

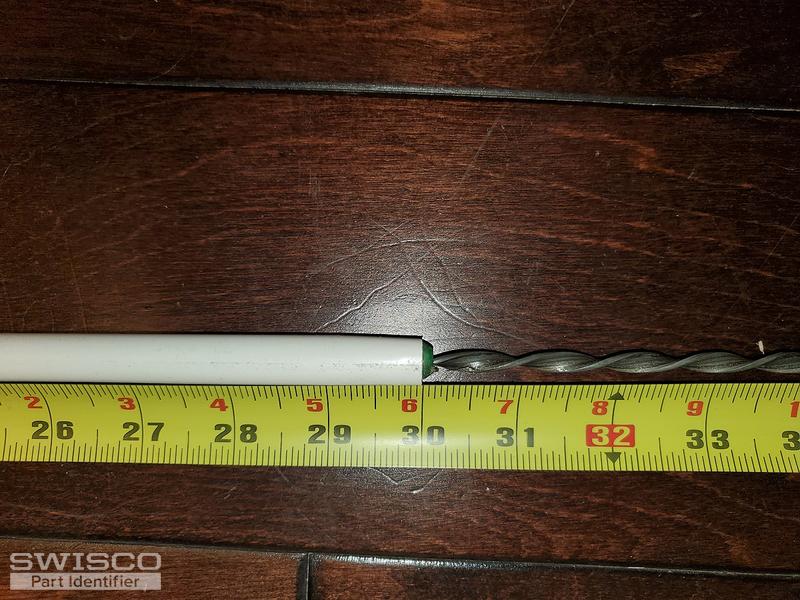

30 inch long case white, 1/2 wide, green tip.
Thumbnail of the uploaded file named 20191209_045116.jpg
Thumbnail of the uploaded file named 20191209_044942.jpg
Thumbnail of the uploaded file named 20191209_044903.jpg
Thumbnail of the uploaded file named 20191209_045123.jpg
A quick learner from Florida says:
Weight of sash is 35lbs.
Profile picture of Paul
Paul from SWISCO responded:

Thanks for writing in. Looks like you have a Series 600 Spiral Balance for tilt windows. These older spiral balances have a white plastic covering; note that our Series 600 will have a metal casing. Our Series 600 balance does not come in green tip and I suspect your balance's tip color was has simply has faded from time. Our S600-30 Black Tip balance will support a window sash in the weight range of 31 through 40 lbs, and thus support a window sash that weighs exactly 35 lbs.
