Change from Anderson mortise to Pella mortise

A handy person from York PA says:
Anderson storm door mortise is worn. Want to change to a Pella mortise 40-191 with 40-191S strike plate.
Need an measurement sheet or drowaing of the 40-191 with full lenght, hole distances, width, back set of handle etc. to compare fitment.
Pls support.
Thanks
Profile picture of Casey
Casey from SWISCO responded:

Hi there, let me know if there are any dimensions not included below that you would like.

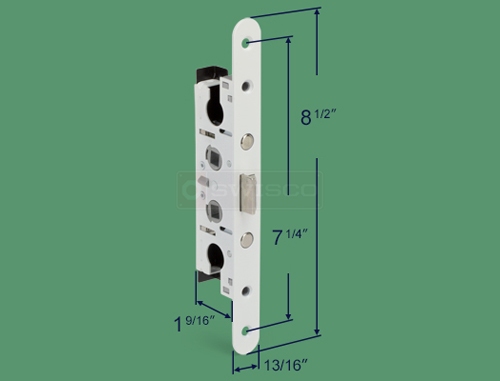

40-191
A handy person from York PA says:
Whats the backset of the handle/deadbolt knob lock from the front?
What are the measurements of the two lock pins from the bottom or the center?
How wide is the tung in the middle of the two lock pins?
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Sure thing! The backset from the face of the plate to the center of the hole is 7/8". The two pins are spaced from the bottom or top edge of the face plate to the center of the pin at 3" and the pins are 2-1/2" center locations from each other. The pin diameter is 3/8". Let me know if you need anything else.
