Channel Balance

Quick Learner

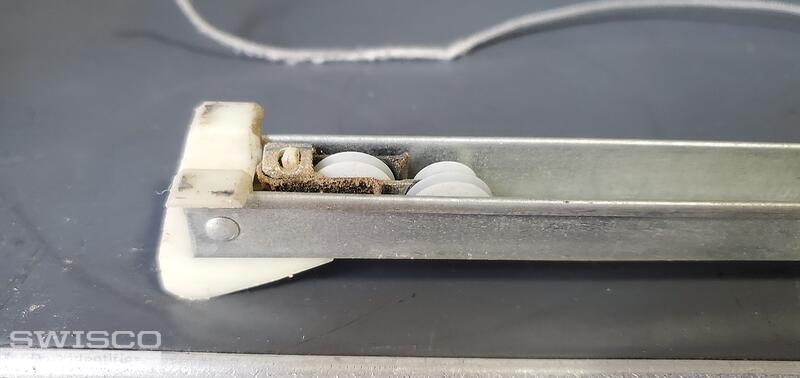

30inches, stamp 29 4 AV CMC 7, house built in 2002 I believe. ... Should just need quantity one depending on the price, that's all I have broken
4 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You will need a 30" balance with a 2940 stamp option. Please review and let us know if you have any additional quesitons!

Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
