Channel Balance 23-1 BV CMC 2

A home owner from California says:
Is 24 series 800 channel balance 23B correct option?

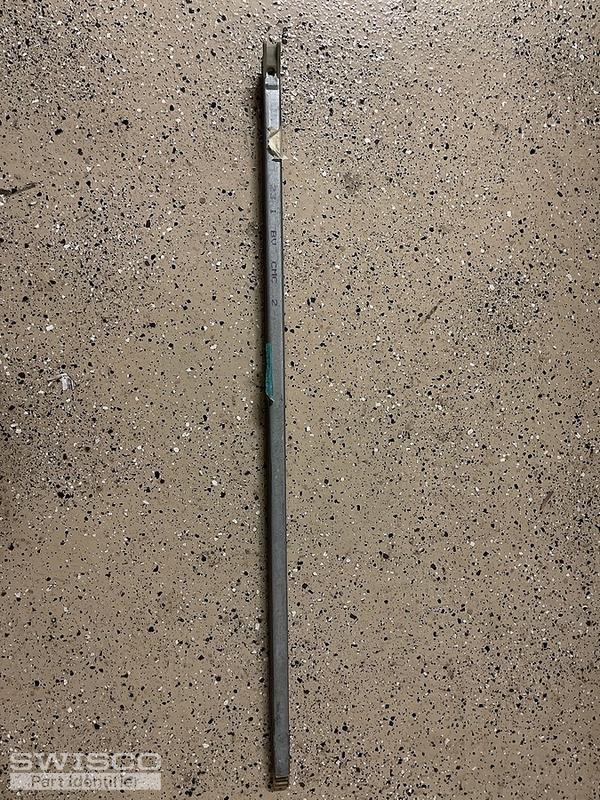

Thumbnail of the uploaded file named BE32ACF0-402C-40EE-9E50-0B8F5E15EBCB.jpeg
Thumbnail of the uploaded file named 570F8D1C-95AA-4B54-B77F-89CC21DCD46C.jpeg
Thumbnail of the uploaded file named F7F6490D-1828-4D83-B49D-3F1D8B766B82.jpeg
Thumbnail of the uploaded file named 0DA990F5-A81E-4804-87AD-5B61BB77028F.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. The metal channel on the Series 800 is 3/8" wide. Measure the width of your existing channel. I suspect it might be 1/2" instead. If so, you need either the S351-24 or S390-24 . The difference between these two balances is the depth of the bottom nylon shoe, so compare both with your old hardware to see what matches best. You will need a stamp option of 2320.
