Channel Balance 26-4 HD5 CMC 45

A quick learner from San Francisco says:
Good Day, I'm in need of a set of Channel Balances for a Milgard window. It's 27" long, not including the plastic ends. It has no stamp, but is marked "26-4 HD5 CMC 45" I've studied your catalog and can't quite match the shoe. The window was installed maybe three years ago.
The photos show the ends of the channel balance. I would also need several "pull out clips". Any assistance would be greatly appreciated.

Thank You,
Mike H.

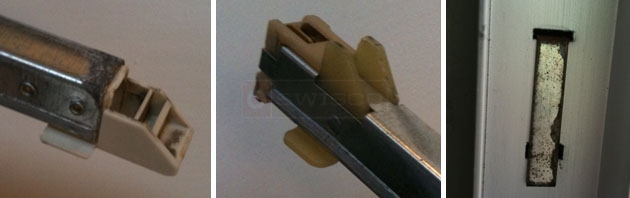

User submitted photo of their 26-4 HD5 CMC 45 channel balance.
Profile picture of Paul
Paul from SWISCO responded:
This is a very interesting shoe you have on your balance. We do not have that shoe but I believe our S385 balance series may work for you. Take a look at the pictures online of the S385 attachments 15-004 and 19-005 and see if you think the S385 would work.

If the S385 looks like a good match, order S385-27 with the 2640 option.

The take out clip is our 16-002.
A quick learner from San Francisco says:
Thanks Paul! I'll place the order...
Sincerely, Mike H.
