Channel Balance 2820 and 5/8" Top cap

Home Owner from Allentown PA

Jan 24, 2016 1:36 pm

Looking for the Channel Balance and top cap replacement.

I have soft the model S390-29 channel balance and 18044 5/8" - "Top Sash Guide, Kinco" to cap.

Not sure they will fit.

Ths
Dan

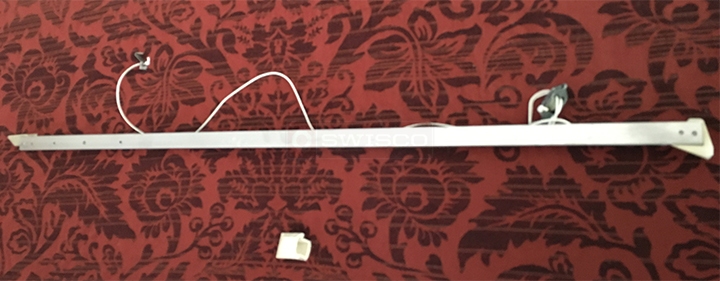

User submitted a photo of a window balance.

4 Replies

Paul from SWISCO

Jan 26, 2016 9:49 am

Thanks for posting. I agree, the Series 390 looks like a good possible match, assuming the dimensions of the nylon attachments are the same.

I'm not sure about the top sash guide, I can't make it out in your picture. Is there any way you can show me a picture of one that has been undamaged? Can you also provide your measurements?

Handy Person from Allentown

Jan 29, 2016 12:04 pm

Hi there,
Thanks for the reply.
Here is closer look picture of the top sash guide.
Unfortunately, the cover was broken into half and I only have the top part left.
But I believe the screw hole to the window is about 7/8" tall. And the cover is fit the 5/8" channel.
Can you please provide a best guess of which item I should order?

User submitted photo of their window hardware.

Paul from SWISCO

Jan 29, 2016 1:09 pm

Thank you! Take a look at our 18-032, this may be a possible match.
