Do I have the Series 377 Channel Balance?

A home owner from Florida says:
January 16, 2018

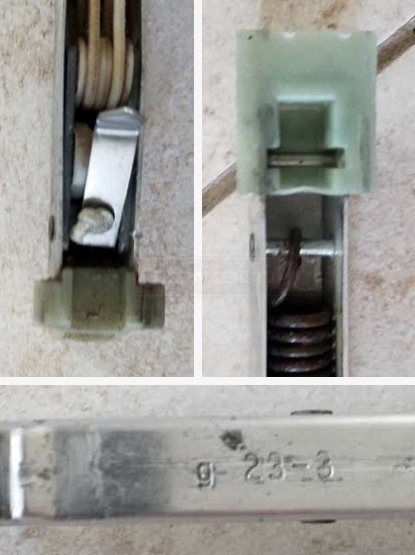

See pictures attached. The stamp state g-23-3.

Non tilt. Looks like S377 but not sure.

Thanks. Andrew
Channel Balance
Profile picture of Tom
Tom from SWISCO responded:
January 24, 2018
I agree, the Series 377 looks close. This comes with the 19-018 top and 15-005 bottom. As long as those match you should be okay. If they differ in any way, though, let me know exactly how.
A quick learner from South Florida says:
February 16, 2018
Is there any way to tell from the the picture (g-23-3) what stamp option to use? If not, what method should be used to determine stamp option?

Thanks.
Profile picture of Paul
Paul from SWISCO responded:
February 19, 2018
Yes there is. Your stamping of "23-3" should correspond to our 2330 which holds a sash weight of 15-18 pounds. If you want to be 100% certain that is correct, you can always remove your sash and weigh it on a scale to see what you come up with.
24" Series 377 Channel Balance
24" Series 377 Channel Balance
S377-24
$10.77
Channel Balance Top, Pan Am
Channel Balance Top, Pan Am
19-018
$0.92
Winged Channel Balance Shoe, 1" Depth
Winged Channel Balance Shoe, 1" Depth
15-005
$0.74
