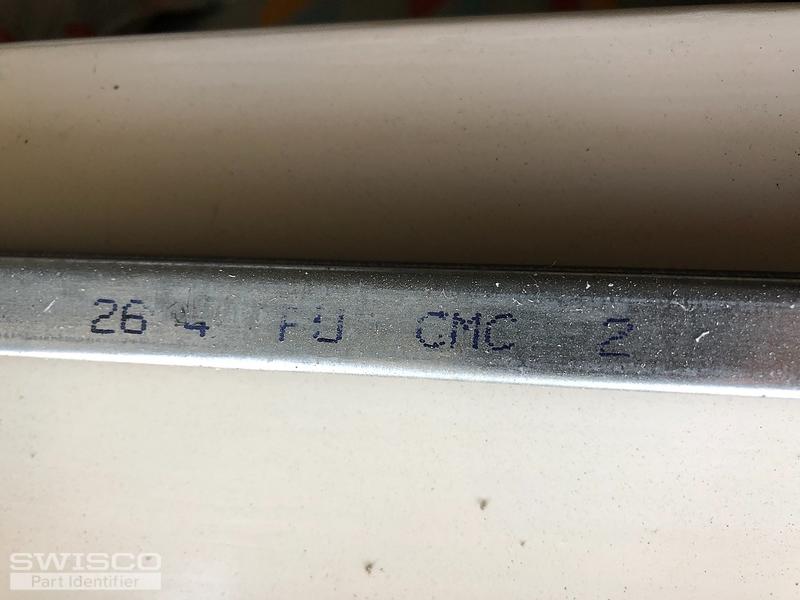

Hi I have an old channel balance with the marking of
26 4 FU CMC 2

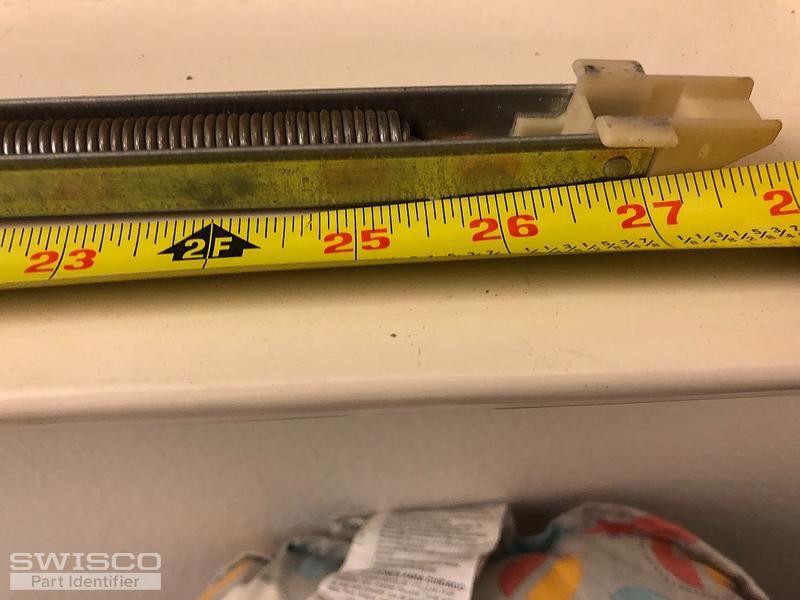

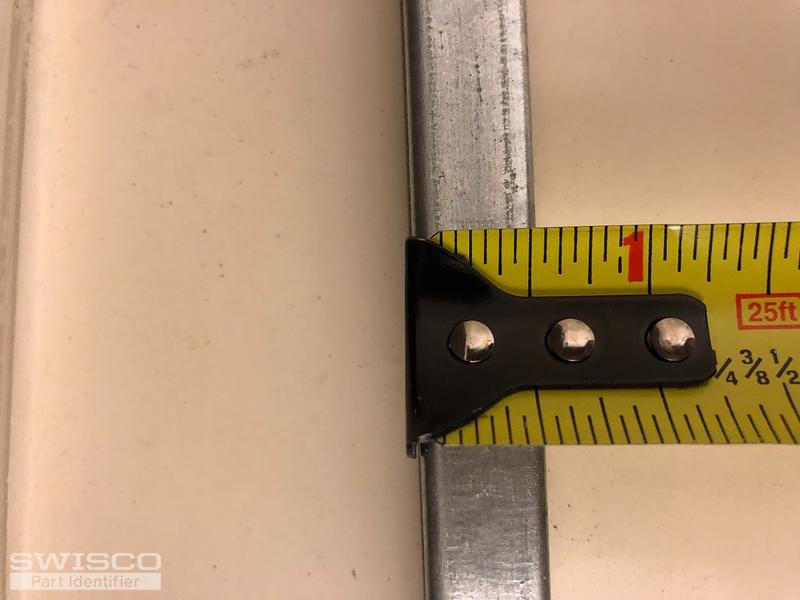

The metal part is 27" x 1/2" wide
Can you help me with the right replacement?
Channel Balance
Quick Learner from San Diego
Apr 10, 2019 11:06 pm

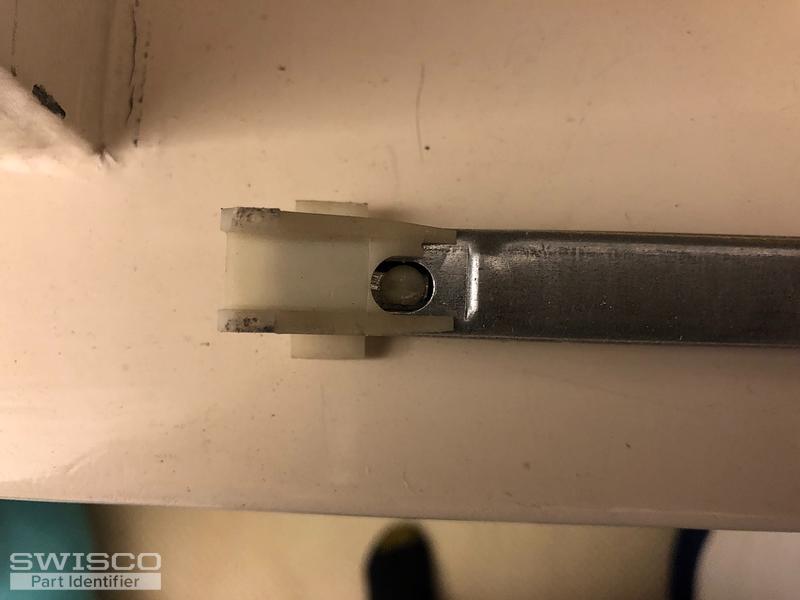

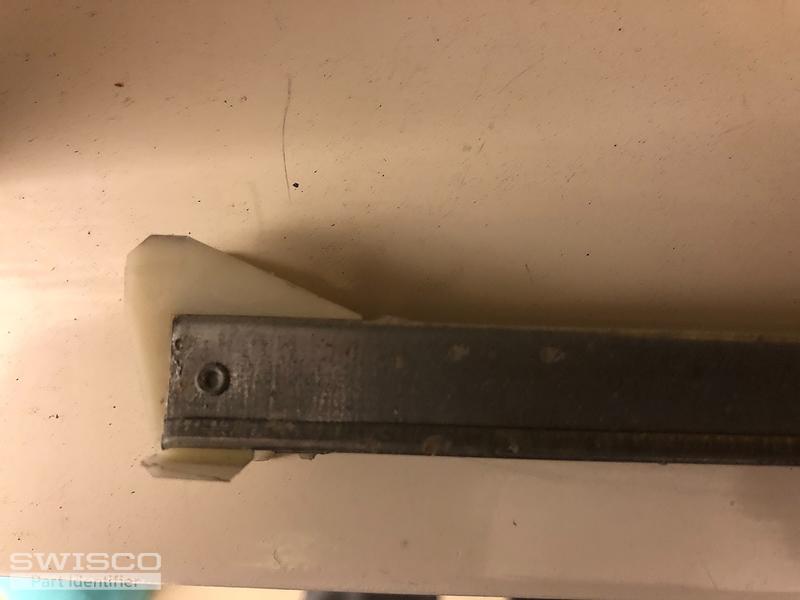

5 user uploaded images
5 Replies
Quick Learner from San Diego
Apr 10, 2019 11:07 pm
3 more pictures
3 user uploaded images
Casey from SWISCO
Apr 11, 2019 10:38 am
With this combination of attachments, you could have either a S380-27 or S385-27 channel balance. You need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 2640 spring strength option based on your stamp.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from San Diego
Apr 11, 2019 9:49 pm

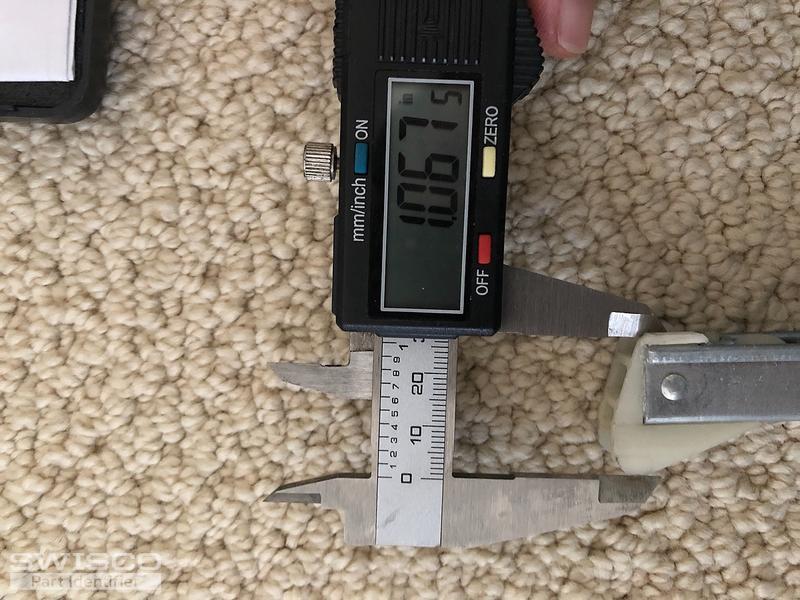

I think it's closer to S385. Can you take a look at the picture and confirm?
1 user uploaded image
Casey from SWISCO
Apr 12, 2019 9:24 am
Yep, I agree! Our Series 385 looks like our best option.
