32D - BSI - RJ Channel Balance

Handy Person from Mount Airy, NC

May 28, 2020 6:57 pm

I need 2 window balances. The numbers found on existing balance: 32D - BSI - RJ

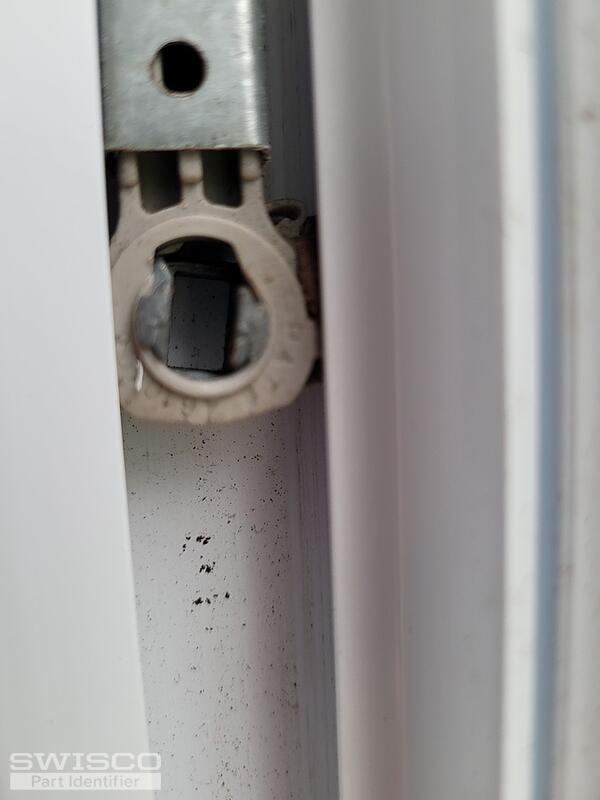

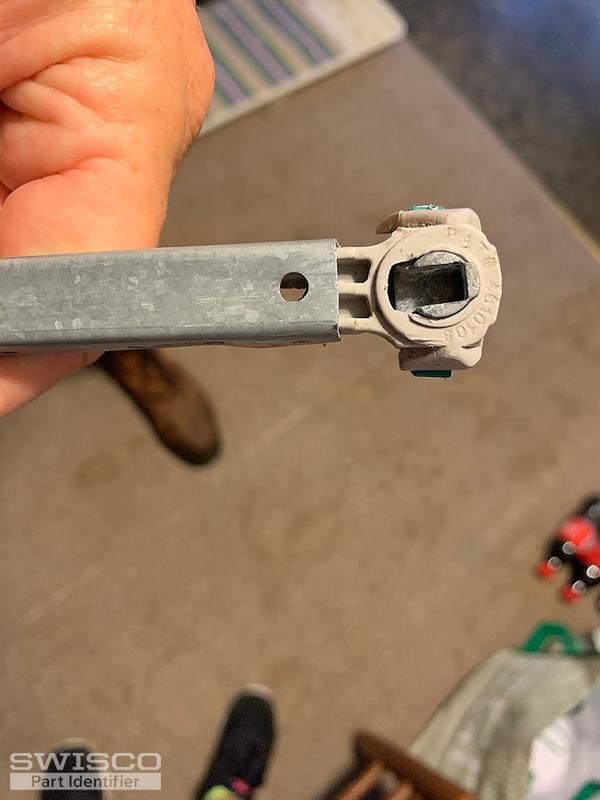

Patent 4610108 on round end piece of hardware
Has a metal hook on end of string.

4 user uploaded images

4 Replies

Tom from SWISCO

Jun 1, 2020 3:08 pm

Thanks for posting. This balance will have to be a custom order due to its configuration. Thankfully, your pictures tell me everything I need to get started. I'll email you an order link and price quote right now for two.

Handy Person from Little River, SC

Dec 8, 2021 8:05 am

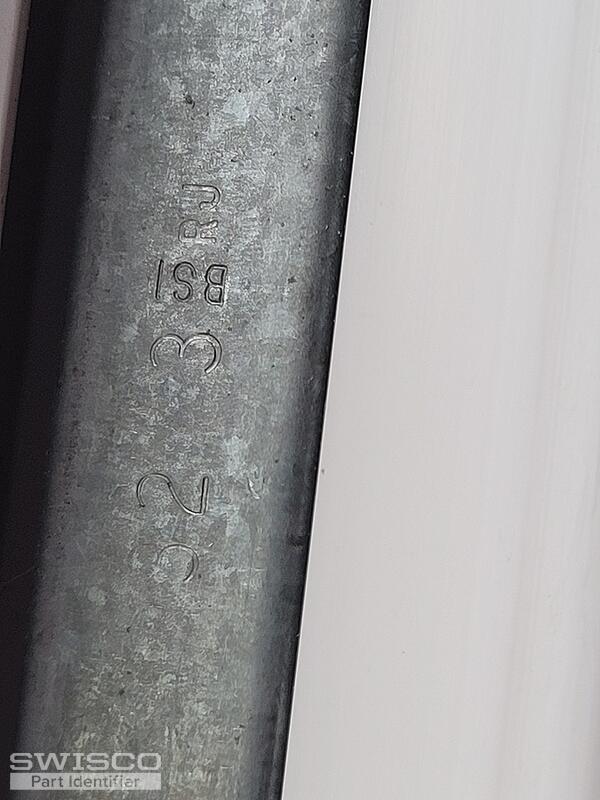

I have the same balance, but it doesn't say 32D, it says 32-3-BSI-RJ. It has the same round end of hardware. Are they different?

2 user uploaded images

Tom from SWISCO

Dec 8, 2021 10:39 am

They are different, yes. Your old stamp would correspond to our 33C stamp, which is for a 33" long balance that can support 20 through 25 pounds.

To confirm, please measure the length of your metal channel to confirm that it is, indeed, 33". I would also like you to check the width of your shoe, from "ear" to "ear." I twill be either 1" or 1-1/4". Finally, can you confirm that yours has a hook at the top instead of a screw tab?

If all that information lines up, all I need you to tell me is the quantity you wanted to purchase and we can get the ball rolling on this.
